Profix Panel Low Profile System

Profix Panel Low Profile System

Profix Panel Low Profile System

Profix Panel Low Profile System

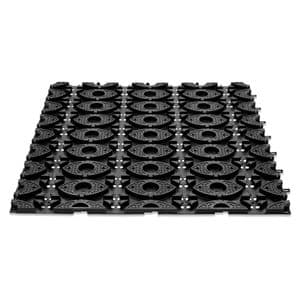

The Profix™ panel is a patented pipe retention panel designed for use with warm water underfloor heating and wall heating systems incorporating 10mm to 12mm pipe.

RRP
£7.99
Save
£1.60
Our Price
£6.39
each
inc vat
Total Price
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description

The Profix™ panel is a patented pipe retention panel designed for use with warm water underfloor heating and wall heating systems incorporating 10mm to 12mm pipe.

Made from 100% recycled plastic, the 15mm thick self-adhesive backed panels provide a fast-fix floor heating solution for both suspended timber floors and solid floors, or alternatively as a wall heating solution.

Each 600mm x 600mm x 15mm panel features multiple pipe retention clips which hold the pipe securely in place, together with purpose made locking features which fasten the panels together.

  • Multiple pipe retention clips to secure the pipe in place
  • Purpose designed supports to provide a structural key for tile adhesive and low profile screeds
  • Snap clips to fasten the panels together
  • Multiple break points with V shaped notches to aid cutting knife alignment
  • Optional high compressive strength insulation layer pre-bonded to each panel
  • Slide and lock feature to connect the panels together
  • Ultra low profile for either a 10mm or a 12mm pipe

For a 3mm covering of levelling compound on top of the Profix Panel you will require 25kg of self levelling compound for every 0.9m2 area. Meaning that for a 10m2 area you will need 277kg which equals 12 bags @ 25kgs.

Area divided by 0.9 = number of 25kg bags you will need

If using 20kg bags divide the area by 0.72 to calculate how many bags you will require.
