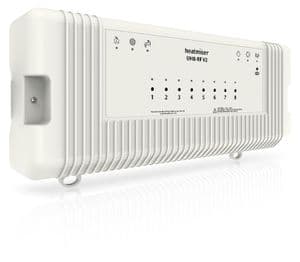

The Heatmiser UH8-RF is our 8 Zone wireless wiring centre designed to work with our Slimline-RF and neoAir Thermostats.

The UH8-RF provides central switching and is therefore ideally situated next to the underfloor heating manifold. 8 zones can be controlled as well as providing an output for a hot water cylinder.

Our Price
£151.99
each
inc vat
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description

The Heatmiser UH8-RF is our 8 Zone wireless wiring centre designed to work with our Slimline-RF and neoAir Thermostats.

The UH8-RF provides central switching and is therefore ideally situated next to the underfloor heating manifold. 8 zones can be controlled as well as providing an output for a hot water cylinder. On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers. The boiler signal can also be sent via RF to the RF Switch, providing the installer a totally wireless solution.

Up to 6 actuators can be connected to each zone. An external aerial is available for use when the UH8-RF is being mounted in a metal cupboard or when the wireless signal is restricted.

A software option in the thermostat allows you to configure which zones are underfloor heating and which zones are radiators. Radiator zones will not enable the underfloor heating pump, valve and boiler when there is a call for heat. Radiator zones should enable the boiler from the end switch of the valve.

  • Central wiring for up to 8 zones
  • DIN Rail Mounting Option (DIN Rail not included)
  • Output for underfloor heating valve and pump activated when any thermostat calls for heat
  • Wireless Fail Safe Function
  • Wireless Boiler Link (RF Switch Optional)
  • Works with our Slimline-RF and neoAir)
  • Output for multiple radiator zones
  • Output for domestic hot water
  • Actuator outputs: 230v
  • Dimensions (LxHxD) 384x148x60mm

Installation Guide

The UH8-RF can be mounted directly to a wall using four screws or alternatively, the unit can be DIN rail mounted.

When DIN Rail mounting, you first need to insert the two clips provided on the back of the UH8-RF.

  • On the back of the UH8-RF, position the clip in the middle and slide down.
  • Points A and B locate in the corresponding holes and lock into place.
  • Locate the UH8-RF onto the DIN rail from the top.
  • Pull the clip down and push the bottom of the UH8-RF onto the DIN rail.
  • Releasing the clip will lock the UH8-RF in place on the DIN rail.

To remove the UH8-RF, pull both clips down and remove from the DIN rail.
