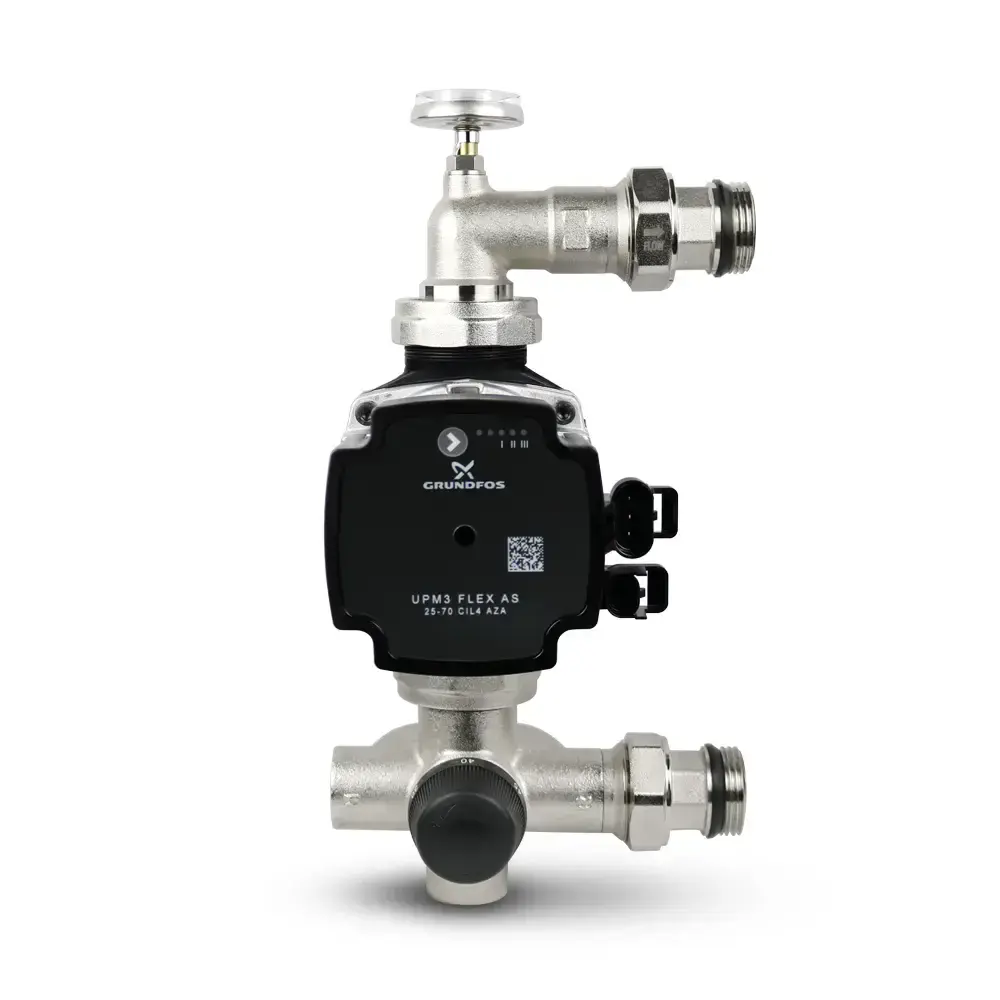

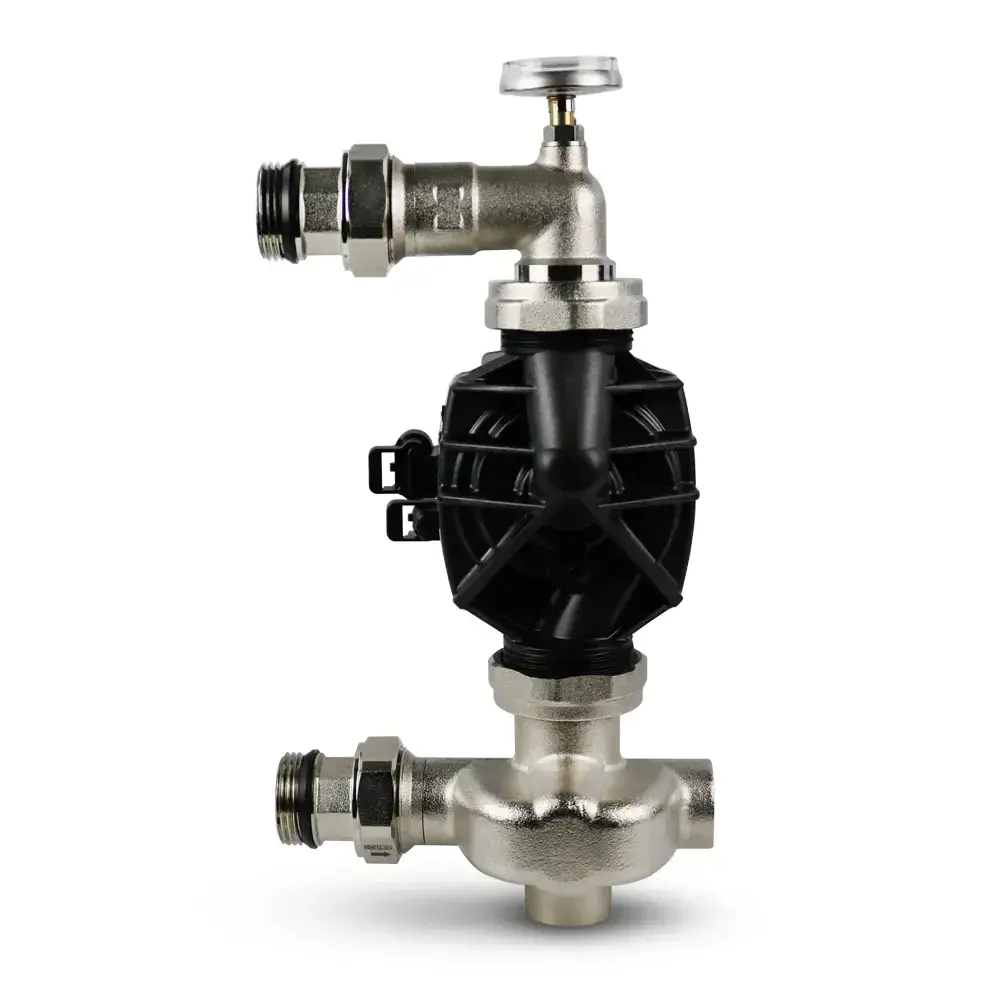

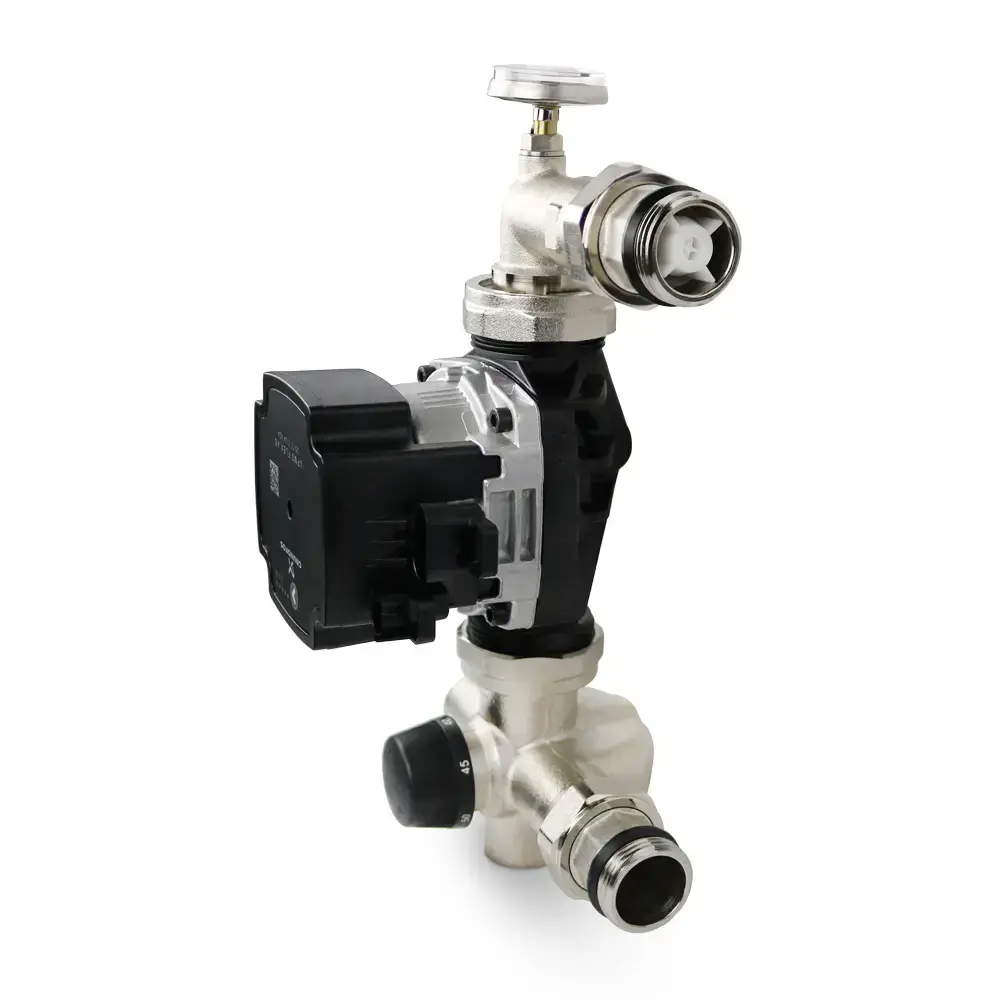

The underfloor heating manifold pump with mixing valve is a crucial component of water based underfloor heating system, designed to efficiently distribute warm water throughout the underfloor pipes while regulating temperature. This compact unit combines a Grundfos pump with a mixing valve, offering precise control over water flow and temperature adjustable from 35°c – 60°c to ensure optimal comfort levels within the living space.
The design of the underfloor heating manifold pump with mixing valve emphasizes ease of installation and maintenance. It typically features durable construction with corrosion-resistant materials to withstand the demands of continuous operation. The compact size of the unit allows for space-saving installation, making it suitable for residential and commercial applications.
The manifold pump serves as the central hub where water is circulated from the heat source, such as a boiler or a heat pump, to the underfloor heating system. It features a high-efficiency pump that operates quietly and effectively, facilitating the even distribution of heated water across the underfloor pipes. This promotes consistent warmth throughout the room, eliminating cold spots and enhancing overall comfort.
Integrated with a mixing valve, the manifold pump allows for precise temperature regulation by blending hot water from the heat source with cooler return water from the underfloor heating system. This ensures that the water supplied to the floor heating loops maintains the desired temperature, preventing overheating or underheating of the space. The mixing valve can be adjusted manually or controlled electronically, providing flexibility to adapt to changing heating requirements and environmental conditions.
Kvs Value: | 2.24m3/h |
---|---|
Temperature range: | 35°C - 55°C |
Max temperature range: | Continuously = 85°C Temporarily = 95°C |
Maximum supply pressure: | 10 Bar |
Primary connections: | 3/4" FBSP |
Manifold connections: | 1" BSPM |
