Please note - This system must be installed using Fastwarm 6mm EPS Insulation Board and HeatPak Dual Overlay.
Please note - Floor coverings used above these systems must be underfloor heating compatible and must not exceed 2.5 TOG total.
Please note - This system must not be installed in areas such as bathrooms, wetrooms or areas that may be subject to wet conditions.

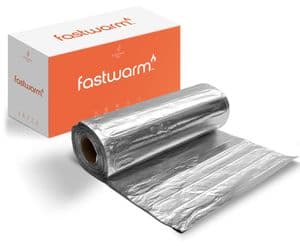

FastWarm® Under Carpet / Vinyl heating mat kits are industry leading heating systems that can be used to warm your floors. When used in conjunction with FastWarm® 6mm EPS and HeatPak Dual Overlay,

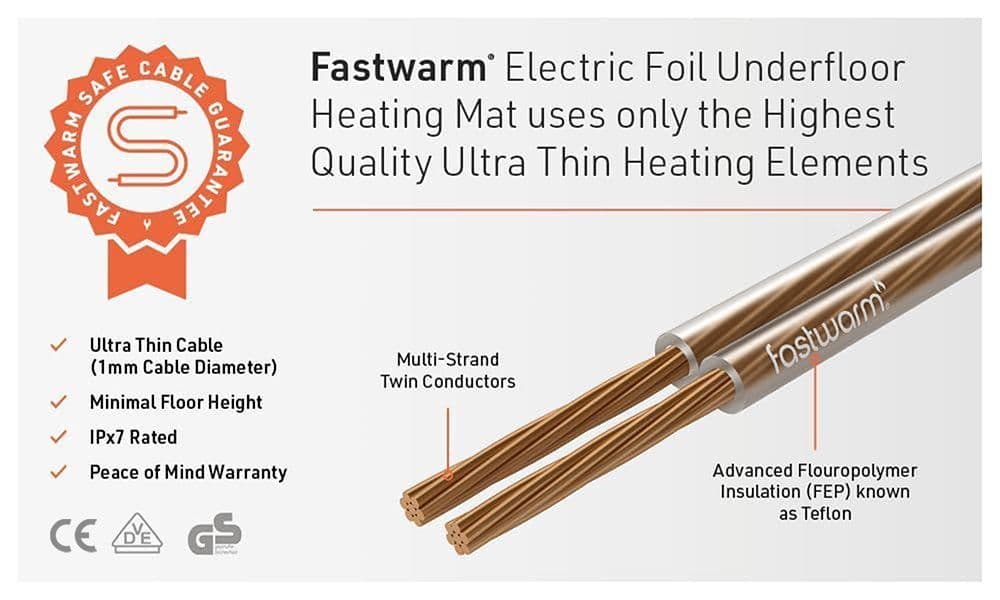

FastWarm® Under Carpet / Vinyl heating mats comprise of the thinnest 2mm fluoropolymer (Teflon) coated, dual-core resistive heating cable on the market. The cables are encased between two layers of heat reflective aluminium foil providing even heat distribution. The cables are fixed to the mat at even spacings, making fitting the FastWarm® Under Carpet / Vinyl foil heating mat suitable for any DIY enthusiast.
All electrical connections must be carried out by a qualified electrician.
- Fastwarm® high quality ETFE advanced insulation heating cables are only made with premium quality Fluoropolymer material and DO NOT contain any PVC outer sheathing whatsoever.
- Fastwarm® cables are only 2mm in thickness meaning they are one of the thinnest on the market today.
- Fastwarm® cable heating systems are constructed using a multi strand wire composite making them extremely durable and very strong
- All our mats are 500mm wide
FastWarm® under Carpet / Vinyl heating mats come with a peace of mind lifetime guarantee (50 years) as we only use the highest quality components sourced across the globe. FastWarm® heating systems do not utilise PVC as an outer coating which are an inferior casing, meaning you can rest assured that once installed, your fastwarm® underfloor heating system will last a lifetime.
Please note - electric underfloor heating elements cannot be shortened or cut, so when calculating the correct size for an area please select a cable system that only covers up to 90% of the total floor space.
- Ensure the subfloor is structurally sound and free of all dust and debris. The Fastwarm Carpet / Vinyl mat system must be used with either XPS or Classic Underlay insulation boards, please refer to their specific installation guide.
- Before laying the mat, please test the resistance values against the chart in the install guide. Please do not unroll the mat until you have carried out this test. Also check the size of the area to be heated to ensure the mat will fit. Unrolled mats cannot be returned.
- Start unrolling the mat from the fused spur/thermostat location across the room until you reach the perimeter. Then cut the mat (NOT the cable) and turn 180 degrees to allow the mat to be rolled back towards the original start position. Continue this method until the heated area is covered.
- Once the mat has been laid, carry out the resistance test again to confirm the values are the same. This ensures the cable hasn’t been damaged during installation.

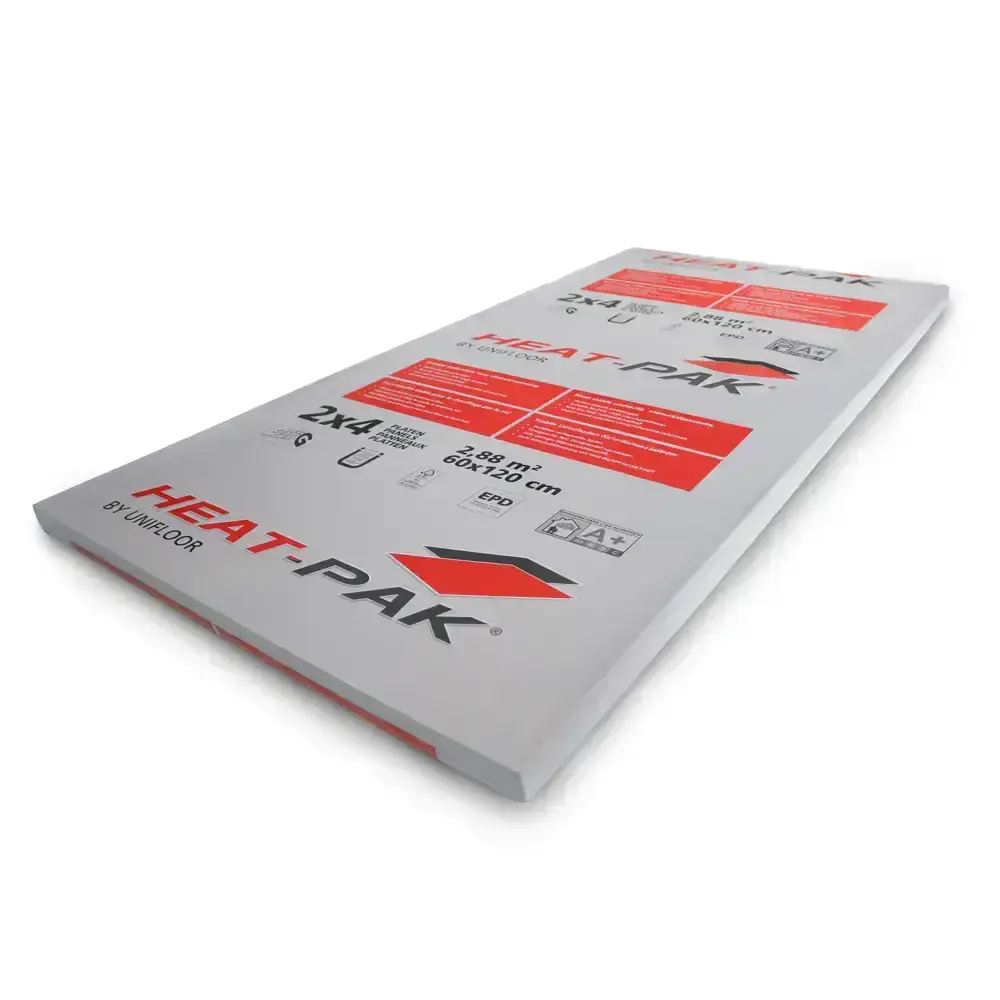

- Once these tests have been confirmed, you can install Heat Pak Dual Overlay.
Fastwarm™ Carpet / Vinyl Heating mats provide the following:
- 2mm thick cable applied within our industry leading foil matting which complies to IEC 60335 standards and is also UKCA approved.
- Evenly spaced Fluropolymer dual core heating elements which ensure consistent desired heat output.
- Fastwarm’s unique cable system incorporates a built in return which allows for a single connection to the thermostat.
- 2m flexible two core power lead (cold tail) which is surrounded by earth braiding and encapsulated in a Teflon outer sheath.
- Primary / secondary heat source when used in conjunction with sufficient insulation provides super-fast heat up times
- Compatible with any shaped floor space with the mats designed for a quick and easy installation.
Fastwarm Digital
The Fastwarm Digital Programable is a ultra-modern 7 day programmer which can be used for air, floor or air & floor.
The contemporary design offers white luminous backlight for low light areas and touch sensitive keys for that sleek feel.
- Lifetime warranty (50 years)
- Comes equipped with 3m floor sensor probe
- Fahrenheit/Celsius modes
- Adaptive start learning function
- Switched up to 3600w (16amp @ 230v AC)
- 7 day programme
| IP rating | IP21 |
|---|---|
| Max Load | 16A |
| Supply voltage | 230v |

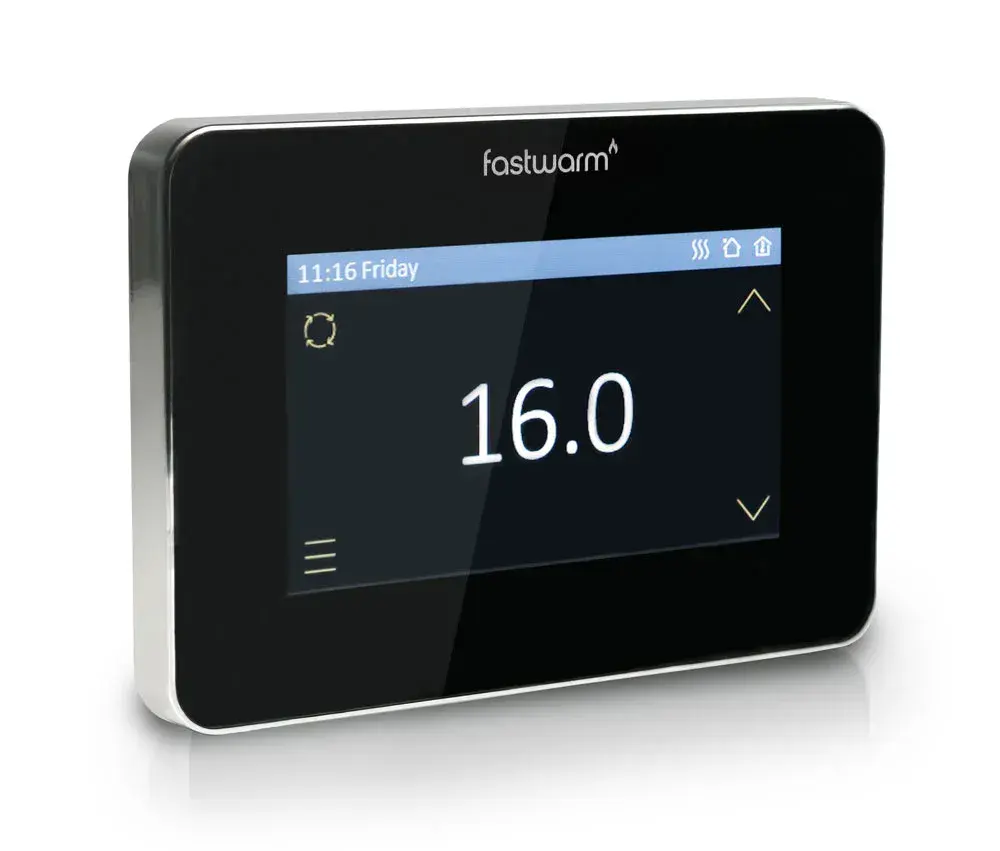

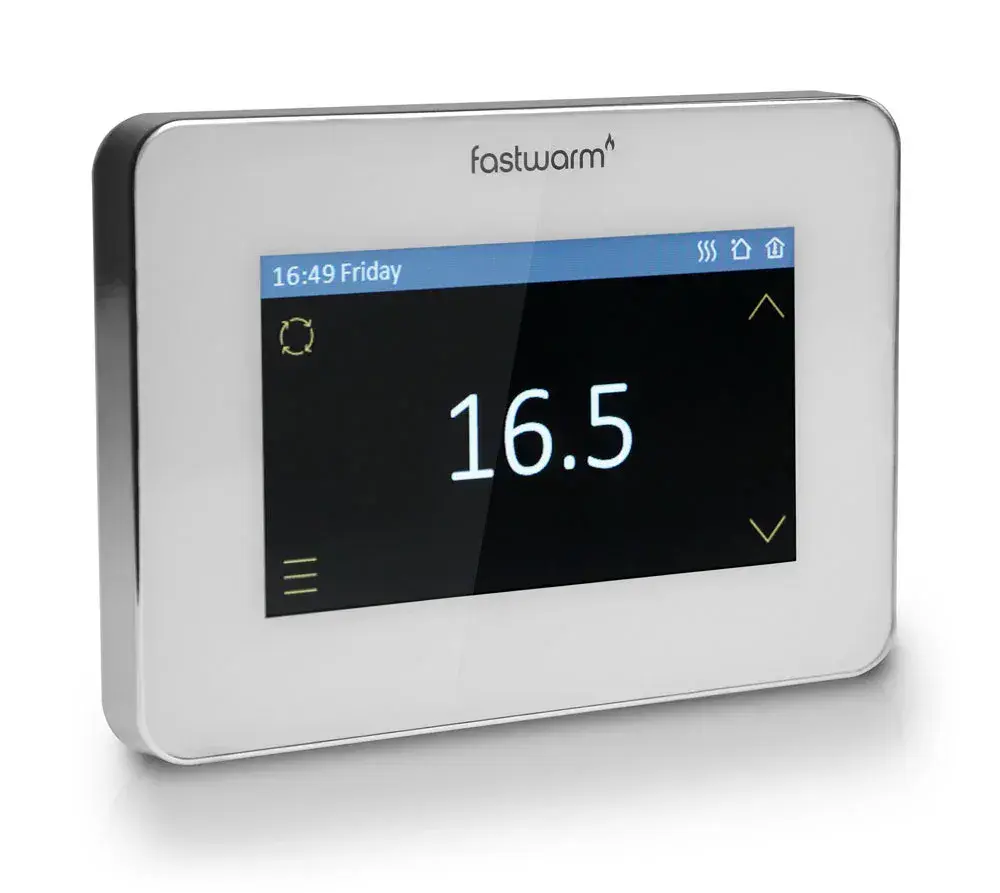

Fastwarm Touch
The Fastwarm Touch screen thermostat has an ultra-sleek, minimal design and chrome surround.
Fastwarm Touch Screen can switch up to 3600w / 16amps and comes supplied with a 3m floor sensor probe to regulate floor temp.
Available in either Black orWhite and has a full glass display with touch sensitive control.
- Supplied with a 3m floor sensor probe
- Window open detection
- Holiday setting enabled
- Can switch up to 3600w (16amps)
- Frost protection enabled
- 5/2 or 7 day program
| IP rating | IP21 |
|---|---|
| Max Load | 16A |
| Supply voltage | 230v |

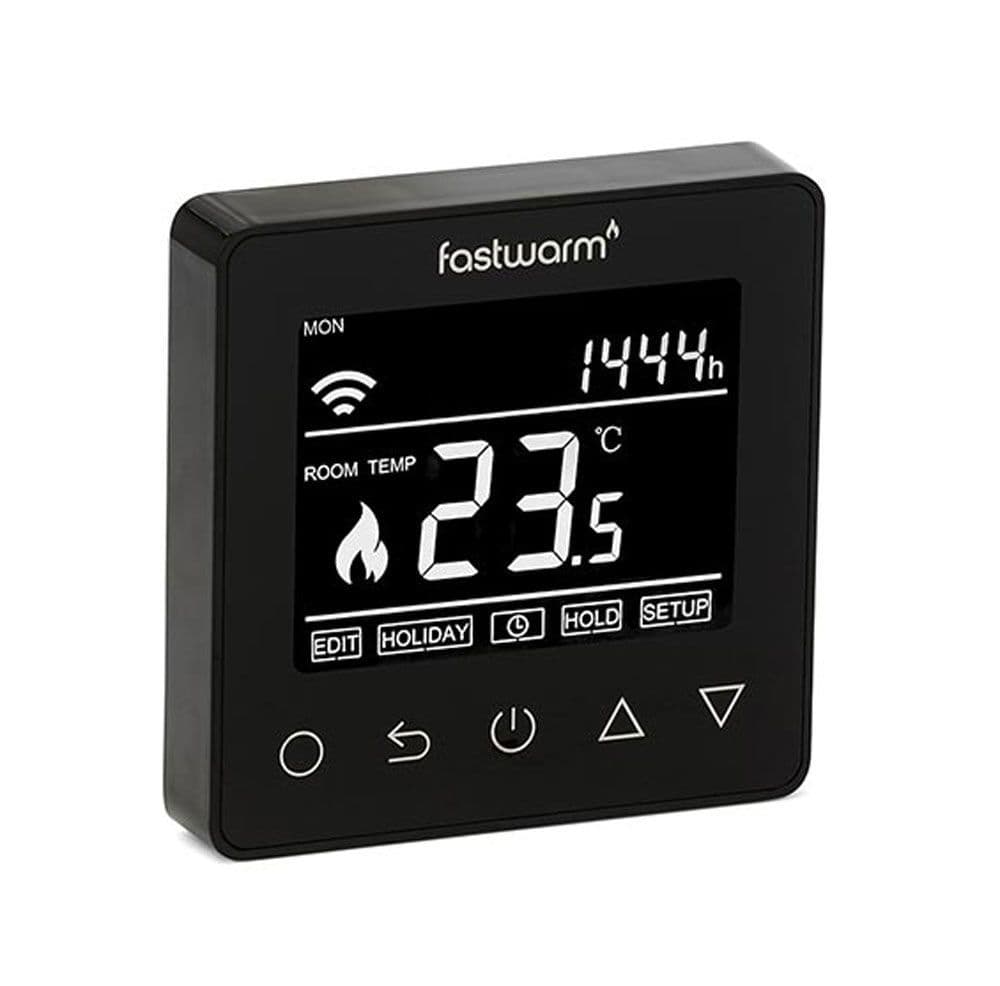

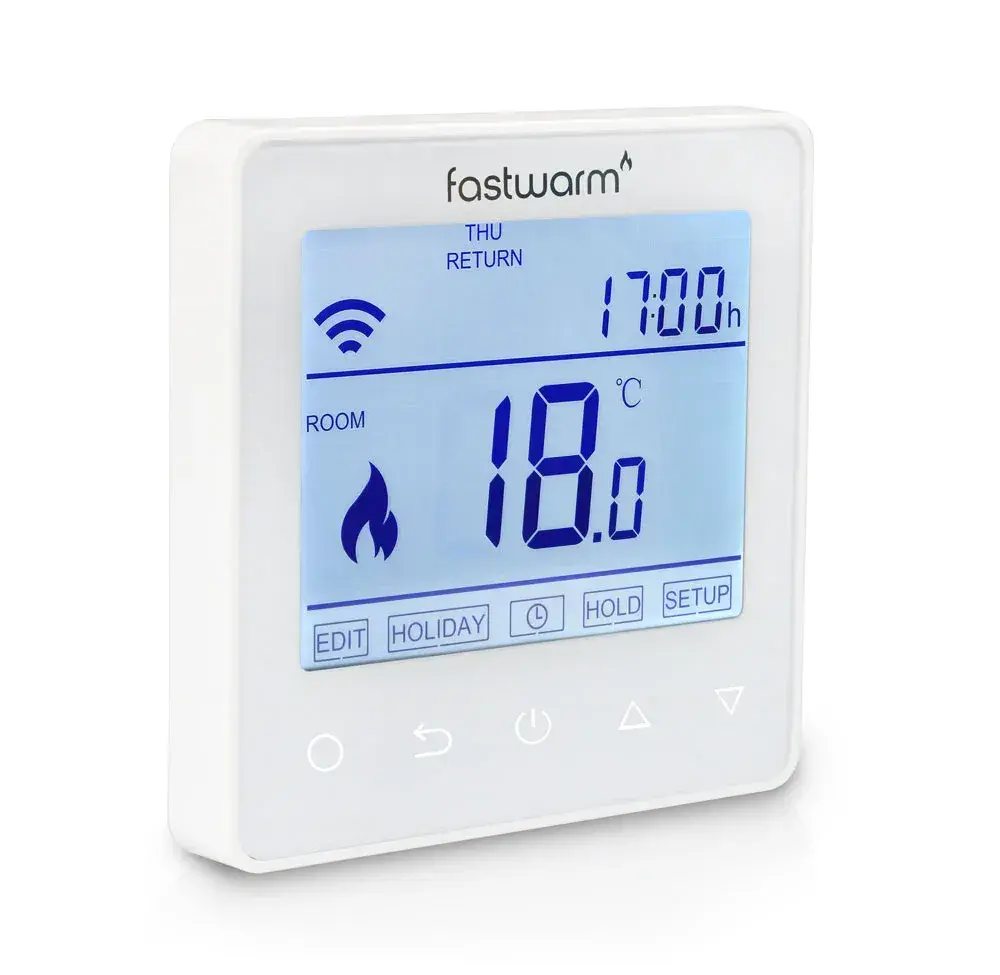

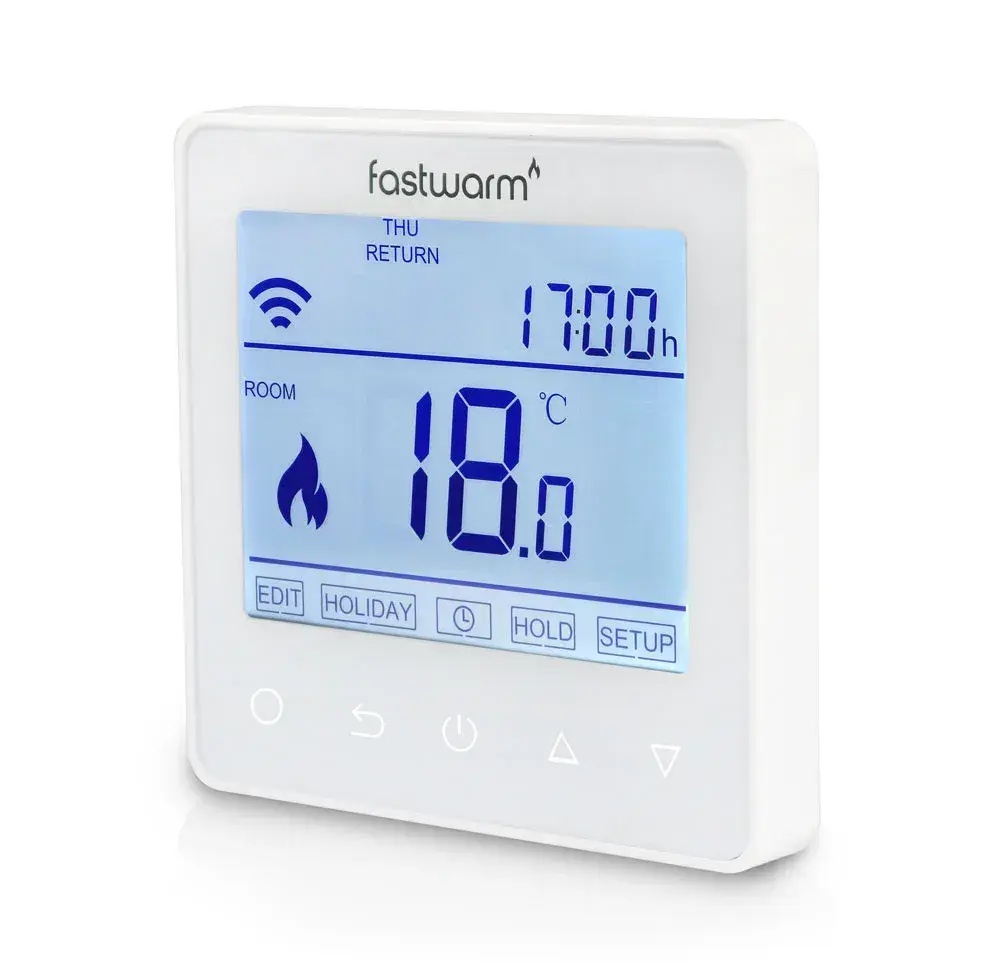

Fastwarm Wifi
The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.
This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.
Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.
- WIFI Control
- Programmable
- Professional design
- Hold function
- Floor Temperature Limitation
- Power Consumption Monitor (APP)
- Large Screen
| IP rating | IP21 |
|---|---|
| Max Load | 16A |
| Supply voltage | 230v |
