Fastwarm Touch Screen thermostat is designed for use with Electric or Water underfloor heating as it can switch up to 3600w / 16amps and comes supplied with a 3m floor sensor probe

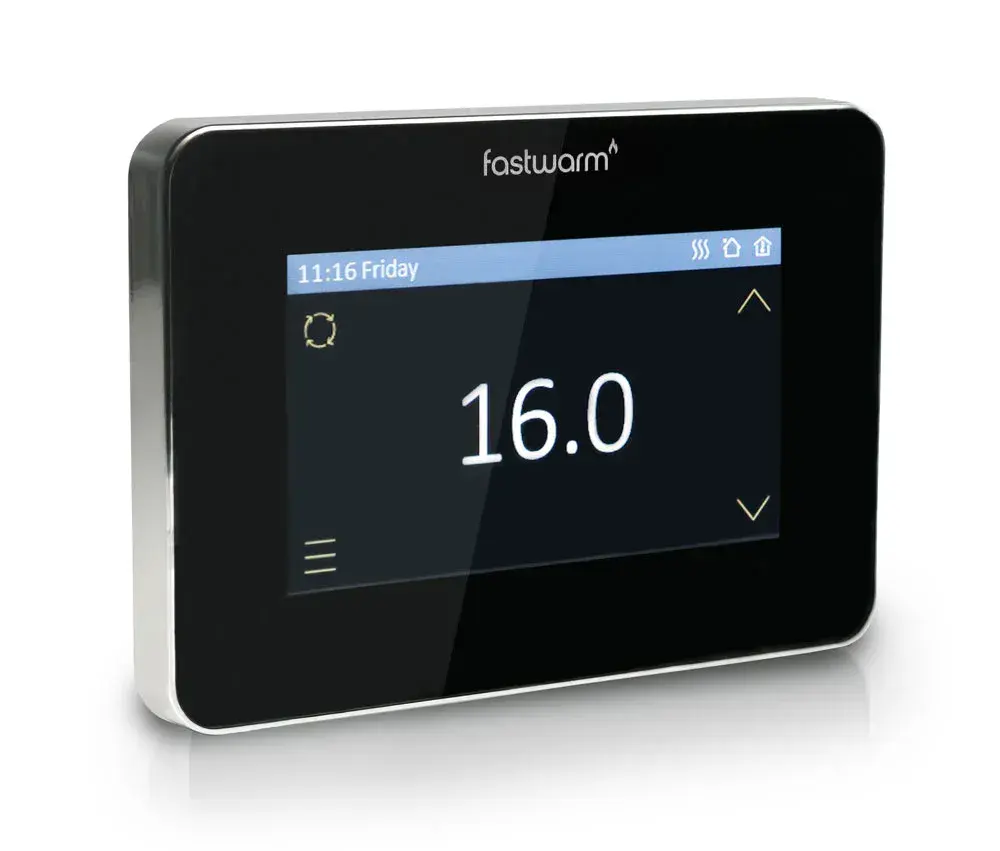

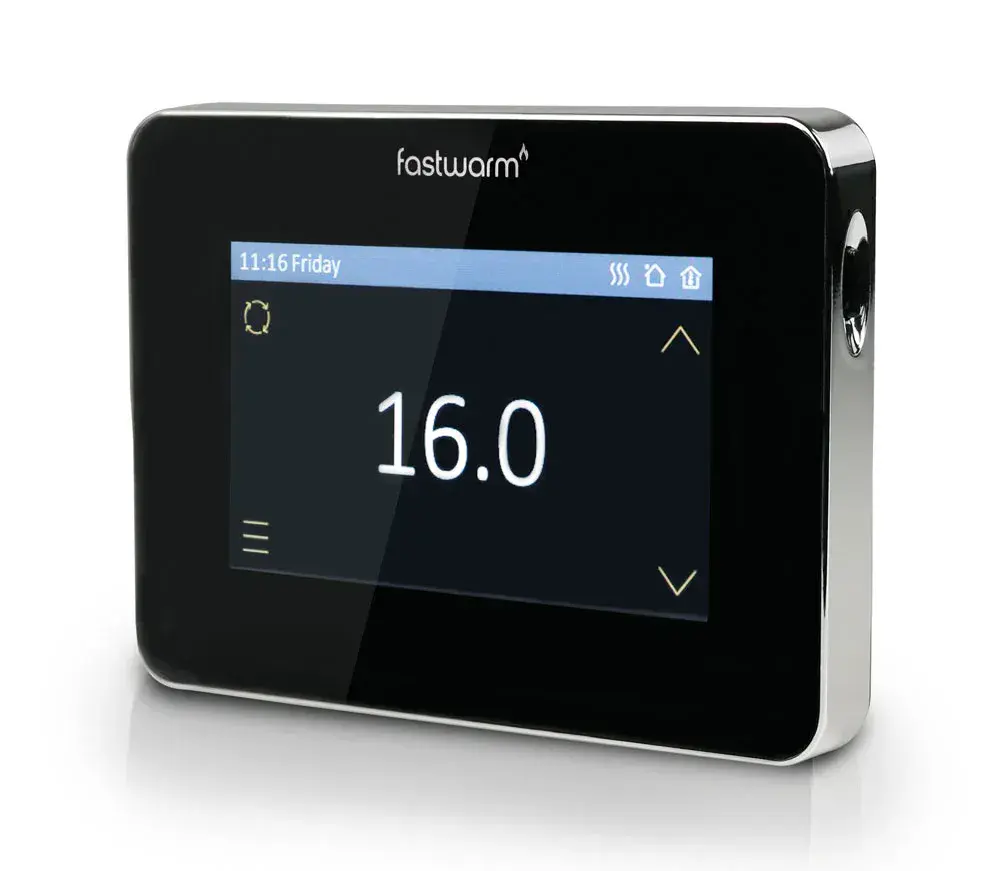

The Fastwarm Touch screen thermostat has an ultra-sleek, minimal design and chrome surround.
Available in either Piano Black or Arctic White and has a full glass display with touch sensitive control.
- Supplied with a 3m floor sensor probe
- Window open detection
- Holiday setting enabled
- Can switch up to 3600w (16amps)
- Frost protection enabled
- 5/2 or 7 day program
This thermostat switches up to 3600w / 16amp. See below for load capacity on our electric kits.
System Type | Maximum m2 | Mat/Cable quantity (Total Load) |
---|---|---|
Wood Mat (140w) | 24m2 | 2 x 12m2 Wood Mats (14.61amps) |
Loose Cable (10w per m) | 36m2 | 2 x 180m Loose Cable drums (15.65amps) |
100w Sticky Mat | 36m2 | 3 x 12m2 Sticky Mats (15.65amps) |
150w Sticky Mat | 24m2 | 2 x 12m2 Sticky Mats (15.65amps) |
200w Sticky Mat | 18m2 | 2 x 9m2 Sticky Mats (15.65amps) |
IMPORTANT: The thermostat should be mounted in a standard 86 type switch box.
- Separate the panel from the back section: insert the screwdriver into two holes under the thermostat and pry it like the picture.

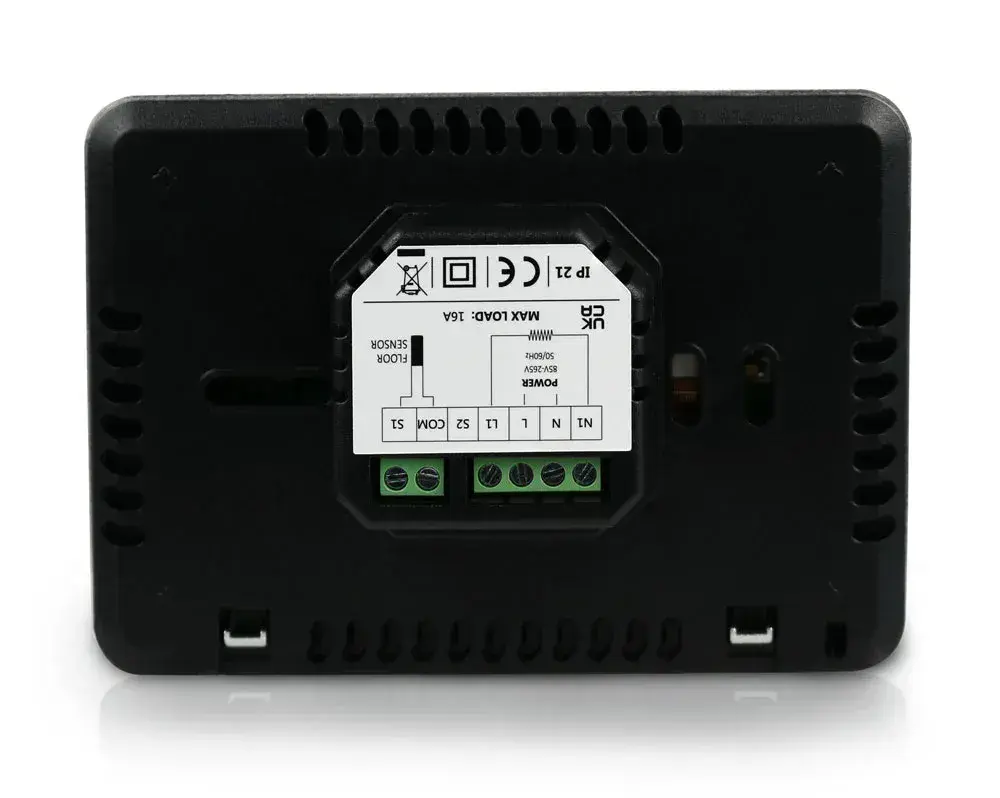

- Connect the wire as shown in the wiring instruction of the main installation manual (linked above).
- Fix the back section to switch box with screws provided.
- Re-install front panel whilst ensuring the pins engage properly in the circuit board socket.
