Upgrade your installation efficiency with Fastwarms Pre-Insulated Multi-Layer Composite Pipe (MLCP) the professional choice for both domestic and commercial projects. Designed to save time on site and cut labour costs, this high-performance pipe combines advanced insulation with robust fire safety standards, delivering reliability and peace of mind in every application.
Fastwarm® Pre-Insulated MLCP Pipe is a high-performance, pre-assembled solution designed for hot water, cold water, and heating systems. By combining a robust multilayer composite pipe with factory-applied polyethylene foam insulation, this product saves time on installation while ensuring long-term durability and energy efficiency.
Construction
- Inner Pipe (MLCP)
- The inner pipe is a multi-layer composite structure, combining plastic and aluminium for strength, flexibility, and oxygen diffusion resistance. This provides a reliable solution for both domestic and commercial installations.
- Insulation Layer
- Surrounding the pipe is a 7mm extruded, closed-cell polyethylene foam insulation. This maintains thermal efficiency, minimises heat loss, and incorporates a continuous vapour barrier to prevent condensation.
- Protective Foil
- The insulation is finished with a durable PE-LD foil, improving mechanical protection and ensuring long-lasting performance.
Key Features and Benefits
- Pre-Insulated: No need for additional lagging, saving time and labour costs.
- Fire Resistant: Meets EN 14313 standards, with insulation rated BL-S2-D0 and full assembly Class E to BS EN 13501-1.
- Thermal Efficiency: = 0.040 W/m·K insulation delivers reliable heat retention.
- Versatile Applications: Suitable for hot water, cold water, and high-temperature radiator systems.
- Reduced Joints: Long coils (up to 100m) allow joint-free installations, reducing leak risk.

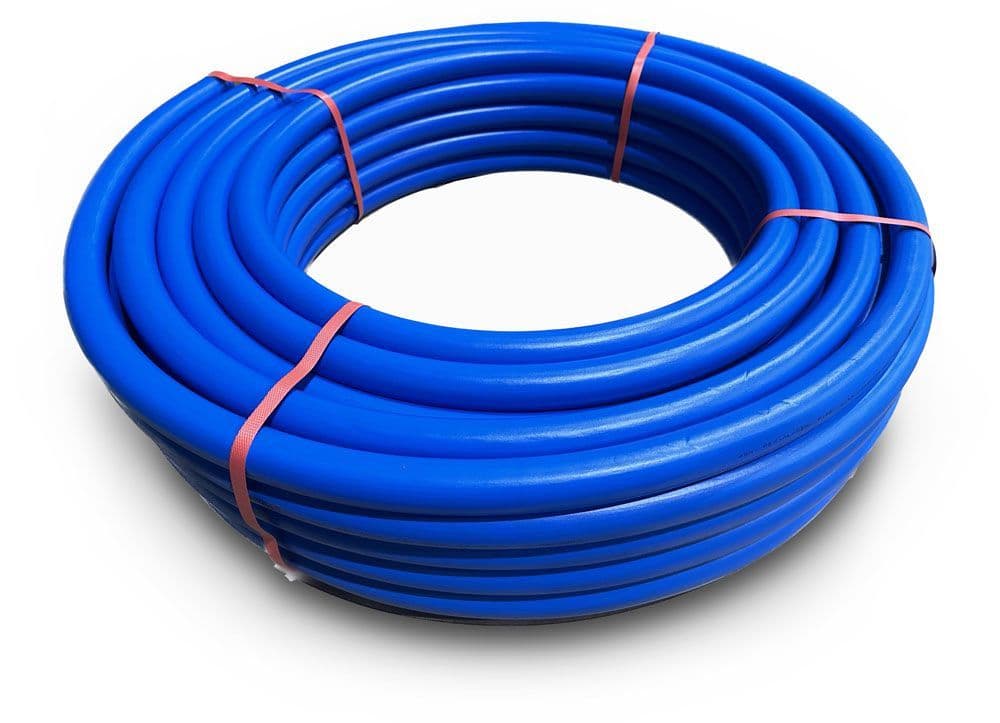

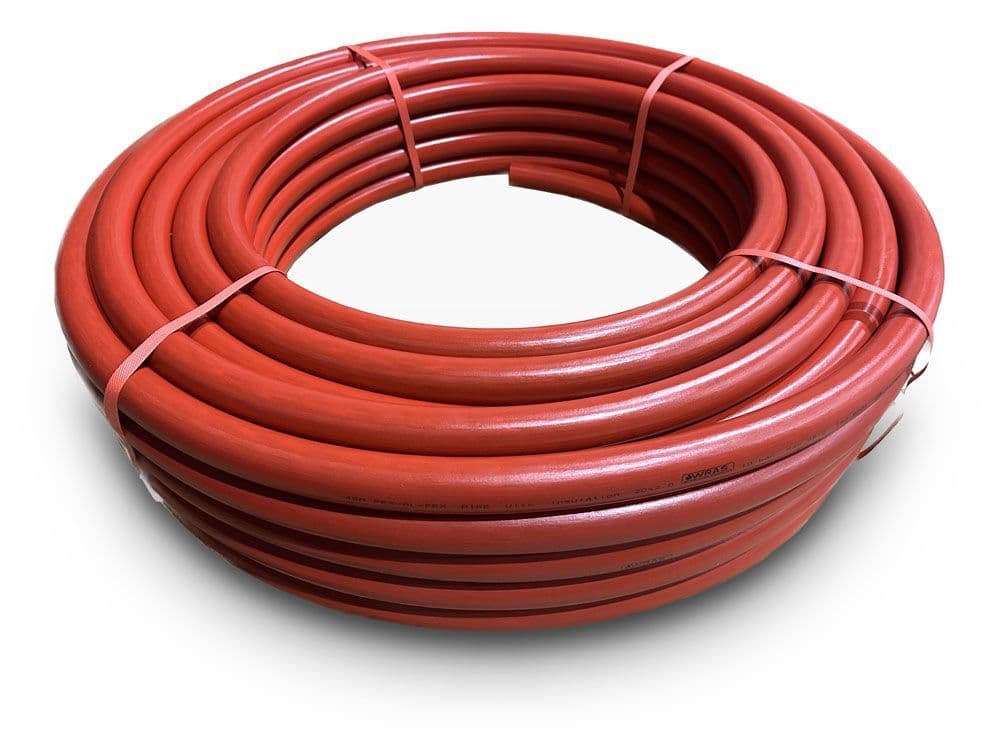

- Colour-Coded: Available in red and blue for easy service identification.
| Values | Test Method | |
|---|---|---|
| Insulation Material | Polyethylene foam, closed-cell | EN 14313 |
| Insulation Thickness | 7 mm | - |
| Thermal Conductivity | λ = 0.040 W/m·K | - |
| Fire Resistance (insulation) | BL-S2-D0 | BS EN 13501-1 |
| Fire Resistance (assembly) | Class E | BS EN 13501-1 |
| Surface Roughness (internal) | 1–1.4 μm | - |
| KV Value | 67.5 L/min | - |
| Hot Water Service | ≤ 70 °C, max 10 bar | Class 2, BS EN ISO 21003 |
| Cold Water Service | < 20 °C, max 10 bar | BS EN ISO 21003 |
| Heating Systems | ≤ 80 °C, max 10 bar | Class 5, BS EN ISO 21003 |
| Coil Lengths | 25m, 50m, 100m | - |
| Diameters | 16mm, 20mm, 25mm, 32mm | - |
| Colours | Red (hot water), Blue (cold water) | - |
