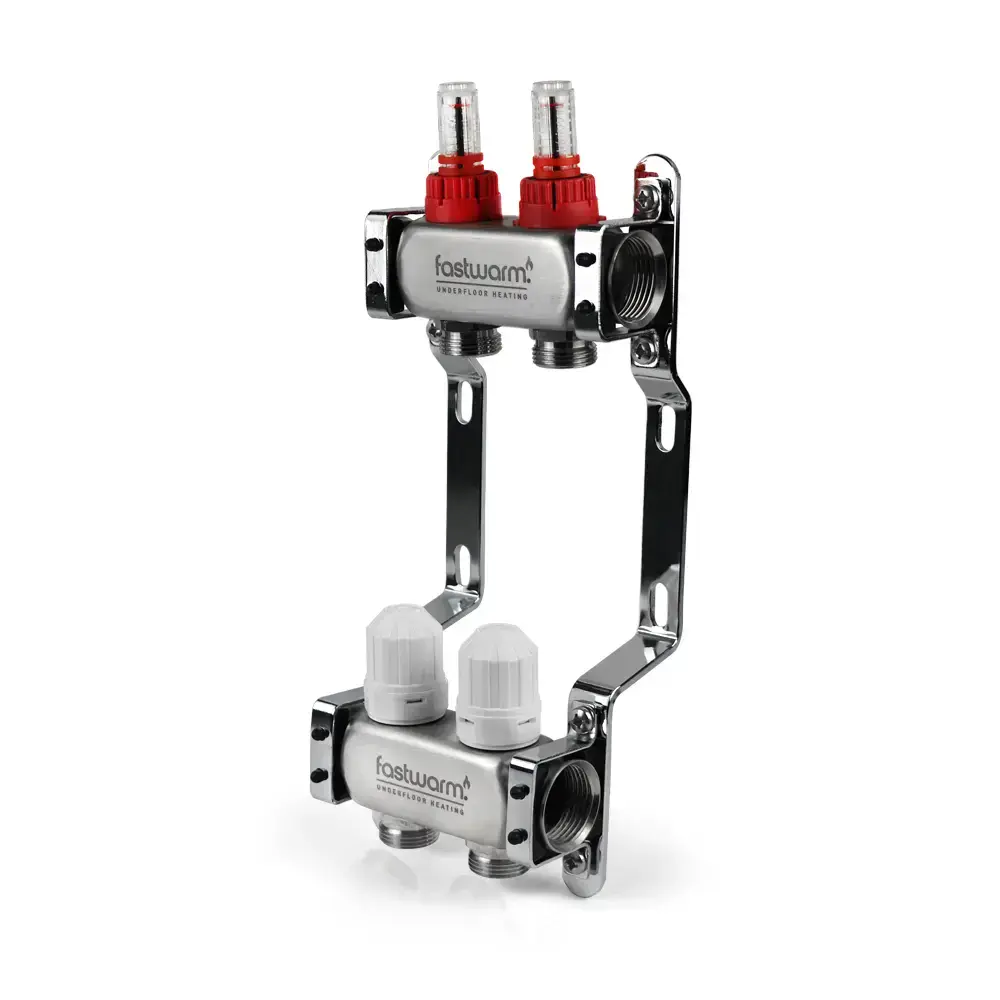

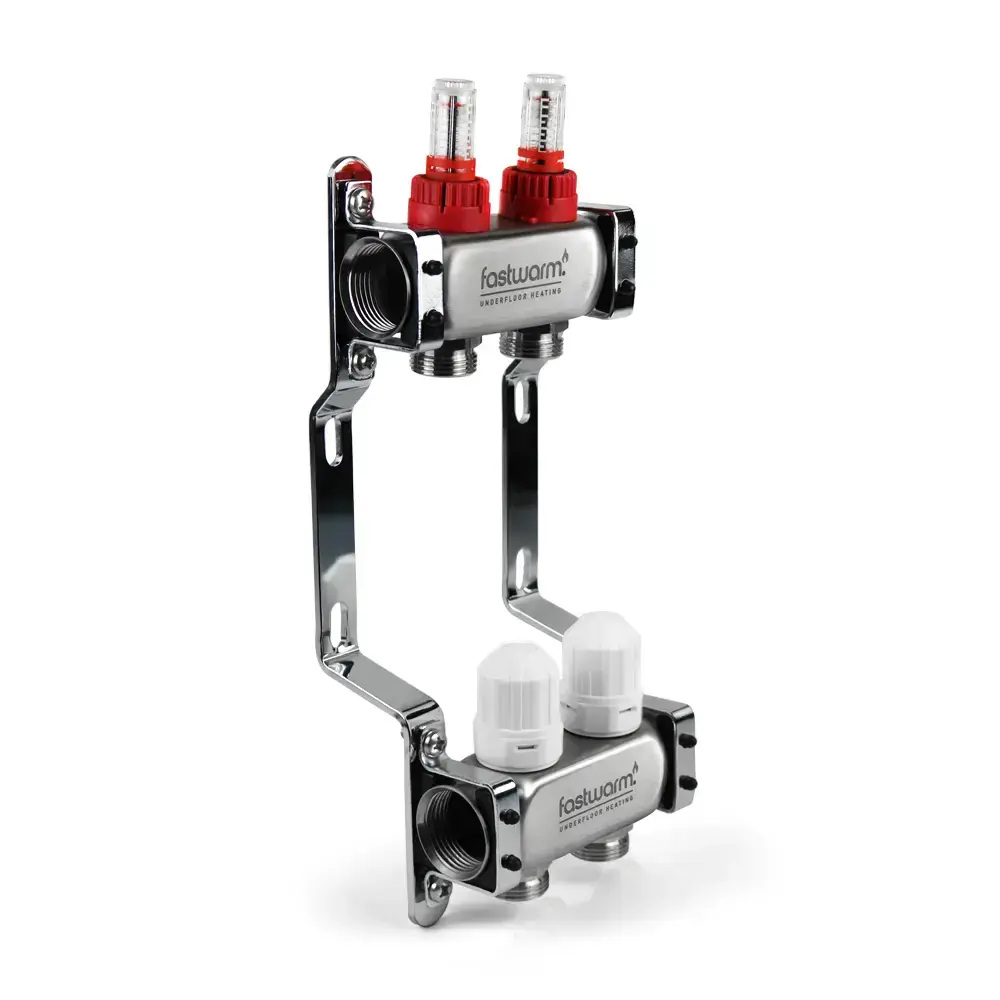

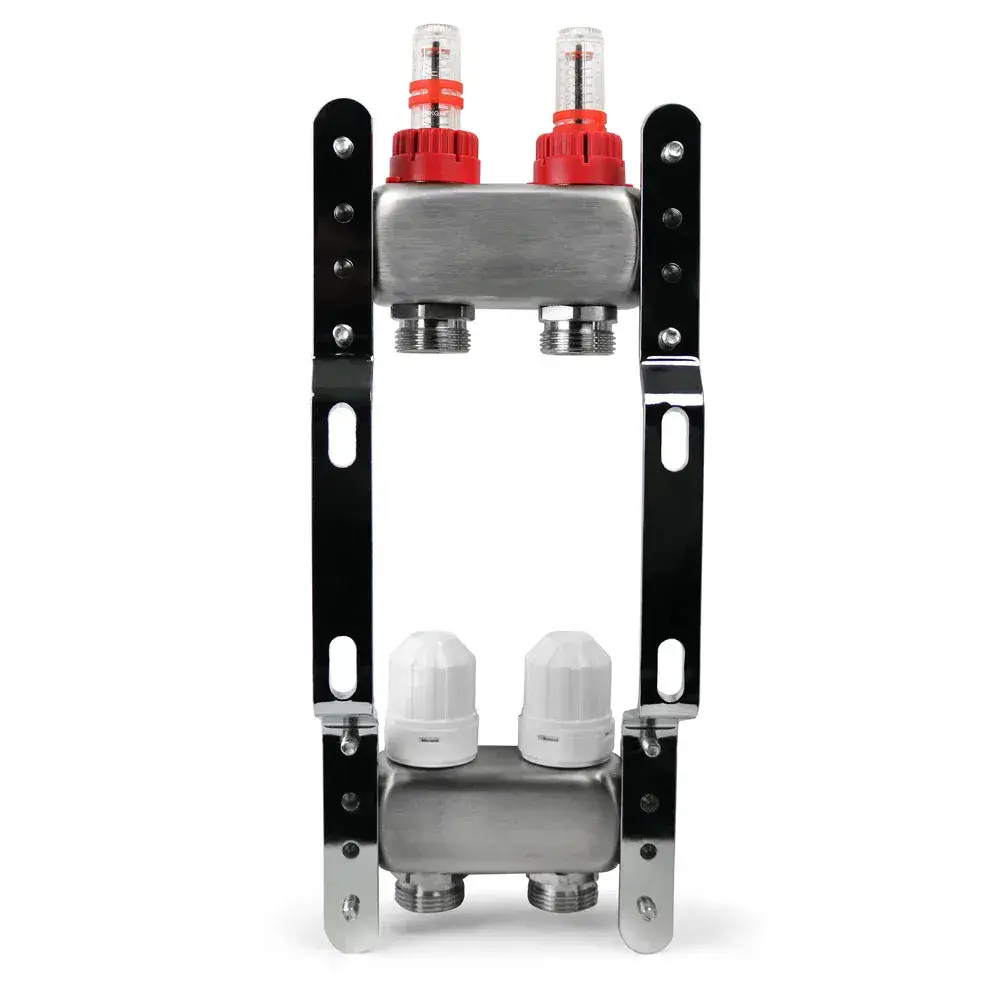

Fastwarm Stainless steel manifolds are highly engineered and are available from 2-12 ports.

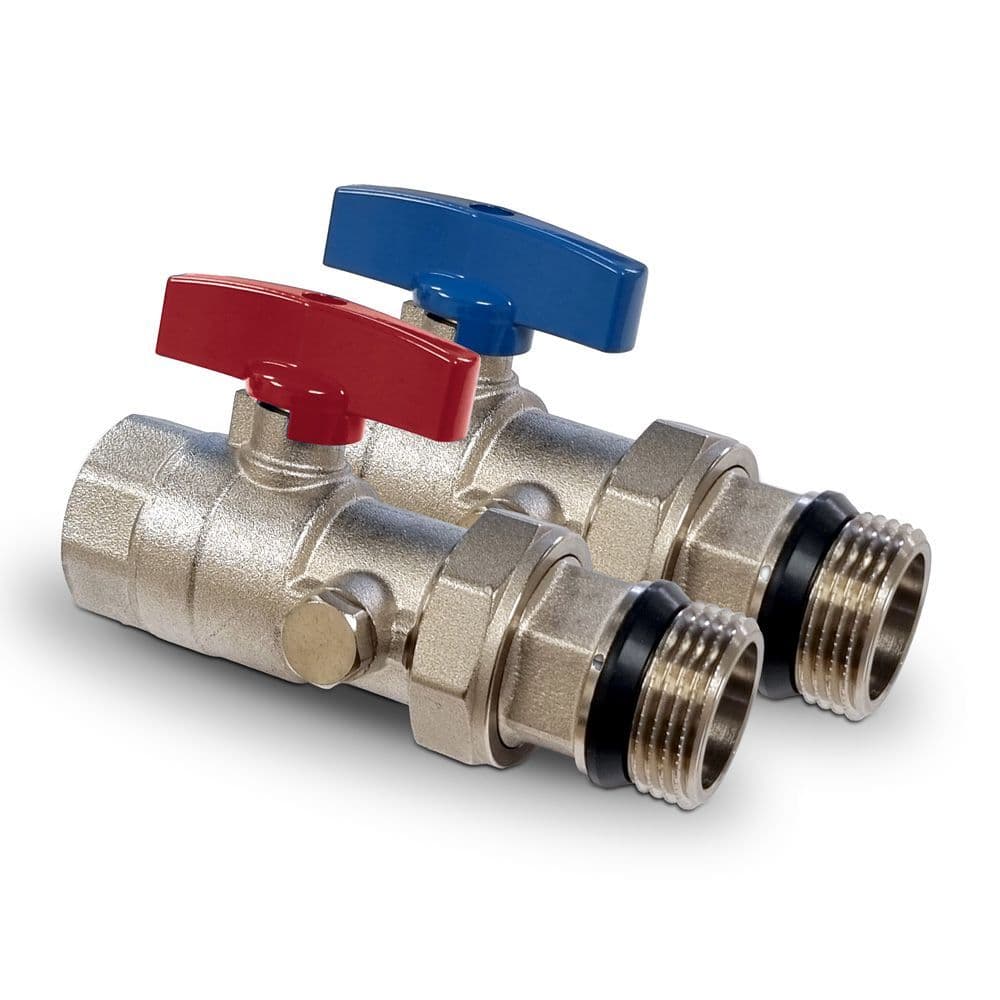

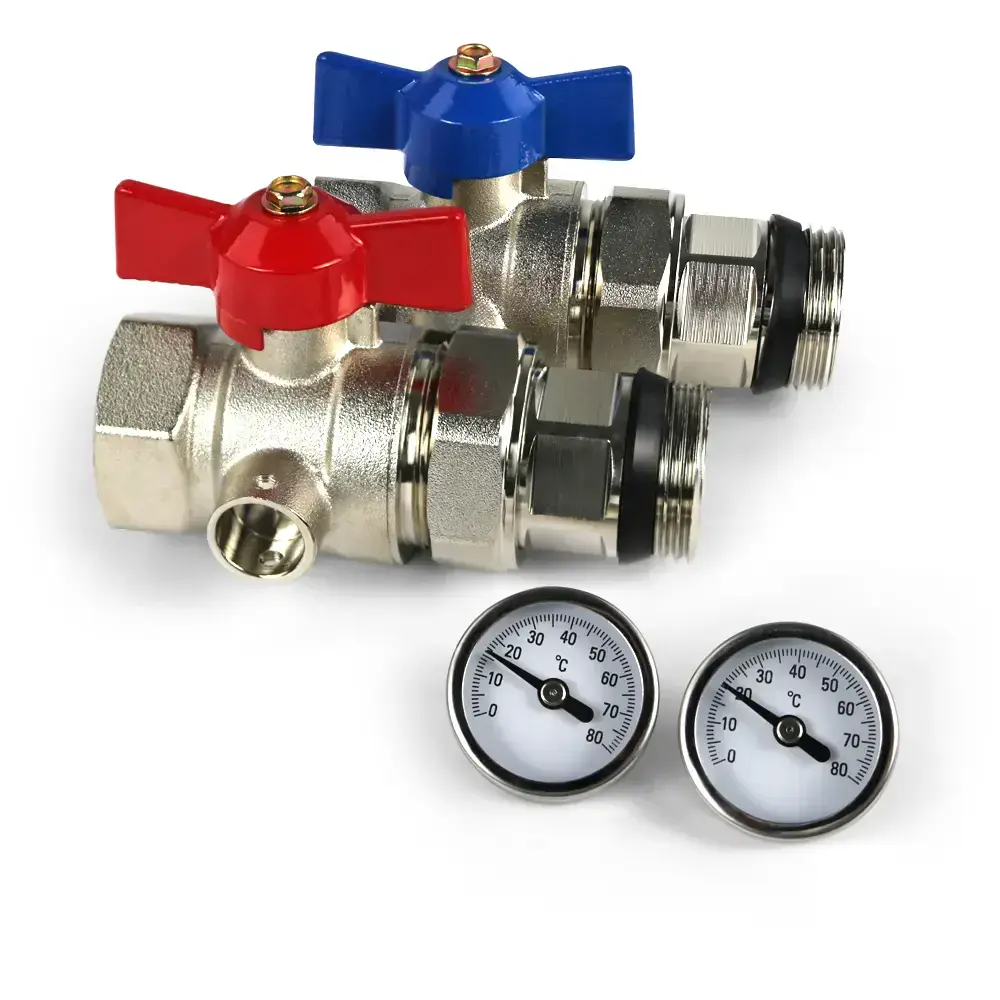

Either sold as as manifold on its own or includes manifold accessories (ball/isolation valves & filling/draining valves).
Euroconus sold separately as can be used with 10mm-20mm euroconus fittings.
Fastwarm Manifolds come with full installation instructions and lifetime guarantee for that ultimate piece of mind.
Perfect for use with Fastwarm Pipework (16mm / 12mm)
| Materials | Manifold Body | 0Cr18Ni9(SUS304) |
|---|---|---|
| Port Connection | HPb59-1Ⅱ | |
| Sealed | EPDM | |
| Working Performance | Max. Working Pressure | 10 bar |
| Max. Cont. Working Temperature | 100°C | |
| Max. instantaneous working Temperature(Max. 10 min/day) |
110°C | |
| Max. differential pressure | 1 bar | |
| Working Media | Media 1 | water |
| Media 2 | Water/ethylene glycol 50/50% | Media 3 | Water/propylene glycol 50/50% | Media 4 | Water/propylene glycol 50/50% |

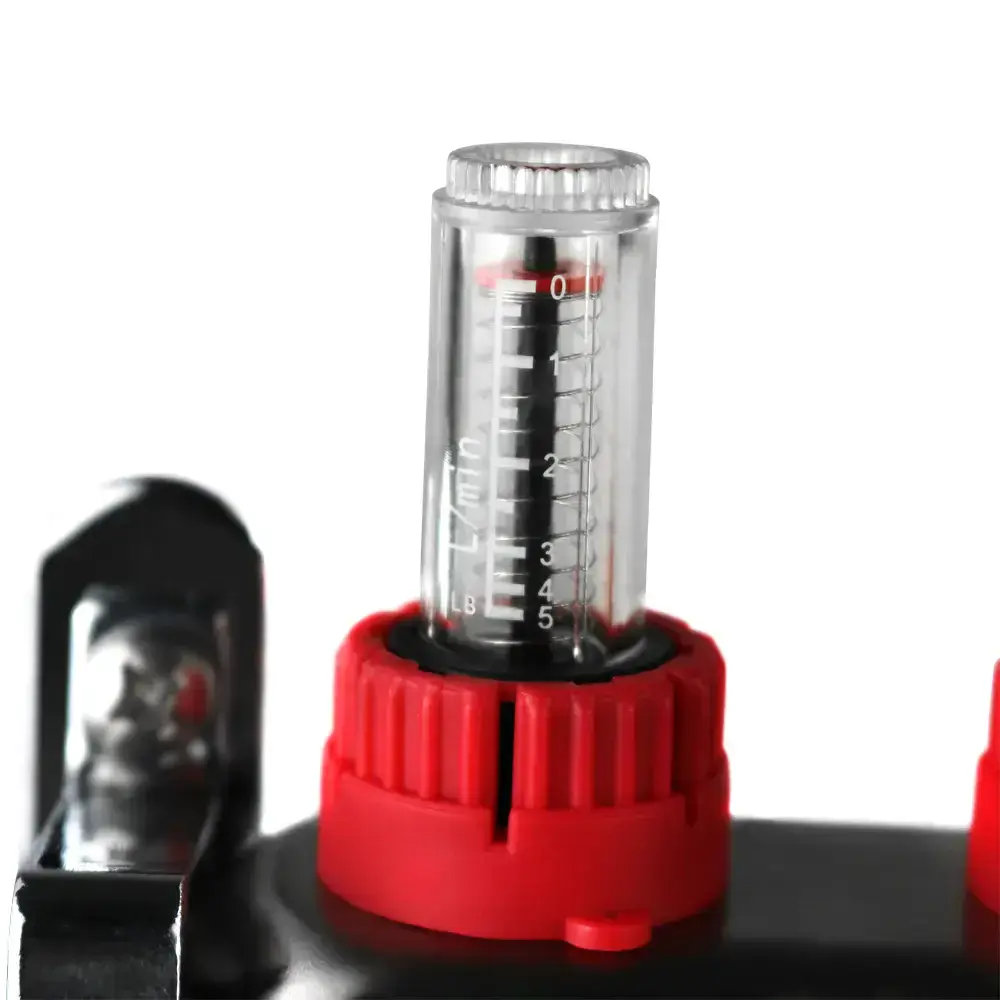

| Flow | Indication Scale | 0.5 - 5 L/min |
| Indication Tolerance | ±10% | |
| Kvs | 1.10 | |
| Connection | Connection heat feed | 1" female |
| Circuit connection | 3/4" male EuroCone | |
| Filling/air bleeding | 1/2" male |
