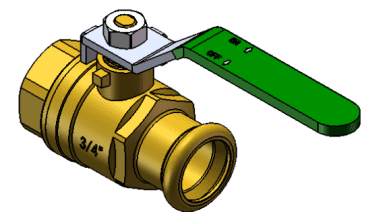

The Fastwarm M Full-Bore Press Ball Valve with Female Connection allows precise flow control while connecting directly to BSP female threaded fittings. Its full-bore design ensures unrestricted flow, and the robust shut-off provides reliable performance in professional plumbing and heating systems.
Designed for flexible installation, this ball valve combines a press-fit main connection with a female threaded outlet, making it ideal for connecting to taps, valves, or other threaded components. The flame-free press fitting ensures fast, safe, and leak-proof installation.
Key Benefits & Features
- Press-to-female-thread connection — connects seamlessly to BSP female fittings
- Full-bore ball valve — ensures minimal pressure drop and unrestricted flow
- Durable shut-off for reliable operation
- Flame-free press fitting — no soldering or hot works required
- WRAS & DVGW certified for full compliance and peace of mind
- Pressure rated to 16 bar and suitable for temperatures from -24°C to 110°C
- Ideal for flexible installations where press-to-thread connections are needed
Choose the Fastwarm M Press Ball Valve with Female Connection for a professional-grade solution that delivers secure, efficient, and adaptable flow control in modern plumbing and heating systems.
| CODE | SIZE | A | B | L1 | L2 | L | L3 | H |
|---|---|---|---|---|---|---|---|---|
| FW-4199-1512FR | 15x1/2 | 15 | G1/2 | 22 | 14 | 61.5 | 91 | 51 |
| FW-4199-2234FR | 22x3/4 | 22 | G3/4 | 21 | 14 | 67 | 91 | 54.5 |
| FW-4199-2811FR | 28x1 | 28 | G1 | 27 | 15 | 83 | 100 | 62.5 |
| FW-4199-35114FR | 35x1-1/4 | 35 | G1-1/4 | 26 | 16 | 92 | 130 | 72.5 |
| FW-4199-42112FR | 42x1-1/2 | 42 | G1-1/2 | 34 | 16 | 109.5 | 130 | 79 |
| FW-4199-5421FR | 54x2 | 54 | G2 | 35 | 18 | 122 | 157 | 94.5 |
| FW-4199-1512FB | 15x1/2 | 15 | G1/2 | 22 | 14 | 61.5 | 91 | 51 |
| FW-4199-2234FB | 22x3/4 | 22 | G3/4 | 21 | 14 | 67 | 91 | 54.5 |
| FW-4199-2811FB | 28x1 | 28 | G1 | 27 | 15 | 83 | 100 | 62.5 |
| FW-4199-35114FB | 35x1-1/4 | 35 | G1-1/4 | 26 | 16 | 92 | 130 | 72.5 |
| FW-4199-42112FB | 42x1-1/2 | 42 | G1-1/2 | 34 | 16 | 109.5 | 130 | 79 |
| FW-4199-5421FB | 54x2 | 54 | G2 | 35 | 18 | 122 | 157 | 94.5 |
