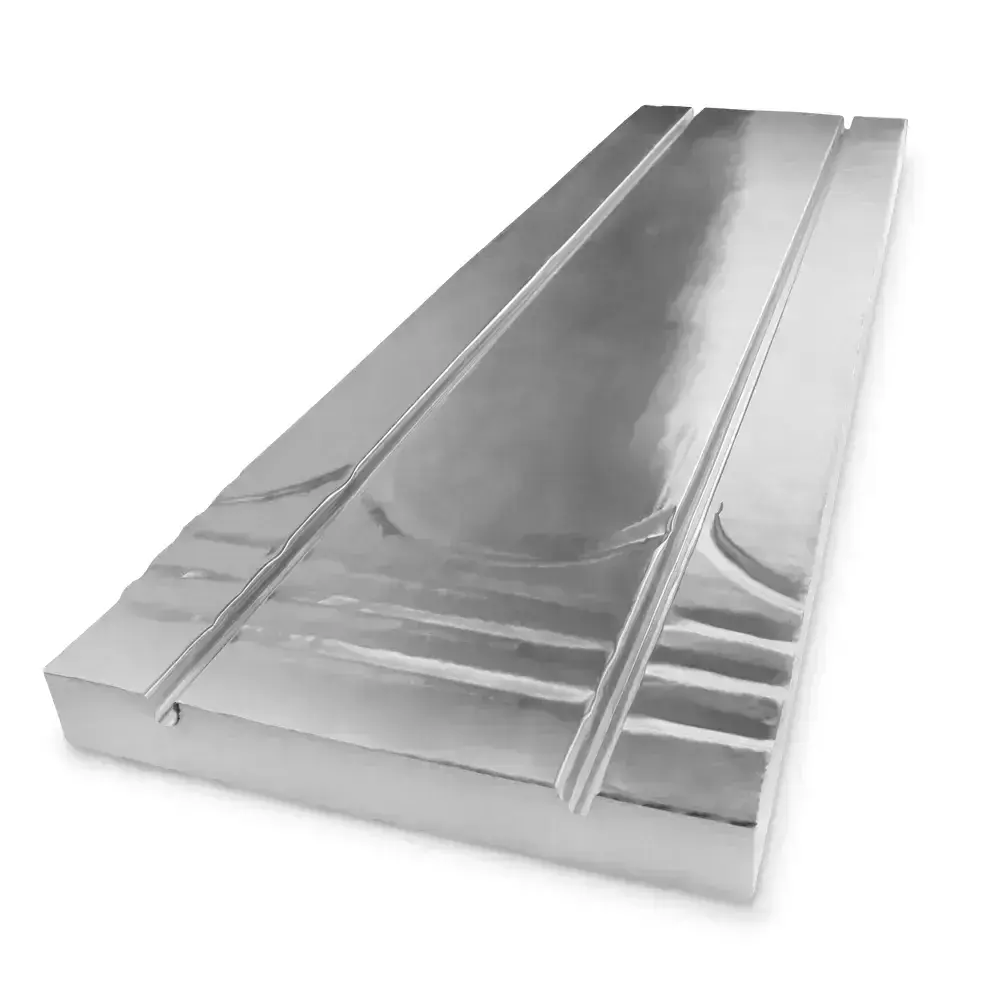

The Fastwarm® Injoist 1200 x 350 x 50mm Panel offers a simple, efficient solution for installing underfloor heating pipework between traditional joists or on concrete subfloors. Designed to fit snugly between joists or battens, these panels eliminate the need for separate foil-faced insulation and spreader plates—saving both time and cost during installation.
Crafted from high-performance Expanded Polystyrene (EPS), each panel comes pre-grooved at 200mm pipe centres and is specifically designed to accommodate 16mm underfloor heating pipework. Whether you're working on timber or concrete structures, these panels deliver a secure and thermally efficient fit.
- Optimised for joist installation – Fits neatly between standard joists or battens, ideal for retrofit or new-build projects.
- Integrated groove spacing – Pre-grooved at 200mm centres to suit 16mm underfloor heating pipes.
- Panel dimensions – Each panel measures 1200mm x 350mm x 50mm for easy handling and consistent coverage.
- High-performance EPS material – Provides thermal insulation while supporting efficient heat distribution.
- All-in-one design – Removes the need for separate spreader plates and foil insulation layers.
The Fastwarm® Injoist Panel is a cost-effective, installer-friendly solution that simplifies in-joist underfloor heating setups while enhancing thermal performance and system reliability. Trusted for both domestic and commercial applications, it’s a dependable choice for delivering comfort and energy efficiency underfoot.
To install the injoist batten system you will begin by securing battens to the sides of the joist with the top of the batten 50mm below the top of the joist. This will allow the insulation to sit flush with the top of the joist.
The pipework can then be placed withing the preformed grooves within the board.
You can finish the installation of this system by installing the finished floor.
| Panel Dimensions | 1200mm x 350mm x 50mm |
|---|---|
| Panel Thickness | up to 125mm ( in 1.0mm increments ) |
| Aluminium Foil Thickness | 45 microns |
| Thermal Conductivity | 0.036 W/mK |
| Compressive Strength | 100 kPa @ 10% compression |
| Compressive Strength | 45 kPa @ 1% compression |
| Fire Classification | Euroclass F |
| Suitable Pipe Size | 15mm and 16mm |
