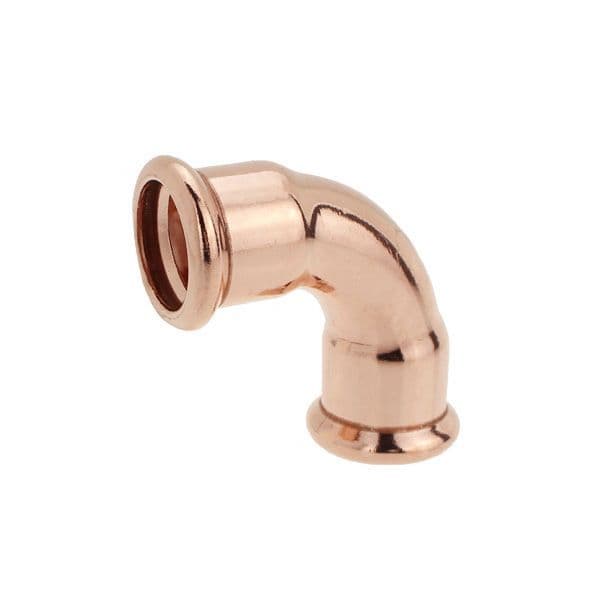

The Fastwarm M Profile Press 90° Bend provides a fast, secure, and flame-free solution for changing pipe direction with confidence. Designed for professional installations, it delivers a clean, precise 90° turn without compromising system performance or flow.
Manufactured from a high-quality copper alloy and sealed with a durable EPDM ‘O’ ring, this fitting ensures a tight, leak-free connection when used with copper tubes manufactured to BS EN 1057 standards. The press-fit design removes the need for hot works, making installations safer, quicker, and more efficient.
Key Benefits & Features
- Precision 90° bend for clean, accurate pipe direction changes
- Heavy-duty copper construction for long-term durability
- Available in sizes from 15–54mm to suit a wide range of installations
- Maintains electrical continuity across the joint
- Heat-free press fitting – no soldering or flames required
- WRAS & DVGW approved for full compliance and peace of mind
- Pressure tested to 16 bar and suitable for temperatures from -24°C to 110°C
- Ideal for heating and plumbing systems where reliable flow redirection is essential
Choose the Fastwarm 90° Bend for a professional-grade solution that combines accuracy, safety, and long-lasting reliability—perfect for both new installations and retrofit projects.
| CODE | SIZE | D1 | D2 | L1 | L2 | A | B |
|---|---|---|---|---|---|---|---|
| FW-KM103-L2215 | 22 | 15 | 22x15 | 21 | 20 | 38 | 37 |
| FW-KM103-L2815 | 28 | 15 | 28x15 | 23 | 20 | 43 | 37 |
| FW-KM103-L2822 | 28 | 22 | 28x22 | 23 | 21 | 40 | 36 |
| CODE | SIZE | L | A | T |
|---|---|---|---|---|
| FW-KM103-L1515 | 15 | 20 | 38 | 1.1 |
| FW-KM103-L2222 | 22 | 21 | 47.5 | 1.1 |
| FW-KM103-L2828 | 28 | 23 | 56.5 | 1.1 |
| FW-KM103-L3535 | 35 | 26 | 68 | 1.15 |
| FW-KM103-L4242 | 42 | 30 | 80.4 | 1.20 |
| FW-KM103-L5454 | 54 | 35 | 100 | 1.20 |
