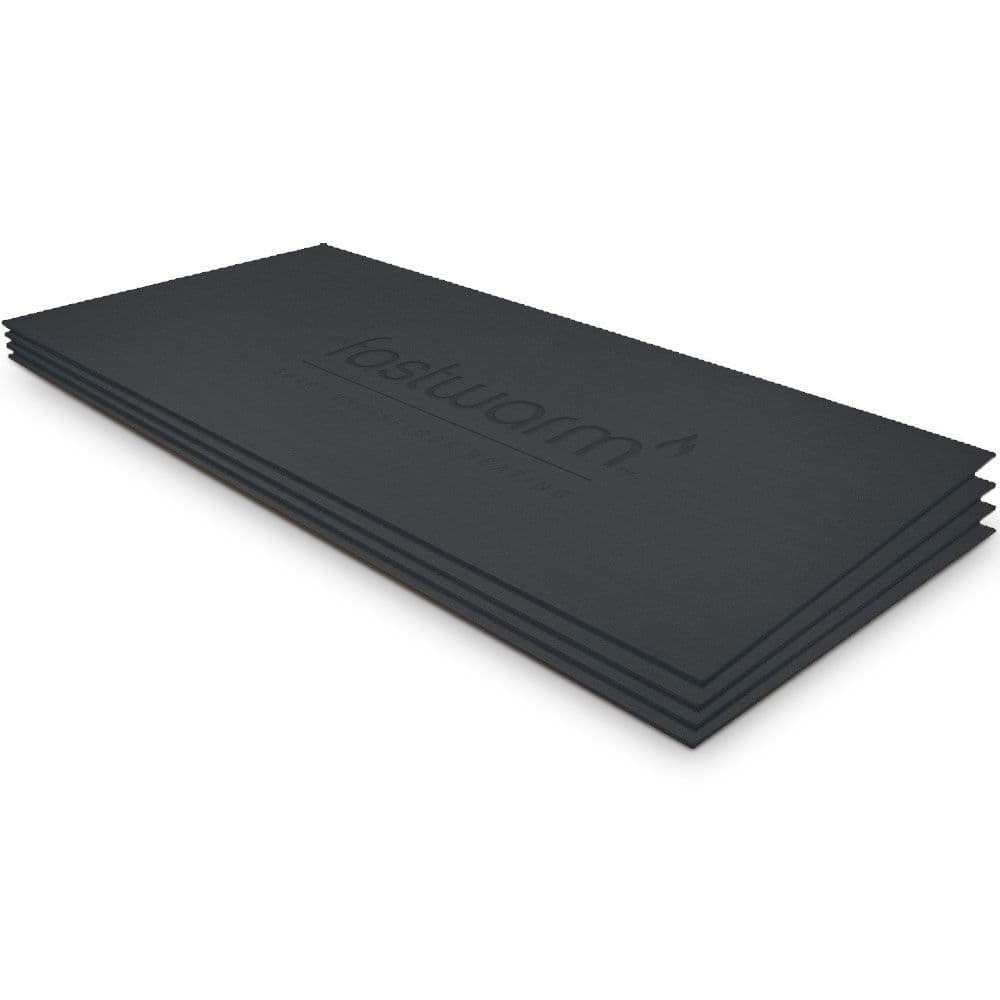

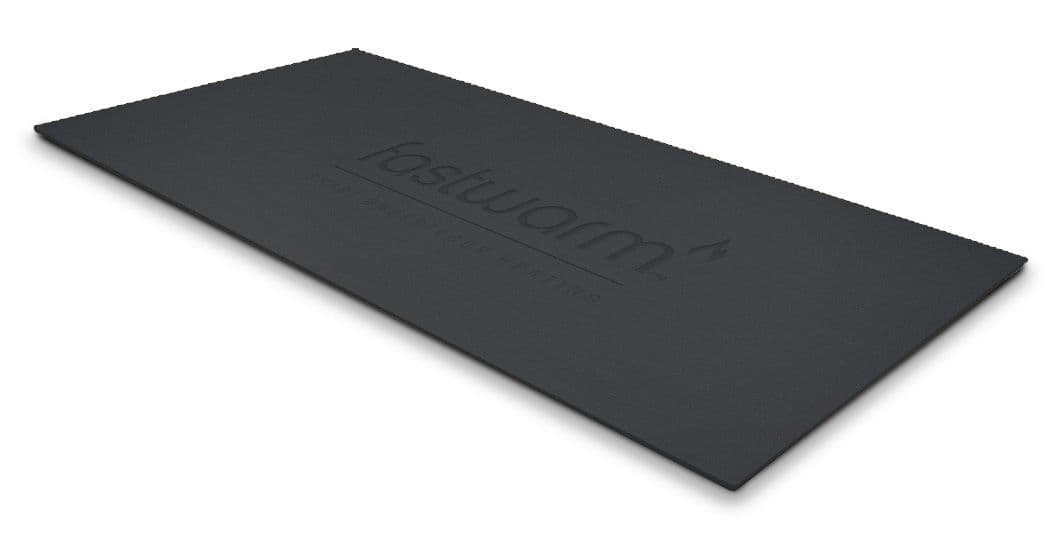

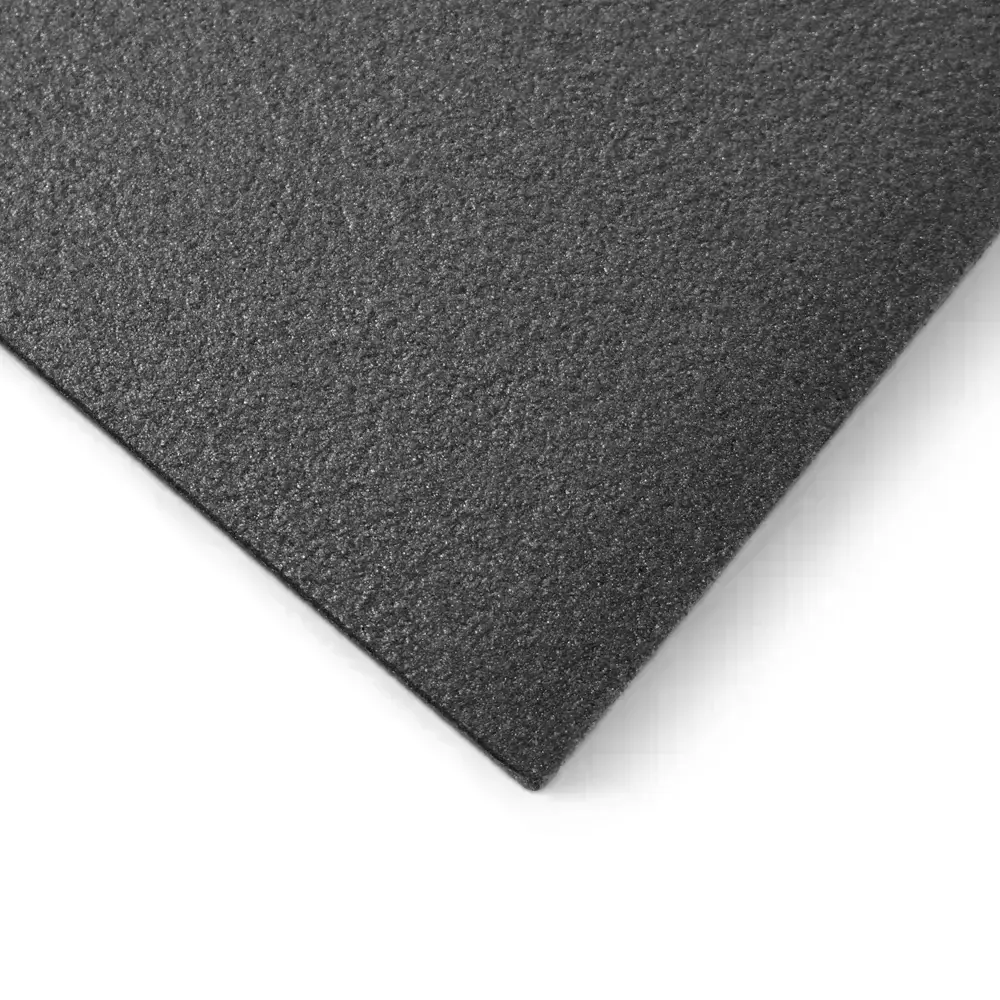

Our 30mm XPS Insulation Boards offer an advanced insulation layer ideal for underfloor heating systems where maximum thermal retention is required. Designed for use on concrete or screeded subfloors, they significantly improve efficiency and comfort.
Despite the thicker profile, the boards remain lightweight, easy to handle, and simple to install—making them ideal for both tiled and floating floor systems.
- Approved by Ultra Tile – Assured compatibility with adhesives.
- Advanced Insulation Value – Thermal conductivity rated at 0.031 W/mK.

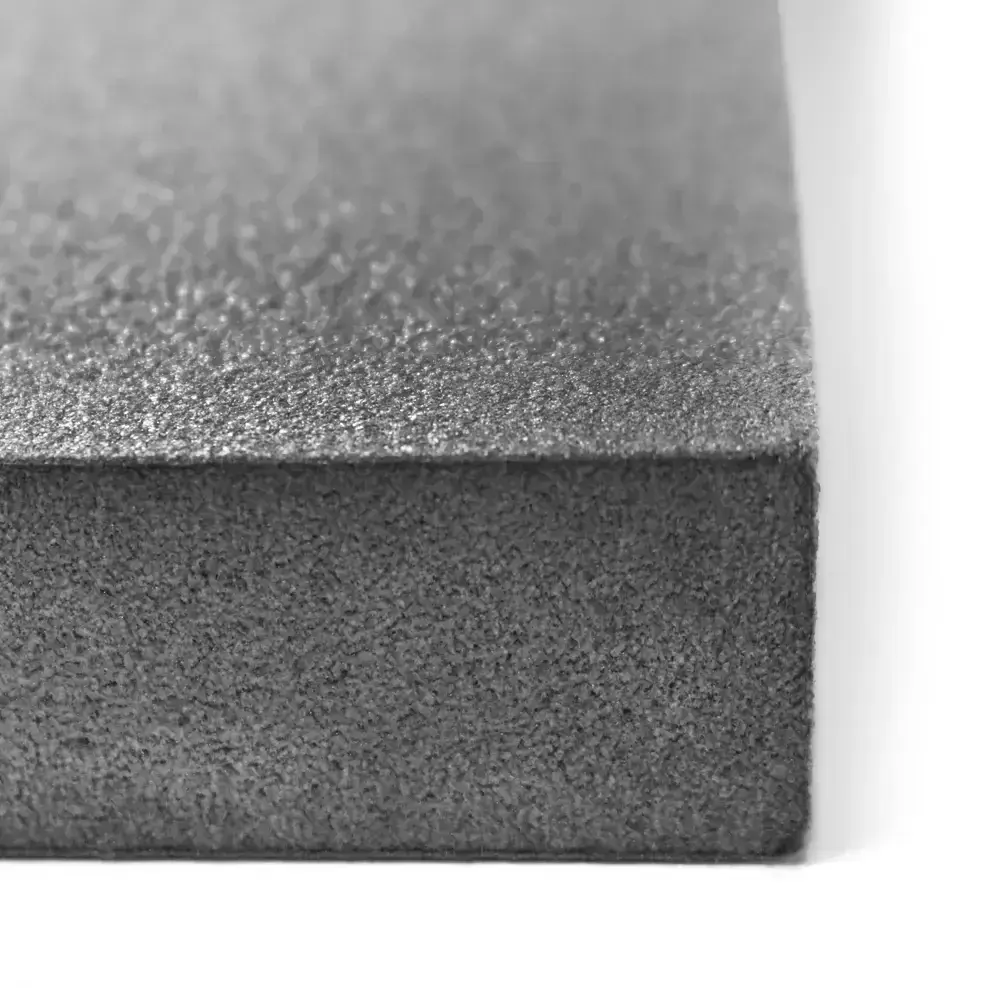

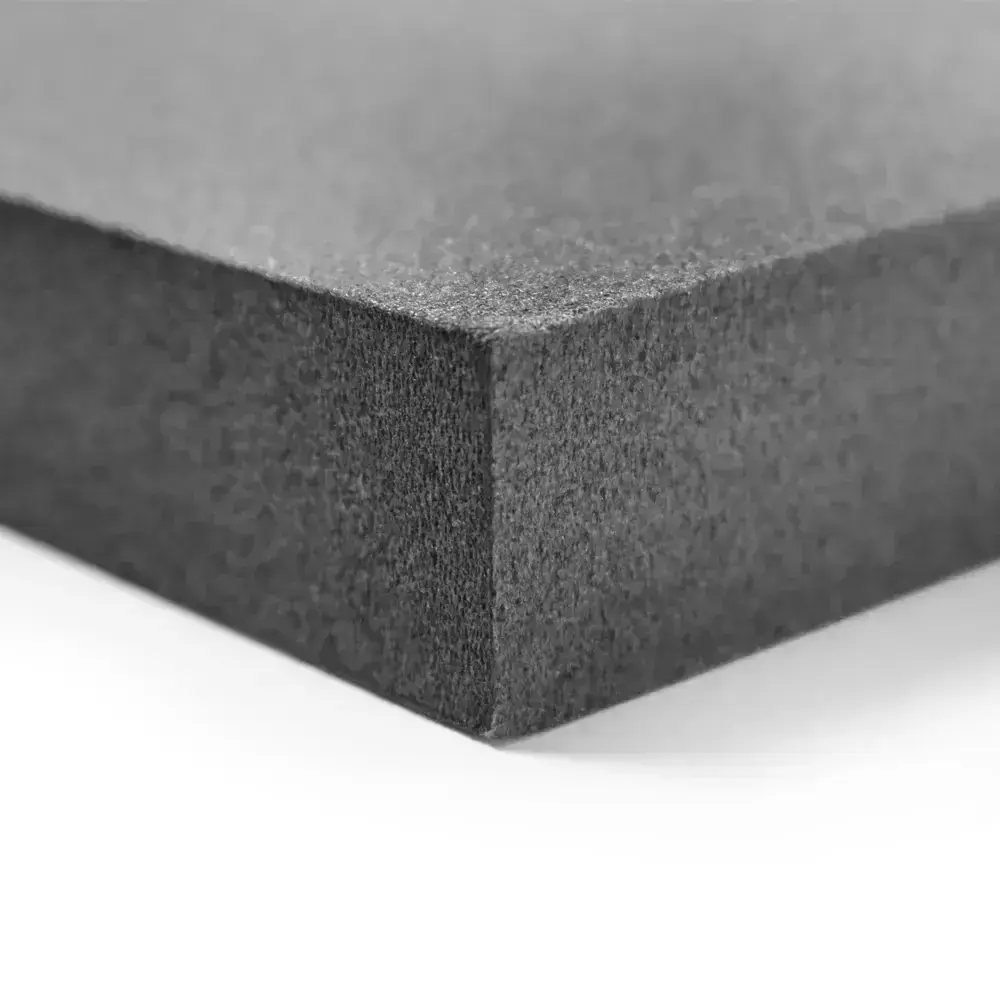

- Generous 30mm Thickness – Exceptional thermal efficiency.
- Sound Reduction – Helps control room-to-room noise.
- On-Site Flexibility – Easily cut and adapted as needed.
- Standard Sizing – 1200mm x 600mm per board (0.72m² coverage).
- High Compression Strength – Tested to 30 tonnes per m².
Installation Guidance
The Fastwarm® XPS insulation boards can be used beneath both tiled flooring and floating floor installations (such as laminate or engineered wood). However, installation methods will vary depending on the type of flooring and subfloor surface.
Undertile Installations:

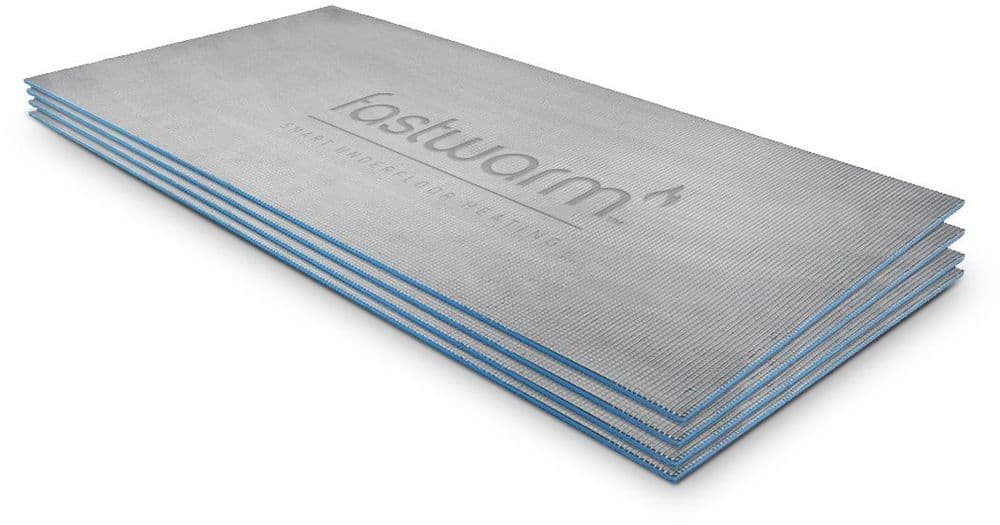

Fix boards to the subfloor using a suitable flexible tile adhesive. When tiling over a timber subfloor, we recommend using our dedicated Fastwarm® Tile Backer Boards, which can be mechanically fixed in addition to being bonded with flexible adhesive.
Underwood Installations:
Lay the XPS insulation boards directly onto a clean, dry, and level subfloor in a brickbond pattern. Secure the joints using our heat-resistant Fastwarm® Duct Tape for added stability beneath floating floor finishes.
Please note: Boards are supplied in black. Blue colour shown in some images is for illustration only.
Choose the ideal board thickness to suit your project's build-up and insulation needs: 6mm | 10mm | 20mm | 50mm
| Thickness | 6mm, 10mm, 20mm, 30mm & 50mm |
|---|---|
| Board Dimension | 1200mm x 600mm |
| Material Type | Expanded Polystyrene |
| Thermal Conductivity | 0.031 W/mk |
| Material Density | 33 kg/m3 |
| Compressive Strength | 30 t/m2 |
| Moisture Absorption | < 0.1 vol % |
| Euroclass Fire Rating | E Euroclass |
