Fastwarm - Ultra High Output Spreader Plate Water Kit
Fastwarm - Ultra High Output Spreader Plate Water Kit
10% off

Fastwarm - Ultra High Output Spreader Plate Water Kit

Fastwarm® Ultra High Output Spreader Plate Water Underfloor Heating Kits are designed for installation between joists, for areas being installed as one Zone (area).

Ultra High Output Systems are supplied with Fastwarm Spreader Plates for installation between joists.

Supplied with 1 thermostat to control an individual zone.

Kit sizes range from 15m2 to 120m2

£665.99
Save
£66.00
Our Price
£599.99
each
inc vat
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description
Fastwarm 50 Year Pipe Guarantee

Fastwarm® Ultra High Output Spreader Plate Water Underfloor Heating Kits are designed for installations between joists, for areas being installed as one Zone (area) and come with only one thermostatic controller. Meaning regardless of how big the area/how many rooms, the system will act as one and be controlled as one zone. For multiple room or zone control, please refer to the Fastwarm® Multi Zone Spreader Plate systems.

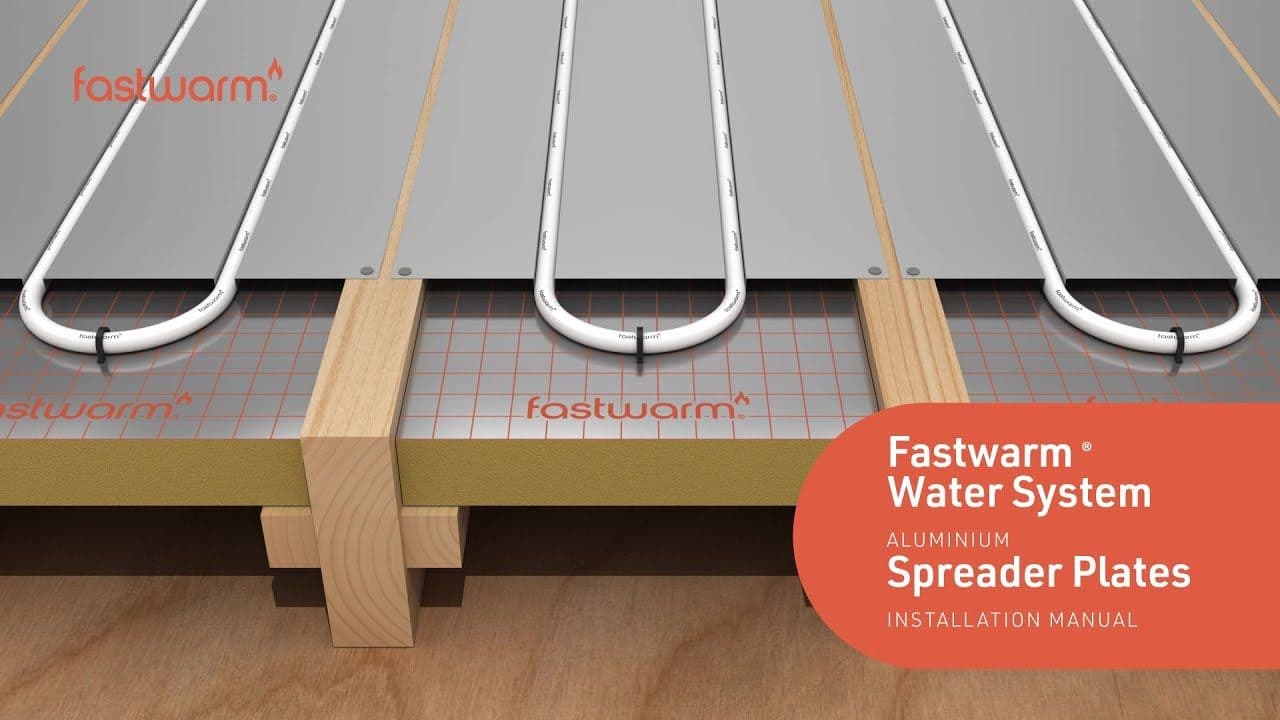

Fastwarm Aluminium spreader plates are 390mm x 1000mm x 0.5mm (groove depth: 16mm) diffuser plates suitable for joist centres of 400mm and are based at 133m.

Fastwarms 16mm Pert Pipe is fixed in the grooves of the plates, insulation is placed in the void below the plates to minimize downward heat loss and dissipate the heat even across the floor evenly.

FastWarm® Spreader Plate Water Underfloor Heating Kits are the homeowner and installers perfect choice, as each kit comes complete with everything you need in a box with a multiple of different choice of thermostat control. Systems come with an easy-to-follow installation guide and all pipework comes with lifetime (50yr) guarantee. FastWarm® also has a fully qualified technical support team available for on-site queries.

These single zone water underfloor heating kits are designed to cover the m2 in pipework when spaced at 133mm spacings NB. Pipe is not provided to get to and from from the heat source.

FastWarm® Water Kits include FastWarm® branded products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with FastWarm® systems. There are many similar systems on the market that are simply unbranded or compiled from OEM parts and therefore cannot offer this same quality control.

Fastwarm® Ultra High Output Spreader Plate kits include the following: -

FastWarm® Spreader Plates

FastWarm® Spreader Plates

Spreader plates are laid across traditional joists and fixed in place using a hand stapler

Fastwarm® PERT AL PERT 16mm Pipework

Fastwarm® PERT AL PERT 5 Layer Pipework

Includes 50 year pipe guarantee

Fastwarm® Manifold

Fastwarm® Manifold

Size varies depending on m2 coverage. Only included on kits 30m2 and above.

Grundfos A Rated Pump & Mixing Valve Unit

Grundfos A Rated Pump & Mixing Valve Unit

The compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.

Choice of Thermostat

Choice of Thermostat

We have several thermostats available to fit your budget and lifestyle.

Fastwarm® Pipe Cutter

Fastwarm® Pipe Cutter

Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.

Edging Insulation

Edging Insulation

Edge Insulation is to be used around the edge of the room in order to minimise unwanted heat loss, allow for expansion and comply with Building Regulations.

Kit Content Comparison Table

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2) 15 30 45 60
16mm x 1/2" Male Iron 2
Isolation/Ball Valve
Edge Insulation
Eurocones (16mm) 4 6 8
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Single Circuit Pump & Mixing Valve
Manifold Ports 2 3 4
Pipe Length (m) 100 200 300 400
Pipe Cutters
Pipe Rounding Tool
Thermostat 1 1 1 1
Kit Size (m2) 75 90 105 120
16mm x 1/2" Male Iron
Isolation/Ball Valve
Edge Insulation
Eurocones (16mm) 10 12 14 16
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Single Circuit Pump & Mixing Valve
Manifold Ports 5 6 7 8
Pipe Length (m) 500 600 700 800
Pipe Cutters
Pipe Rounding Tool
Thermostat 1 1 1 1
Kit Size (m2) 15 30 45 60 75 90 105 120
16mm x 1/2" Male Iron 2
Isolation/Ball Valve
Edge Insulation
Eurocones (16mm) 4 6 8 10 12 14 16
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Single Circuit Pump & Mixing Valve
Manifold Ports 2 3 4 5 6 7 8
Pipe Length (m) 100 200 300 400 500 600 700 800
Pipe Cutters
Pipe Rounding Tool
Thermostat 1 1 1 1 1 1 1 1

Thermostat Options
Heatmiser DS1 Manual Thermostat

Heatmiser DS1 Manual Thermostat

  • Power On & Heat On Indication
  • Modern Apperance
  • Easily increase or decrease the required temperature
  • Variable Switching Differential
  • Outputs: Volt free 3A Max
Dimensions 92mm x 92mm x 34mm
Mounting Surface mounting
Load 230v
Heatmiser Slimline Thermostat

Heatmiser Slimline Thermostat

  • Large Display
  • 5/2 Day or 7 Day Programming
  • Self Learning Optimum Start
  • 4 Comfort Levels per Day
  • Temperature Hold Facility
  • Holiday Facility
  • Automatic Blue Back-Lit Display (Turns off after 30 seconds)
  • Flush Mounting
  • °C/°F Selectable
  • Key Locking
  • Frost Protection
  • Remote Control Option
Dimensions 98mm x 85mm x 13mm
Mounting Flush mounted
Load 12v - volt free 3A Max
Heatmiser NeoStat

Heatmiser NeoStat Thermostat

  • Stunning design incorporating soft touch keys
  • Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
  • Air, Air & Floor & Floor only sensing modes
  • 5 minute program intervals
  • Self learning optimum start
  • 4 comfort level/ Times per day
  • Holiday facility
  • Automatic blue back light (turns off after 30 secs)
  • Flush mounting
  • °C/°F selectable
  • Key Code facility
  • Frost protection
Fastwarm® Wifi Thermostat

Fastwarm Wifi

The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.

This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.

Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.

  • WIFI Control
  • Programmable
  • Professional design
  • Hold function
  • Floor Temperature Limitation
  • Power Consumption Monitor (APP)
  • Large Screen
IP rating IP21
Max Load 3A
Supply voltage 230v
