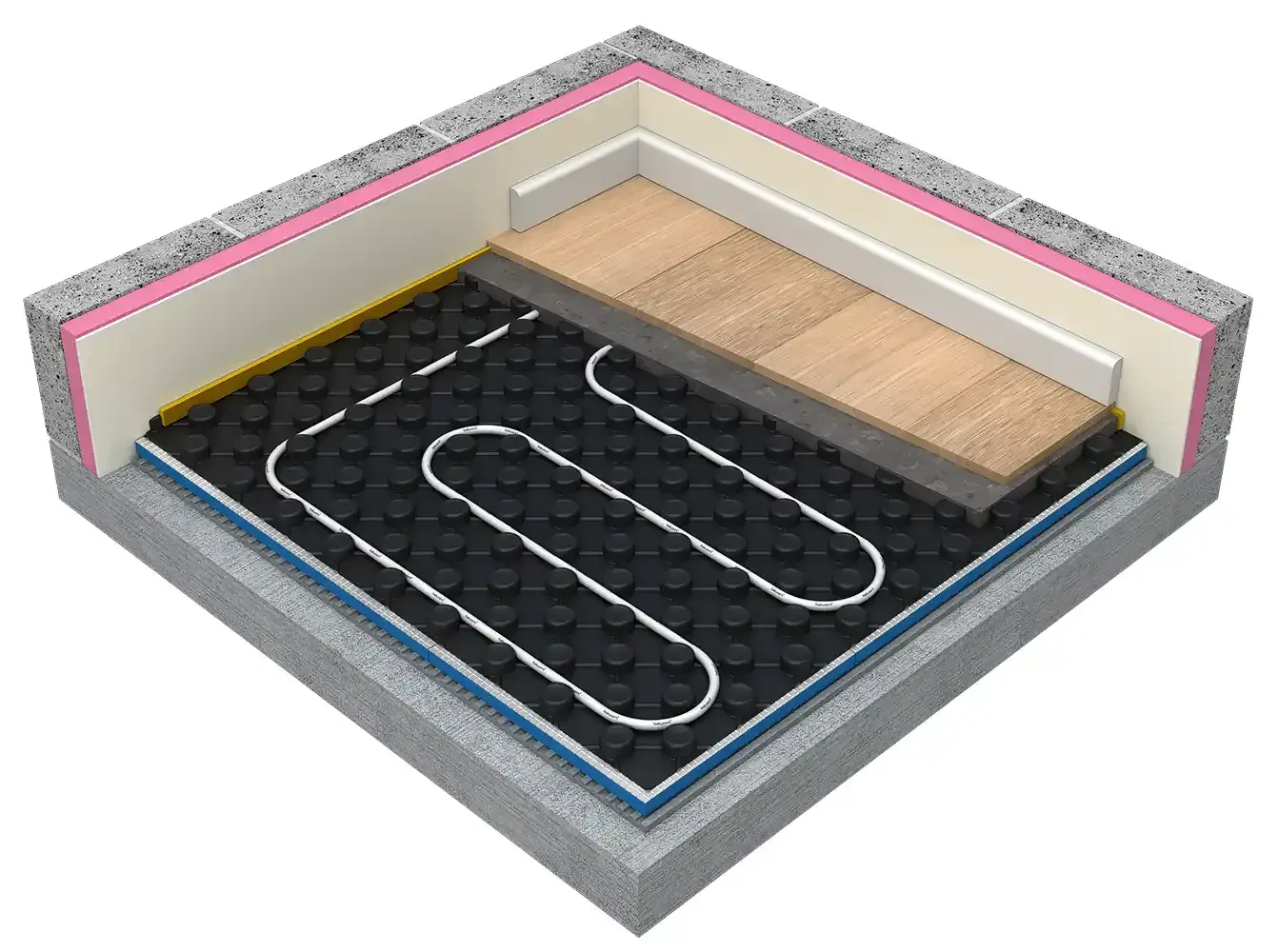

Fastwarm® Ultra High Output Egg Crate Water Underfloor Heating Kits are designed for installation in poorly insulated areas / or for use with an Air Source Heat Pump with the crate and pipe spaced @ 150mm spacings.
These Ultra High Output Egg Crate Single Zone systems are designed for use in one Zone (area) and come with only one thermostatic controller - meaning, regardless of how big the area/how many rooms, the system will act as a single unit and be controlled as one zone. For multiple room or zone control we offer the Fastwarm® Multi Zone systems
This system is supplied with enough egg crate to cover the desired m2 area and aids the installation process as the pipe is easily installed within the prior to screed being poured.
Fastwarm® Water Underfloor Heating systems are the homeowner and installers perfect choice as each kit comes complete with everything you need for installation. With several choices for thermostat control, the system offers great options for all. Systems come with easy-to-follow installation guides and all pipework carries our lifetime warranty (50yr). We have a fully qualified technical support team on stand by ready to take you're call to assist with any installation queries or technical questions.
These Standard Output Water Underfloor Heating Kits are designed to cover the m2 in pipework when spaced at 150mm spacings.
Fastwarm® Water Kits include FastWarm® branded products including pipework, pump, thermostats, and manifolds guaranteeing our seal of quality. This component brand control ensures the lifetime guarantee that comes with Fastwarm® systems. Many similar systems available on the market are simply unbranded or compiled from OEM parts and therefore cannot offer this same quality control.
Fastwarm® Ultra High Output Egg Crate kits include the following: -
Fastwarm® Egg Crate
(14mm-17mm pipe)
Fastwarm® PERT AL PERT 5 Layer Pipework
Includes 50 year pipe guarantee
Fastwarm® Manifold
if 30m2 and above
Grundfos A Rated Pump & Mixing Valve Unit
The compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.
Choice of Thermostat
We have several thermostats available to fit your budget and lifestyle.
Fastwarm® Pipe Cutter
Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.
Edging Insulation
Edge Insulation is to be used around the edge of the room in order to minimise unwanted heat loss, allow for expansion and comply with Building Regulations.
Kit Content Comparison Table
This table shows exactly what you'll get in the box based on your chosen kit size.
| Kit Size (m2) | 15 | 30 | 45 | 60 |
|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | |||
| Isolation/Ball Valve | ||||
| Egg Crate | 15 | 30 | 45 | 60 |
| Edge Insulation | ||||
| Eurocones (16mm) | 4 | 6 | 8 | |
| Fill & Drain Valves | ||||
| Manifold Pump & Mixing Valve Unit | ||||
| Single Circuit Pump & Mixing Valve | ||||
| Manifold Ports | 2 | 3 | 4 | |
| Pipe Length (m) | 100 | 200 | 300 | 400 |
| Pipe Cutters | ||||
| Pipe Rounding Tool | ||||
| Thermostat | 1 | 1 | 1 | 1 |
| Kit Size (m2) | 75 | 90 | 105 | 120 |
|---|---|---|---|---|
| 16mm x 1/2" Male Iron | ||||
| Isolation/Ball Valve | ||||
| Egg Crate | 75 | 90 | 105 | 120 |
| Edge Insulation | ||||
| Eurocones (16mm) | 10 | 12 | 14 | 16 |
| Fill & Drain Valves | ||||
| Manifold Pump & Mixing Valve Unit | ||||
| Single Circuit Pump & Mixing Valve | ||||
| Manifold Ports | 5 | 6 | 7 | 8 |
| Pipe Length (m) | 500 | 600 | 700 | 800 |
| Pipe Cutters | ||||
| Pipe Rounding Tool | ||||
| Thermostat | 1 | 1 | 1 | 1 |
| Kit Size (m2) | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 |
|---|---|---|---|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | |||||||
| Isolation/Ball Valve | ||||||||
| Egg Crate | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 |
| Edge Insulation | ||||||||
| Eurocones (16mm) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | |
| Fill & Drain Valves | ||||||||
| Manifold Pump & Mixing Valve Unit | ||||||||
| Single Circuit Pump & Mixing Valve | ||||||||
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Pipe Length (m) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Pipe Cutters | ||||||||
| Pipe Rounding Tool | ||||||||
| Thermostat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

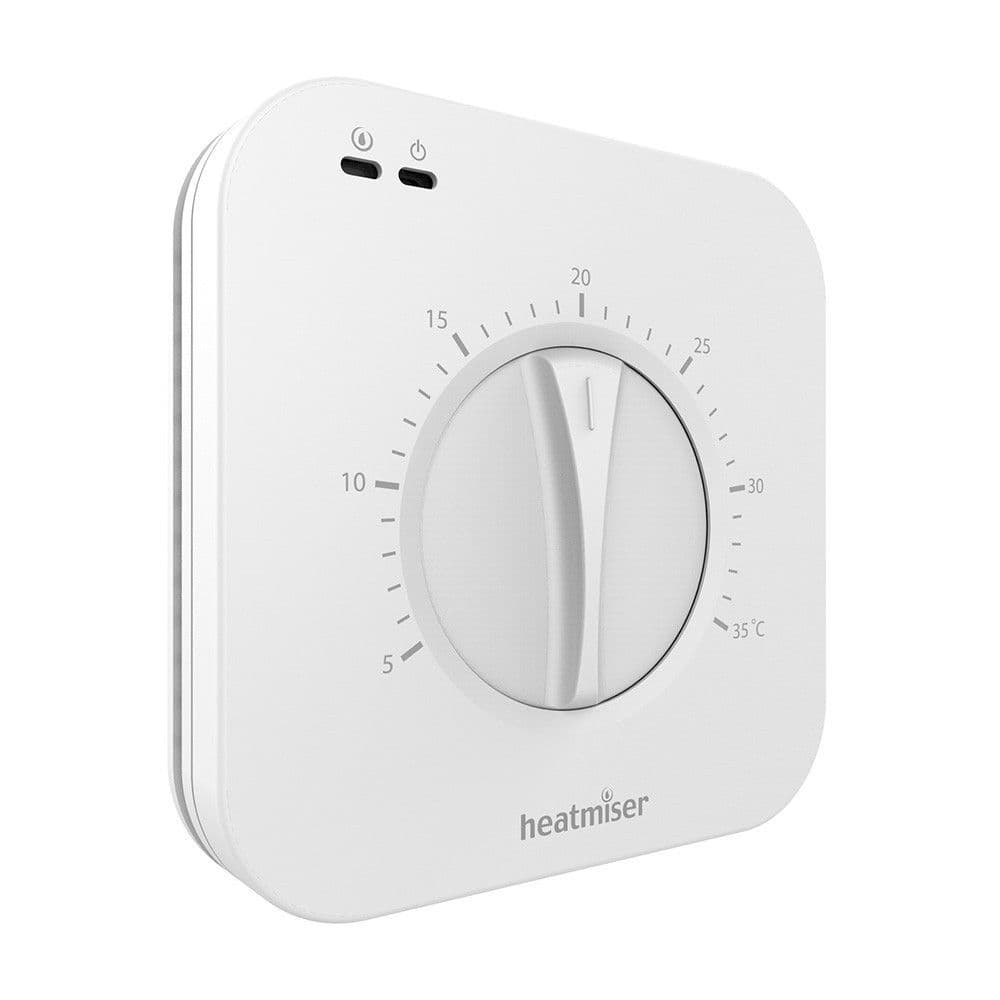

Heatmiser DS1 Manual Thermostat
- Power On & Heat On Indication
- Modern Apperance
- Easily increase or decrease the required temperature
- Variable Switching Differential
- Outputs: Volt free 3A Max
| Dimensions | 92mm x 92mm x 34mm |
|---|---|
| Mounting | Surface mounting |
| Load | 230v |
Heatmiser Slimline Thermostat
- Large Display
- 5/2 Day or 7 Day Programming
- Self Learning Optimum Start
- 4 Comfort Levels per Day
- Temperature Hold Facility
- Holiday Facility
- Automatic Blue Back-Lit Display (Turns off after 30 seconds)
- Flush Mounting
- °C/°F Selectable
- Key Locking
- Frost Protection
- Remote Control Option
| Dimensions | 98mm x 85mm x 13mm |
|---|---|
| Mounting | Flush mounted |
| Load | 12v - volt free 3A Max |
Heatmiser NeoStat Thermostat
- Stunning design incorporating soft touch keys
- Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
- Air, Air & Floor & Floor only sensing modes
- 5 minute program intervals
- Self learning optimum start
- 4 comfort level/ Times per day
- Holiday facility
- Automatic blue back light (turns off after 30 secs)
- Flush mounting
- °C/°F selectable
- Key Code facility
- Frost protection
Fastwarm Wifi
The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.
This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.
Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.
- WIFI Control
- Programmable
- Professional design
- Hold function
- Floor Temperature Limitation
- Power Consumption Monitor (APP)
- Large Screen
| IP rating | IP21 |
|---|---|
| Max Load | 3A |
| Supply voltage | 230v |
