Fastwarm® Solid18 Single Zone Water Underfloor Heating Kits are designed for ultra-low profile retro fit installations in one Zone (area) and come with only one thermostatic controller. Meaning; regardless of how big the area/how many rooms, the system will act as one heating zone throughout and be controlled by one single thermostat. For multiple room or zone control, please refer to the Fastwarm® Solid18 Multi Zone systems.

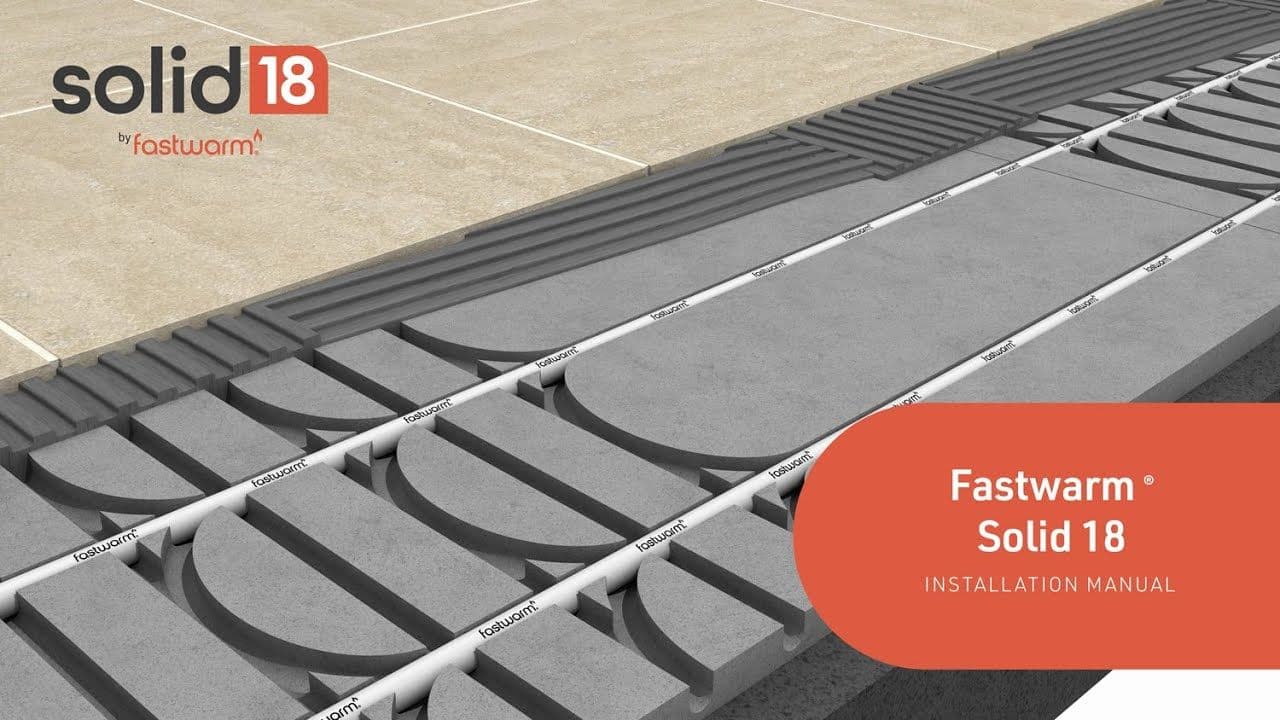

The Fastwarm® Solid18 panels are a gypsum-based panel which is floated across a flat surface allowing the product to be tiled or levelled to directly, without having to adhere panels to the subfloor. The plastic end return panel has multiple snap points to allow loops and leader to be positioned at either end of the room for pipe working to and from the manifold, making FastWarm® Solid18 panel a popular choice for installers and home-owners due to their versatility and multi-purpose application.
The Solid18 panel is approved by ULTRA Tile for use with S2 tile adhesive and MSP Primer, meaning tiles can be applied DIRECTLY to the panel or can be covered with a 10mm bed of Ultra Tile 2-part levelling compound for floor finish such as Wood, LVT/Linos and Carpets.
FastWarm® Solid18 Water Underfloor heating systems are the homeowner and installers perfect choice as each kits comes complete with everything you need in a box with multiple choices of thermostat control. Systems come with an easy-to-follow installation guide and all pipework comes with lifetime (50yr) guarantee. FastWarm® also has a fully qualified technical support team available for on-site queries.
These Single zone water underfloor heating kits are designed to cover the m2 in pipework when spaced at 150mm spacings NB. Pipe is not provided to get to and from from the heat source.
FastWarm® Water Kits include FastWarm® branded products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with FastWarm® systems. There are many similar systems on the market that are simply unbranded or OEM parts.
Fastwarm® SOLID18 Single Zone kits include the following: -
FastWarm® SOLID18 Gypsum Boards
For use with 12mm Pipe
Fastwarm® PEX AL PEX 12mm Pipework
Includes 50 year lifetime guarantee
Fastwarm® Manifold
Size varies depending on m2 coverage
Grundfos A Rated Pump & Mixing Valve Unit
The compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.
Choice of Thermostat
We have several thermostats available to fit your budget and lifestyle.
Fastwarm® Pipe Cutter
Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.
Kit Content Comparison Table
This table shows exactly what you'll get in the box based on your chosen kit size.
| Kit Size (m2) | 20 | 30 | 40 | 50 |
|---|---|---|---|---|
| Pipe Length (m) | 160 | 240 | 320 | 400 |
| Isolation/Ball Valve | ||||
| Eurocones (12mm) | 4 | 6 | 8 | 10 |
| Fill & Drain Valves | ||||
| Jointing Glue | 5 | 7 | 9 | 11 |
| Manifold Pump & Mixing Valve Unit | ||||
| Pipe Cutters | ||||
| Pipe Rounding Tool | ||||
| Solid18 Panels | 42 | 63 | 84 | 105 |
| Manifold Ports | 2 | 3 | 4 | 5 |
| Kit Size (m2) | 60 | 70 | 80 | 90 |
|---|---|---|---|---|
| Pipe Length (m) | 480 | 560 | 640 | 720 |
| Isolation/Ball Valve | ||||
| Eurocones (12mm) | 12 | 14 | 16 | 18 |
| Fill & Drain Valves | ||||
| Jointing Glue | 13 | 15 | 17 | 19 |
| Manifold Pump & Mixing Valve Unit | ||||
| Pipe Cutters | ||||
| Pipe Rounding Tool | ||||
| Solid18 Panels | 125 | 146 | 167 | 188 |
| Manifold Ports | 6 | 7 | 8 | 9 |
| Kit Size (m2) | 100 | 110 | 120 |
|---|---|---|---|
| Pipe Length (m) | 800 | 880 | 960 |
| Isolation/Ball Valve | |||
| Eurocones (12mm) | 20 | 22 | 24 |
| Fill & Drain Valves | |||
| Jointing Glue | 21 | 23 | 25 |
| Manifold Pump & Mixing Valve Unit | |||
| Pipe Cutters | |||
| Pipe Rounding Tool | |||
| Solid18 Panels | 209 | 230 | 250 |
| Manifold Ports | 10 | 11 | 12 |
| Kit Size (m2) | 20 | 30 | 40 | 50 | 60 | 70 |
|---|---|---|---|---|---|---|
| Pipe Length (m) | 160 | 240 | 320 | 400 | 480 | 560 |
| Isolation/Ball Valve | ||||||
| Eurocones (12mm) | 4 | 6 | 8 | 10 | 12 | 14 |
| Fill & Drain Valves | ||||||
| Jointing Glue | 5 | 7 | 9 | 11 | 13 | 15 |
| Manifold Pump & Mixing Valve Unit | ||||||
| Pipe Cutters | ||||||
| Pipe Rounding Tool | ||||||
| Solid18 Panels | 42 | 63 | 84 | 105 | 125 | 146 |
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 |
| Kit Size (m2) | 80 | 90 | 100 | 110 | 120 |
|---|---|---|---|---|---|
| Pipe Length (m) | 640 | 720 | 800 | 880 | 960 |
| Isolation/Ball Valve | |||||
| Eurocones (12mm) | 16 | 18 | 20 | 22 | 24 |
| Fill & Drain Valves | |||||
| Jointing Glue | 17 | 19 | 21 | 23 | 25 |
| Manifold Pump & Mixing Valve Unit | |||||
| Pipe Cutters | |||||
| Pipe Rounding Tool | |||||
| Solid18 Panels | 167 | 188 | 209 | 230 | 250 |
| Manifold Ports | 8 | 9 | 10 | 11 | 12 |
| Kit Size (m2) | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Length (m) | 160 | 240 | 320 | 400 | 480 | 560 | 640 | 720 | 800 | 880 | 960 |
| Isolation/Ball Valve | |||||||||||
| Eurocones (12mm) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Fill & Drain Valves | |||||||||||
| Jointing Glue | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
| Manifold Pump & Mixing Valve Unit | |||||||||||
| Pipe Cutters | |||||||||||
| Pipe Rounding Tool | |||||||||||
| Solid18 Panels | 42 | 63 | 84 | 105 | 125 | 146 | 167 | 188 | 209 | 230 | 250 |
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |

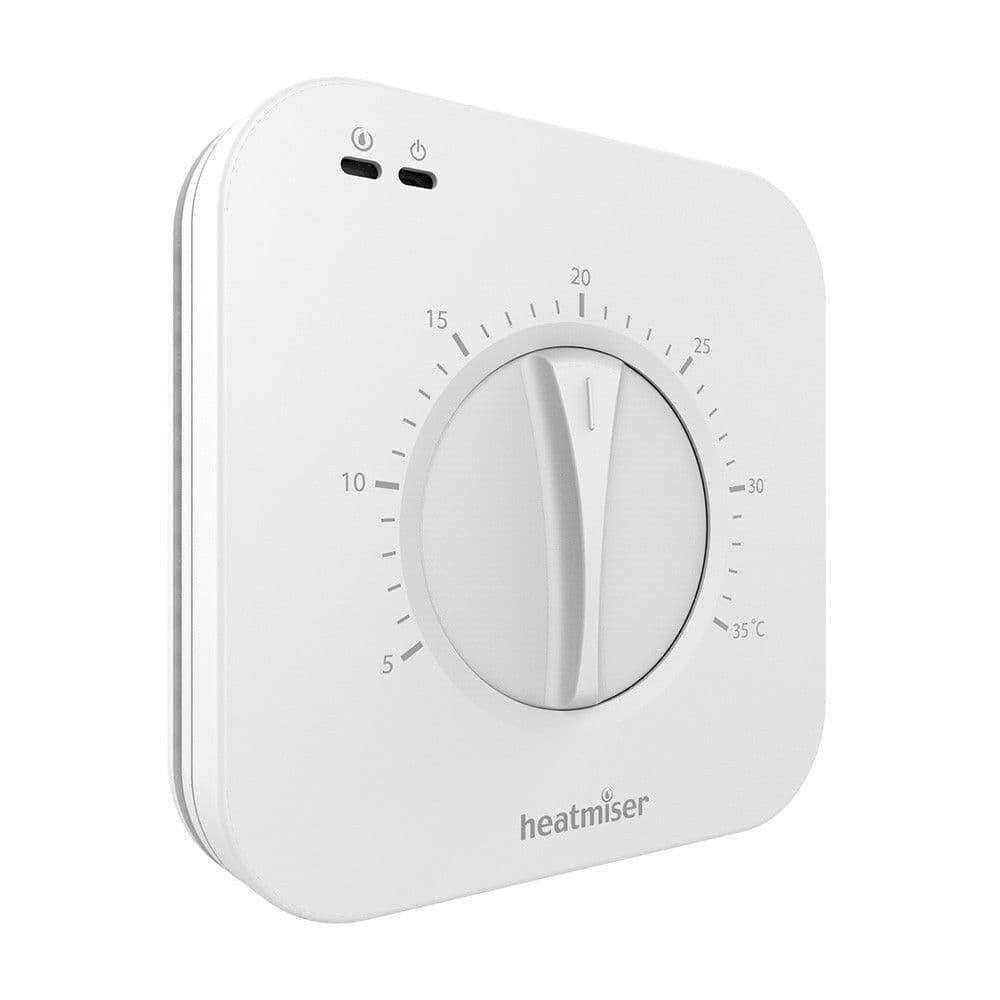

Heatmiser DS1 Manual Thermostat
- Power On & Heat On Indication
- Modern Apperance
- Easily increase or decrease the required temperature
- Variable Switching Differential
- Outputs: Volt free 3A Max
| Dimensions | 92mm x 92mm x 34mm |
|---|---|
| Mounting | Surface mounting |
| Load | 230v |
Heatmiser Slimline Thermostat
- Large Display
- 5/2 Day or 7 Day Programming
- Self Learning Optimum Start
- 4 Comfort Levels per Day
- Temperature Hold Facility
- Holiday Facility
- Automatic Blue Back-Lit Display (Turns off after 30 seconds)
- Flush Mounting
- °C/°F Selectable
- Key Locking
- Frost Protection
- Remote Control Option
| Dimensions | 98mm x 85mm x 13mm |
|---|---|
| Mounting | Flush mounted |
| Load | 12v - volt free 3A Max |
Heatmiser NeoStat Thermostat
- Stunning design incorporating soft touch keys
- Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
- Air, Air & Floor & Floor only sensing modes
- 5 minute program intervals
- Self learning optimum start
- 4 comfort level/ Times per day
- Holiday facility
- Automatic blue back light (turns off after 30 secs)
- Flush mounting
- °C/°F selectable
- Key Code facility
- Frost protection
Fastwarm Wifi
The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.
This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.
Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.
- WIFI Control
- Programmable
- Professional design
- Hold function
- Floor Temperature Limitation
- Power Consumption Monitor (APP)
- Large Screen
| IP rating | IP21 |
|---|---|
| Max Load | 3A |
| Supply voltage | 230v |
