Fastwarm - Multi Zone Water Underfloor Heating Kit
Fastwarm - Multi Zone Water Underfloor Heating Kit
10% off
Wras Approved Product
Fastwarm - Multi Zone Water Underfloor Heating Kit

Fastwarm - Multi Zone Water Underfloor Heating Kit

Fastwarm Multi Zone Water Underfloor Heating Kits are designed for multiple zones and whole home applications such as new builds or whole home renovations. Multiple thermostats supplied in each kit allow for individual room control.

Fastwarm Multi Zone Water Underfloor Heating Kits are based on 200mm pipe centres.

Multi Zone Systems are supplied with Fastwarm Pipe Staples for use within a screed.

Kit sizes range from 40m2 to 200m2

£824.99
Save
£82.00
Our Price
£742.99
each
inc vat
50 Year Pipe Warranty
Thermostat Choice
Made in Europe
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description
Fastwarm 50 Year Pipe Guarantee

Fastwarm Multi Zone Water Underfloor Heating Kits are designed for multiple zones and whole home applications such as new builds or whole home renovations. Allowing for individual room control using multiple thermostats for each system to set different temperatures and times accordingly.

Each system is designed based on 20m2 per zone and one controller per zone.

For example 80m2 = 4 zones = 4 thermostats. For bespoke systems please contact sales@fastwarm.com

Fastwarm Water Underfloor heating systems are the homeowner and installers perfect choice as each kits comes complete with everything you need in a box with a multiple of different choice of thermostat control. Systems comes with easy-to-follow installation guides and all pipework comes with lifetime (50yr) guarantee. Fastwarm also has a fully qualified technical support team available for on-site queries.

These Mulit zone water underfloor heating kits are designed to cover the m2 in pipework when spaced at 200mm spacings NB. Pipe is not provided to get to and back from the heat source.

Fastwarm Water Kits include FASTWARM BRANDED products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with Fastwarm systems. There are many similar systems on the market that are simply unbranded or OEM parts.

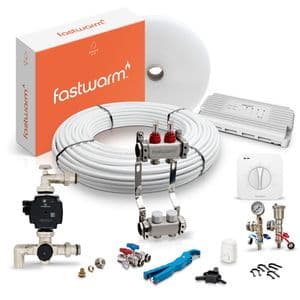

Fastwarm Multi Zone kits include the following: -

Fastwarm Pert Al Pert 5 Layer Pipework

Fastwarm Pert Al Pert 5 Layer Pipework

Includes 50 year lifetime guarantee

Fastwarm Manifold

Fastwarm Manifold

Size varies depending on m2 coverage

Grundfos A Rated Pump & Mixing Valve Unit

Grundfos A Rated Pump & Mixing Valve Unit

The ESBE compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.

Choice of Thermostat

Choice of Thermostat

We have several thermostats available to fit your budget and lifestyle.

Wiring Centre

Wiring Centre

4 or 8 zone dependant on size.

Thermal Actuators

Thermal Actuators

To control each zone independently.

Fastwarm Pipe Staples

Fastwarm Pipe Staples

Box of 300 (Qty suited to m2 of kit)

Fastwarm Perimeter Edge Insulation

Fastwarm Edge Insulation

To be used around the edge of the room to comply with Building Regulations. Dimensions: 8mm x 150mm x 25m

Fastwarm Pipe Cutter

Fastwarm Pipe Cutter

Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.

Kit Content Comparison Table

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2)406080100120
Isolation/Ball Valve
Edge Insulation22
Eurocones (16mm)4681012
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Length (m)200300400500600
Pipe Cutters
Pipe Staples12234

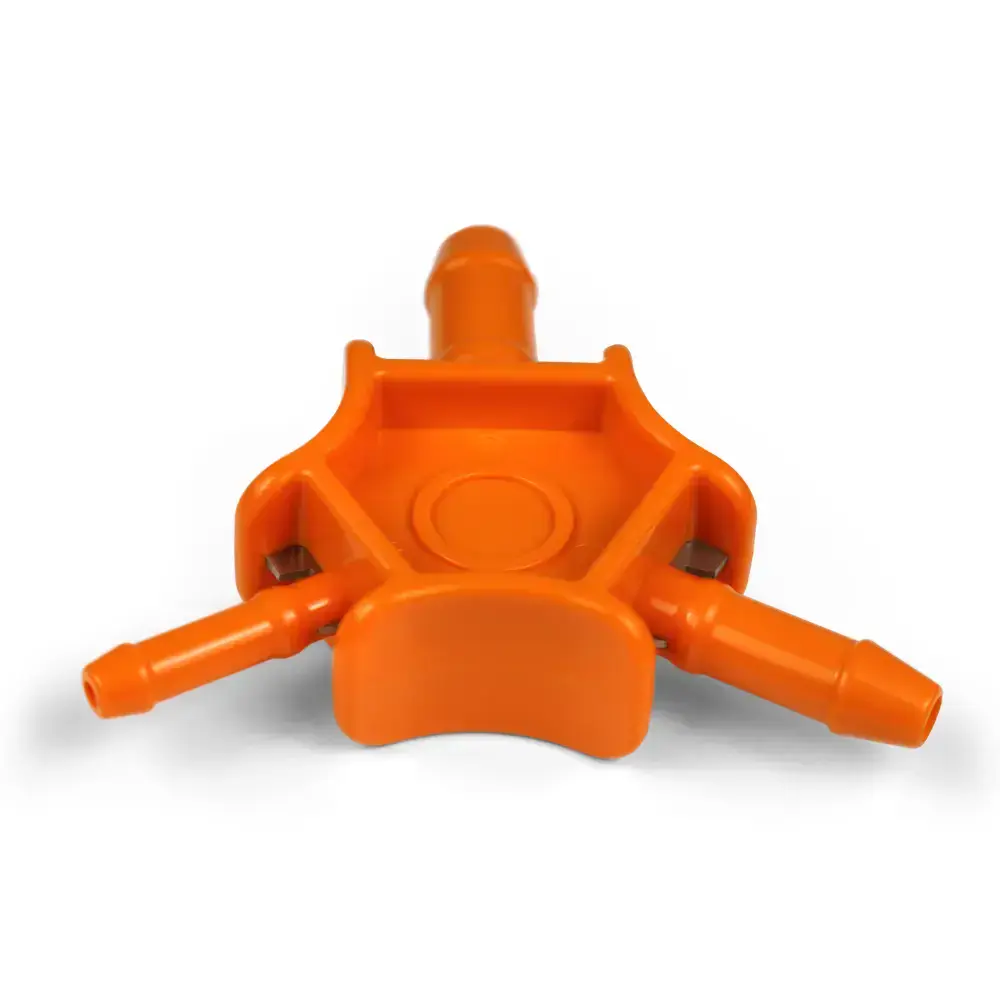

Pipe Rounding Tool
Thermal Actuator23456
Manifold Ports23456
4 Port Wiring Centre
8 Port Wiring Centre
Kit Size (m2)140160180200
Isolation/Ball Valve
Edge Insulation2334
Eurocones (16mm)14161820
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Length (m)7008009001000
Pipe Cutters
Pipe Staples3344
Pipe Rounding Tool
Thermal Actuator78910
Manifold Ports78910
4 Port Wiring Centre
8 Port Wiring Centre
Kit Size (m2)406080100120140160180200
Isolation/Ball Valve
Edge Insulation222334
Eurocones (16mm)468101214161820
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Length (m)2003004005006007008009001000
Pipe Cutters
Pipe Staples122343344
Pipe Rounding Tool
Thermal Actuator2345678910
Manifold Ports2345678910
4 Port Wiring Centre
8 Port Wiring Centre

Installation Guide
  1. Select a suitable location for the pump & manifold unit and mount on the wall.

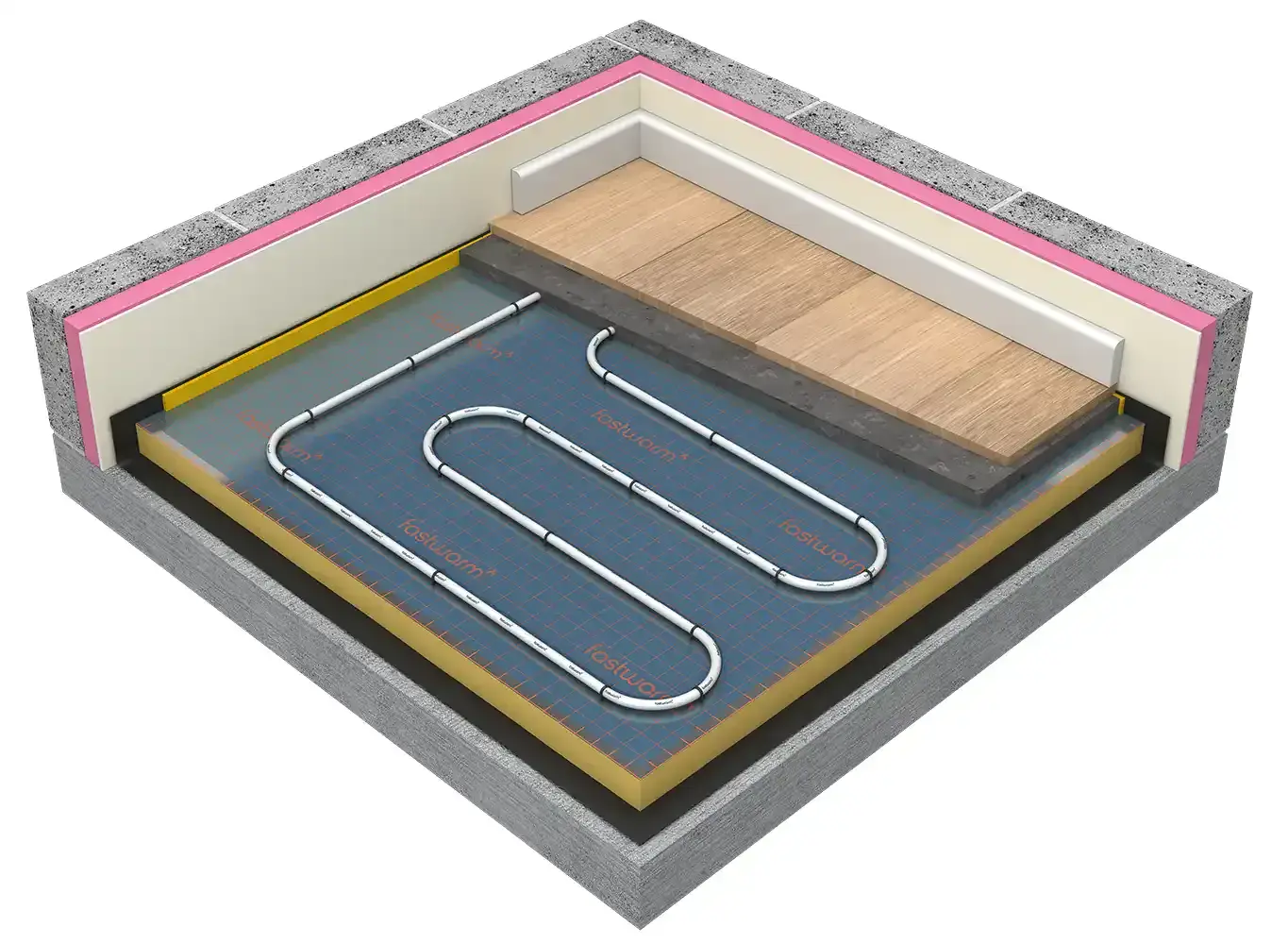

  2. Lay the pipe as planned, fixing every 0.5m onto PIR Insulation base and return to the manifold. Note on loops there will be a requirement for more fixing to hold pipe in place.
  3. To lay the circuit, cut the pipe end squarely using the plastic pipe cutter, re-round the pipe end with the tool provided, place the nut over the pipe, ensure the olive and insert is fully fitted over the end of the pipe and the assembly is attached to the manifold. Tighten the nut using an open end spanner. Do not over tighten.
  4. Prevent people from walking on the pipes, keep tools etc away from the pipes and use running boards. The pipe is very tough, but it is better to be safe than sorry.
  5. It is IMPORTANT that the underfloor heating system is properly filled with water (use a garden hose) and purged completely of air to ensure correct operation, .
  6. IT IS NOT ADEQUATE TO FILL THE SYSTEM USING THE BOILER FILLING LOOP!

Product Specification
Fastwarm underfloor heating pipe diagram
UFH Pipe Composition

Fastwarm™ water Systems provide the following:

  • Grundfos Pump with Reputable ESBE Mixing Valves link datasheet
  • High Specification 16mm x 2mm PERT AL PERT pipe - Perfect for Underfloor Heating. link datasheet
  • Highly Engineered Fastwarm™ Stainless steel manifolds available from 2-12 ports.
  • Fastwarm™ Manifold accessories including 16mm Eurocone, Ball Valve Pair, Fill and Drain valves with Pressure Gauge and AAV as standard.
  • 60mm pipe staples for easy application onto PIR insulation.
  • Perimeter Insulation to reduce thermal bridging.
  • Cutting tool and Pipe re rounding tool supplied with all kits
  • Multiple Thermostat choice and wiring centres offering Lifetime Warranty on Fastwarm range
  • Ideal solution for low temperature systems such as Heat Pumps

Thermostat Options

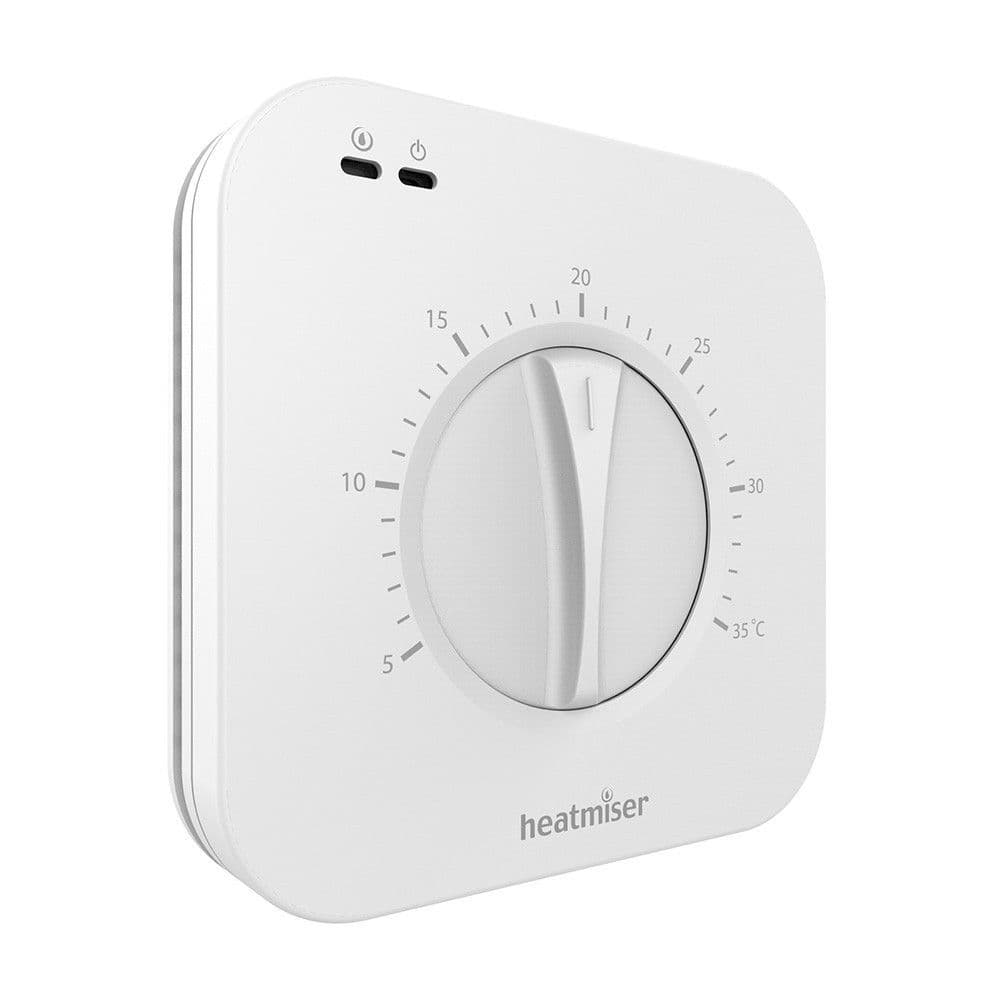

Heatmiser DS1 Manual Thermostat

Heatmiser DS1 Manual Thermostat

  • Power On & Heat On Indication
  • Modern Apperance
  • Easily increase or decrease the required temperature
  • Variable Switching Differential
  • Outputs: Volt free 3A Max
Dimensions 92mm x 92mm x 34mm
Mounting Surface mounting
Load 230v
Heatmiser Slimline Thermostat

Heatmiser Slimline Thermostat

  • Large Display
  • 5/2 Day or 7 Day Programming
  • Self Learning Optimum Start
  • 4 Comfort Levels per Day
  • Temperature Hold Facility
  • Holiday Facility
  • Automatic Blue Back-Lit Display (Turns off after 30 seconds)
  • Flush Mounting
  • °C/°F Selectable
  • Key Locking
  • Frost Protection
  • Remote Control Option
Dimensions 98mm x 85mm x 13mm
Mounting Flush mounted
Load 12v - volt free 3A Max
Heatmiser NeoStat

Heatmiser NeoStat Thermostat

  • Stunning design incorporating soft touch keys
  • Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
  • Air, Air & Floor & Floor only sensing modes
  • 5 minute program intervals
  • Self learning optimum start
  • 4 comfort level/ Times per day
  • Holiday facility
  • Automatic blue back light (turns off after 30 secs)
  • Flush mounting
  • °C/°F selectable
  • Key Code facility
  • Frost protection
Fastwarm® Wifi Thermostat

Fastwarm Wifi

The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.

This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.

Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.

  • WIFI Control
  • Programmable
  • Professional design
  • Hold function
  • Floor Temperature Limitation
  • Power Consumption Monitor (APP)
  • Large Screen
IP rating IP21
Max Load 3A
Supply voltage 230v
