Fastwarm - Multi Zone Spreader Plate Water Kit
Fastwarm - Multi Zone Spreader Plate Water Kit
10% off
Wras Approved Product

Fastwarm - Multi Zone Spreader Plate Water Kit

Fastwarm® Multi Zone Water Underfloor Heating Spreader Plate Kits are designed for multiple zones and whole home applications such as new builds or whole home renovations. Allowing for individual room control using multiple thermostats for each system to set different temperatures and times accordingly.

£1,693.99
Save
£169.00
Our Price
£1,524.99
each
inc vat
50 Year Pipe Warranty
Thermostat Choice
Made in Europe
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description
Fastwarm 50 Year Pipe Guarantee

Fastwarm® Multi Zone Water Underfloor Heating Spreader Plate Kits are designed for multiple zones and whole home applications such as new builds or whole home renovations. Allowing for individual room control using multiple thermostats for each system to set different temperatures and times accordingly.

Each system is designed based on 20m2 per zone and one controller per zone.

For example Äì 80m2 = 4 zones = 4 thermostats. For bespoke systems please contact sales@fastwarm.com

Fastwarm Aluminium spreader plates are 390mm x 1000mm x 0.5mm (groove depth: 16mm) diffuser plates suitable for joist centres of 400mm and are based at 200m.

Fastwarms 16mm Pert Pipe is fixed in the grooves of the plates, insulation is placed in the void below the plates to minimize downward heat loss and dissipate the heat even across the floor evenly.

FastWarm® Spreader Plate Water Underfloor heating systems are the homeowner and installers perfect choice as each kits comes complete with everything you need in a box with a multiple of different choice of thermostat control. Systems come with an easy-to-follow installation guide and all pipework comes with lifetime (50yr) guarantee. FastWarm® also has a fully qualified technical support team available for on-site queries.

These Mulit zone water underfloor heating kits are designed to cover the m2 in pipework when spaced at 200mm spacings NB. Pipe is not provided to get to and back from the heat source.

FastWarm® Water Kits include FastWarm® branded products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with FastWarm® systems. There are many similar systems on the market that are simply

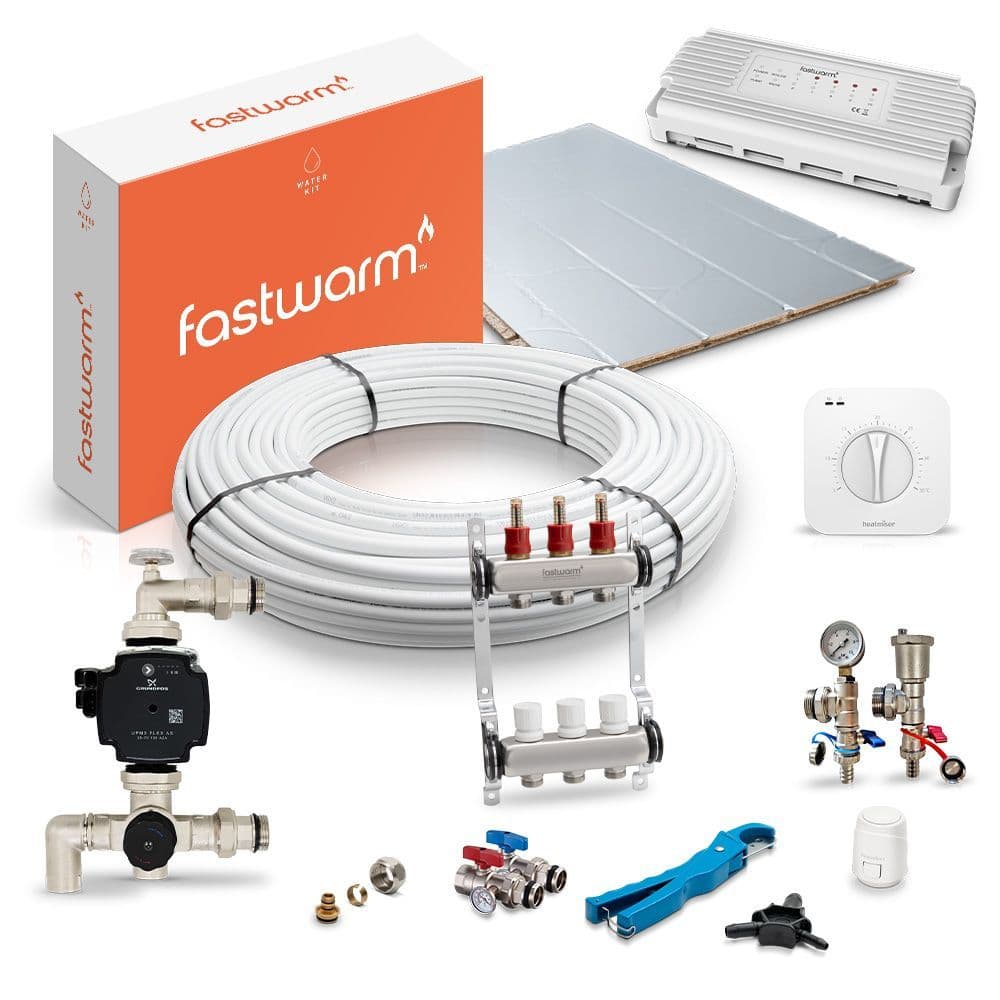

Fastwarm® Multi Zone Spreader Plate kits include the following: -

FastWarm® Spreader Plates

FastWarm® Spreader Plates

Spreader plates are laid across traditional joists and fixed in place using a hand stapler

Fastwarm® Pert Al Pert 5 Layer Pipework

Fastwarm® Pert Al Pert 5 Layer Pipework

Includes 50 year lifetime guarantee

Fastwarm® Manifold

Fastwarm® Manifold

Size varies depending on m2 coverage

Grundfos A Rated Pump & Mixing Valve Unit

Grundfos A Rated Pump & Mixing Valve Unit

The ESBE compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.

Choice of Thermostat

Choice of Thermostat

We have several thermostats available to fit your budget and lifestyle.

Wiring Centre

Wiring Centre

4 or 8 zone dependant on size.

Thermal Actuators

Thermal Actuators

To control each zone independently.

Fastwarm® Perimeter Edge Insulation

Fastwarm® Edge Insulation

To be used around the edge of the room to comply with Building Regulations. Dimensions: 8mm x 150mm x 25m

Fastwarm® Pipe Cutter

Fastwarm® Pipe Cutter

Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.

Kit Content Comparison Table

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2)406080100120
Isolation/Ball Valve
Edge Insulation11122
Eurocones (16mm)4681012
Fill & Drain Valves
Thermal Actuator23456
Manifold Pump & Mixing Valve Unit
Manifold Ports23456
Pipe Length (m)200300400500600
Pipe Cutters
Pipe Rounding Tool
10 Port Wiring Centre
Spreader Plates103154206308308
Thermostat23456
Kit Size (m2)140160180200
Isolation/Ball Valve
Edge Insulation2334
Eurocones (16mm)14161820
Fill & Drain Valves
Thermal Actuator78910
Manifold Pump & Mixing Valve Unit
Manifold Ports78910
Pipe Length (m)7008009001000
Pipe Cutters
Pipe Rounding Tool
10 Port Wiring Centre
Spreader Plates359411462513
Thermostat78910
Kit Size (m2)406080100120140160180200
Isolation/Ball Valve
Edge Insulation111222334
Eurocones (16mm)468101214161820
Fill & Drain Valves
Thermal Actuator2345678910
Manifold Pump & Mixing Valve Unit
Manifold Ports2345678910
Pipe Length (m)2003004005006007008009001000
Pipe Cutters
Pipe Rounding Tool
10 Port Wiring Centre
Spreader Plates103154206308308359411462513
Thermostat2345678910

Thermostat Options

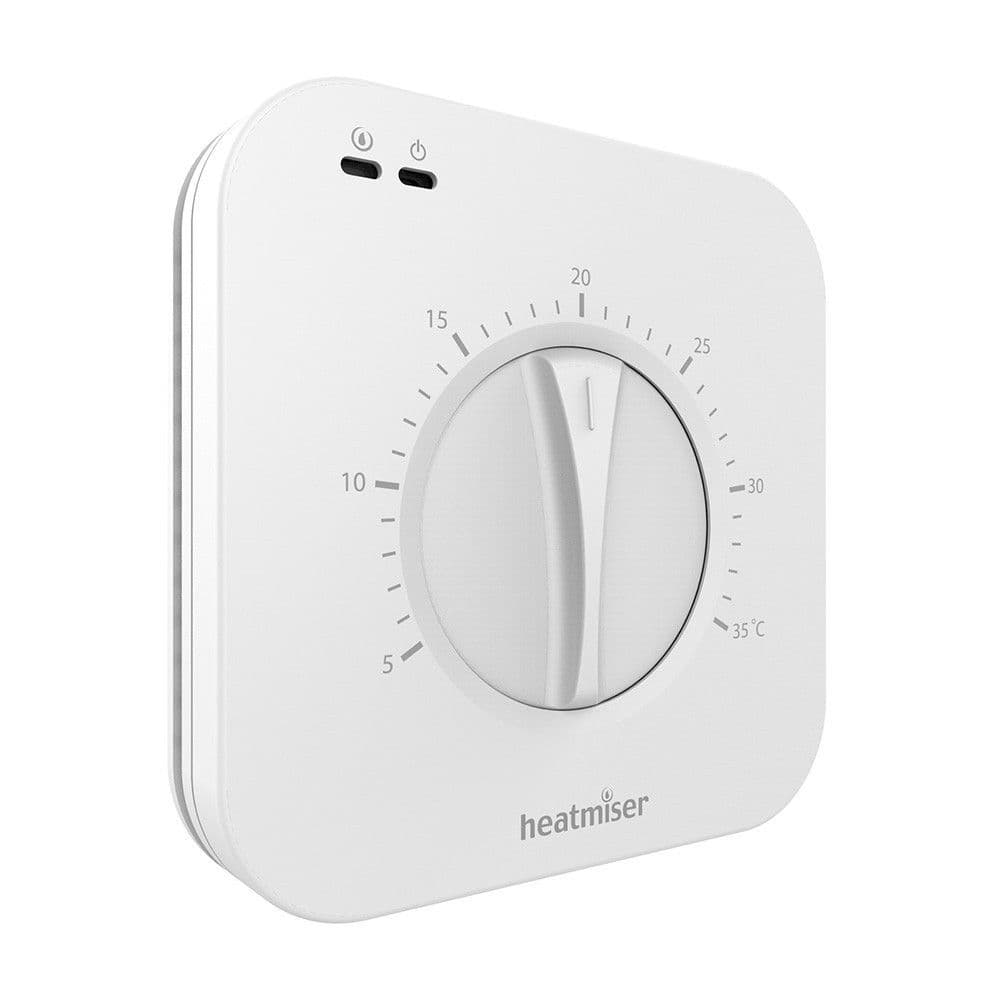

Heatmiser DS1 Manual Thermostat

Heatmiser DS1 Manual Thermostat

  • Power On & Heat On Indication
  • Modern Apperance
  • Easily increase or decrease the required temperature
  • Variable Switching Differential
  • Outputs: Volt free 3A Max
Dimensions 92mm x 92mm x 34mm
Mounting Surface mounting
Load 230v
Heatmiser Slimline Thermostat

Heatmiser Slimline Thermostat

  • Large Display
  • 5/2 Day or 7 Day Programming
  • Self Learning Optimum Start
  • 4 Comfort Levels per Day
  • Temperature Hold Facility
  • Holiday Facility
  • Automatic Blue Back-Lit Display (Turns off after 30 seconds)
  • Flush Mounting
  • °C/°F Selectable
  • Key Locking
  • Frost Protection
  • Remote Control Option
Dimensions 98mm x 85mm x 13mm
Mounting Flush mounted
Load 12v - volt free 3A Max
Heatmiser NeoStat

Heatmiser NeoStat Thermostat

  • Stunning design incorporating soft touch keys
  • Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
  • Air, Air & Floor & Floor only sensing modes
  • 5 minute program intervals
  • Self learning optimum start
  • 4 comfort level/ Times per day
  • Holiday facility
  • Automatic blue back light (turns off after 30 secs)
  • Flush mounting
  • °C/°F selectable
  • Key Code facility
  • Frost protection
Fastwarm® Wifi Thermostat

Fastwarm Wifi

The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.

This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.

Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.

  • WIFI Control
  • Programmable
  • Professional design
  • Hold function
  • Floor Temperature Limitation
  • Power Consumption Monitor (APP)
  • Large Screen
IP rating IP21
Max Load 3A
Supply voltage 230v
