Fastwarm® Multi Zone Clip Track Water Underfloor Heating Kits are designed for multiple zones and whole home applications such as new builds or whole home renovations. Allowing for individual room control using multiple thermostats for each system to set different temperatures and times accordingly.
Utilising Fastwarm 1m Clip Track this option provides a easy to install fixing track where insulation may be at less of a depth. Each clip in which pipe is inserted is spaced at 50mm interval making this and ideal solution for in screed applications.
These Mulit zone water underfloor heating kits are designed to cover the m2 in pipework when spaced at 200mm spacings NB. Pipe is not provided to get to and back from the heat source.
Each system is designed based on 20m2 per zone and one controller per zone.
For example Äì 80m2 = 4 zones = 4 thermostats. For bespoke systems please contact sales@fastwarm.com
Fastwarm® Multi Zone Clip Track Water Underfloor Heating systems are the homeowner and installers perfect choice as each kits comes complete with everything you need in a box with a multiple of different choice of thermostat control. Systems comes with easy-to-follow installation guides and all pipework comes with lifetime (50yr) guarantee. Fastwarm® also has a fully qualified technical support team available for on-site queries.
Fastwarm® Water Kits include FASTWARM BRANDED products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with Fastwarm® systems. There are many similar systems on the market that are simply unbranded or OEM parts.

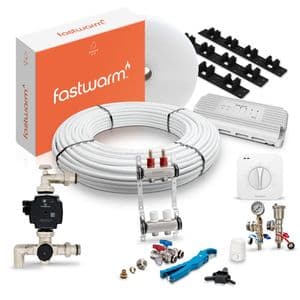

Fastwarm® Multi Zone Clip Track kits include the following: -
Fastwarm® Clip Rail
For quickly installing 16mm pipe in any configuration.
Fastwarm® Pert Al Pert 5 Layer Pipework
Includes 50 year lifetime guarantee
Fastwarm® Manifold
Size varies depending on m2 coverage
Grundfos A Rated Pump & Mixing Valve Unit
The ESBE compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.
Choice of Thermostat
We have several thermostats available to fit your budget and lifestyle.
Wiring Centre
4 or 8 zone dependant on size.
Thermal Actuators
To control each zone independently.
Fastwarm® Edge Insulation
To be used around the edge of the room to comply with Building Regulations. Dimensions: 8mm x 150mm x 25m
Fastwarm® Pipe Cutter
Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.
Kit Content Comparison Table
This table shows exactly what you'll get in the box based on your chosen kit size.
| Kit Size (m2) | 40 | 60 | 80 | 100 | 120 |
|---|---|---|---|---|---|
| Isolation/Ball Valve | |||||
| Clip Track | 60 | 90 | 120 | 150 | 180 |
| Edge Insulation | 1 | 1 | 1 | 2 | 2 |
| Eurocones (16mm) | 4 | 6 | 8 | 10 | 12 |
| Fill & Drain Valves | |||||
| Thermal Actuator | 2 | 3 | 4 | 5 | 6 |
| Manifold Pump & Mixing Valve Unit | |||||
| Manifold Ports | 2 | 3 | 4 | 5 | 6 |
| Pipe Length (m) | 200 | 300 | 400 | 500 | 600 |
| Pipe Cutters | |||||
| Pipe Rounding Tool | |||||
| Thermostats | 2 | 3 | 4 | 5 | 6 |
| 10 Port Wiring Centre |
| Kit Size (m2) | 140 | 160 | 180 | 200 |
|---|---|---|---|---|
| Isolation/Ball Valve | ||||
| Clip Track | 210 | 240 | 270 | 300 |
| Edge Insulation | 2 | 3 | 3 | 4 |
| Eurocones (16mm) | 14 | 16 | 18 | 20 |
| Fill & Drain Valves | ||||
| Thermal Actuator | 7 | 8 | 9 | 10 |
| Manifold Pump & Mixing Valve Unit | ||||
| Manifold Ports | 7 | 8 | 9 | 10 |
| Pipe Length (m) | 700 | 800 | 900 | 1000 |
| Pipe Cutters | ||||
| Pipe Rounding Tool | ||||
| Thermostats | 7 | 8 | 9 | 10 |
| 10 Port Wiring Centre |
| Kit Size (m2) | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|
| Isolation/Ball Valve | |||||||||
| Clip Track | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 |
| Edge Insulation | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 |
| Eurocones (16mm) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Fill & Drain Valves | |||||||||
| Thermal Actuator | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Manifold Pump & Mixing Valve Unit | |||||||||
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Pipe Length (m) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Pipe Cutters | |||||||||
| Pipe Rounding Tool | |||||||||
| Thermostats | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 10 Port Wiring Centre |
- Select a suitable location for the pump & manifold unit and mount on the wall.
- Clipping the 1m sections together to create one continous length space runs at 750mm spacing apart using the self adhesive backing to adhere to the floor.
- Lay the pipe as planned, fixing every 150mm or 200mm spacing depending on the system purchase, compressing pipe into the manufactured grippers.
- To lay the circuit, cut the pipe end squarely using the plastic pipe cutter, re-round the pipe end with the tool provided, place the nut over the pipe, ensure the olive and insert is fully fitted over the end of the pipe and the assembly is attached to the manifold. Tighten the nut using an open end spanner. Do not over tighten.
- Prevent people from walking on the pipes, keep tools etc away from the pipes and use running boards. The pipe is very tough, but it is better to be safe than sorry.
- It is IMPORTANT that the underfloor heating system is properly filled with water (use a garden hose) and purged completely of air to ensure correct operation. IT IS NOT ADEQUATE TO FILL THE SYSTEM USING THE BOILER FILLING LOOP!
- Easy Installation:
- The clip rail track features a self-adhesive backing, allowing for quick and hassle-free installation. It can be securely mounted to the subfloor, providing a stable base for the pipework.
- Secure Pipework Fixing:
- Once the clip rail track is in place, the (15mm/16mm) pipework can be easily clipped into position, ensuring a secure and reliable fixing. This helps to prevent any movement or displacement of the pipework during and after installation.
- Optimal Heat Distribution:
- By securely holding the pipework in place, the clip rail track ensures that the warm water flows evenly throughout the underfloor heating system. This results in efficient and consistent heat distribution across the entire floor surface.
- Quantity Calculation:
- The required quantity of clip rail track can be easily determined by multiplying the area in square meters (m2) by 1.5. For example, if you have a floor area of 30m2, you would need 45 clip rail lengths to cover the entire space.

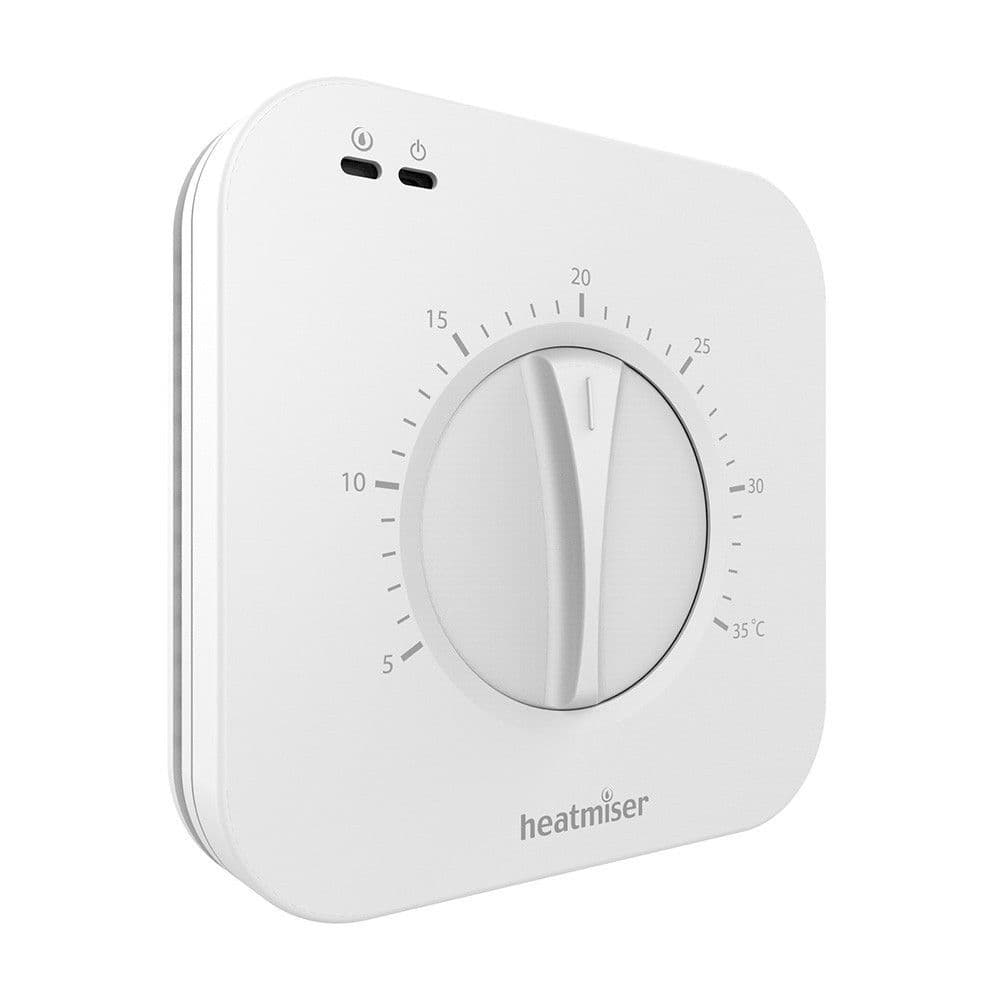

Heatmiser DS1 Manual Thermostat
- Power On & Heat On Indication
- Modern Apperance
- Easily increase or decrease the required temperature
- Variable Switching Differential
- Outputs: Volt free 3A Max
| Dimensions | 92mm x 92mm x 34mm |
|---|---|
| Mounting | Surface mounting |
| Load | 230v |
Heatmiser Slimline Thermostat
- Large Display
- 5/2 Day or 7 Day Programming
- Self Learning Optimum Start
- 4 Comfort Levels per Day
- Temperature Hold Facility
- Holiday Facility
- Automatic Blue Back-Lit Display (Turns off after 30 seconds)
- Flush Mounting
- °C/°F Selectable
- Key Locking
- Frost Protection
- Remote Control Option
| Dimensions | 98mm x 85mm x 13mm |
|---|---|
| Mounting | Flush mounted |
| Load | 12v - volt free 3A Max |
Heatmiser NeoStat Thermostat
- Stunning design incorporating soft touch keys
- Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
- Air, Air & Floor & Floor only sensing modes
- 5 minute program intervals
- Self learning optimum start
- 4 comfort level/ Times per day
- Holiday facility
- Automatic blue back light (turns off after 30 secs)
- Flush mounting
- °C/°F selectable
- Key Code facility
- Frost protection
Fastwarm Wifi
The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.
This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.
Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.
- WIFI Control
- Programmable
- Professional design
- Hold function
- Floor Temperature Limitation
- Power Consumption Monitor (APP)
- Large Screen
| IP rating | IP21 |
|---|---|
| Max Load | 3A |
| Supply voltage | 230v |
