Fastwarm are the professional's choice.
Fastwarm High Output Water Underfloor Heating Kits are designed for installation in high heat loss areas such as conservatories or rooms with many external walls and lots of glass etc as pipe centres are @ 200mm spacings. When heating rooms with lower heat loss, our Standard Output systems are more suitable (250mm spacing)
These High Output Single Zone systems are designed for use in one Zone (area) and come with only one thermostatic controller - meaning, regardless of how big the area/how many rooms, the system will act as a single unit and be controlled as one zone. For multiple room or zone control we offer the Fastwarm Multi Zone systems
Fastwarm Water Underfloor Heating systems are the homeowner and installers perfect choice as each kit comes complete with everything you need for installation. With several choices for thermostat control, the system offers great options for all. Systems come with easy-to-follow installation guides and all pipework carries our lifetime warranty (50yr). We have a fully qualified technical support team on stand by ready to take you're call to assist with any installation queries or technical questions.
These High Output Water Underfloor Heating Kits are designed to cover the m2 in pipework when spaced at 200mm spacings.
Fastwarm Water Kits include FastWarm branded products including pipework, pump, thermostats, and manifolds guaranteeing our seal of quality. This component brand control ensures the lifetime guarantee that comes with Fastwarm systems. Many similar systems available on the market are simply unbranded or compiled from OEM parts and therefore cannot offer this same quality control.

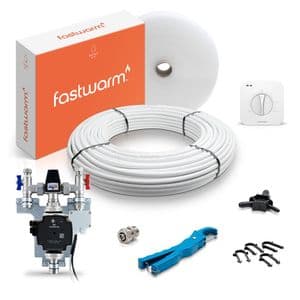

FastWarm High Output kits include the following: -
Fastwarm Pert Al Pert 5 Layer Pipework
Includes 50 year lifetime guarantee
Fastwarm Manifold
if 30m2 and above
Grundfos A Rated Pump & Mixing Valve Unit
The ESBE compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.
Choice of Thermostat
We have several thermostats available to fit your budget and lifestyle.
Fastwarm Pipe Staples
Box of 300 (Qty suited to m2 of kit)
Fastwarm Edge Insulation
To be used around the edge of the room to comply with Building Regulations. Dimensions: 8mm x 150mm x 25m
Fastwarm Pipe Cutter
Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.
This table shows exactly what you'll get in the box based on your chosen kit size.
| Kit Size (m2) | 10 | 12 | 14 | 16 | 18 |
|---|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | 2 | 2 | 2 | 2 |
| Edge Insulation | |||||
| Single Circuit Pump & Mixing Valve | |||||
| Pipe Length (m) | 50 | 60 | 70 | 80 | 90 |
| Pipe Cutters | |||||
| Pipe Staples | 1 | 1 | 1 | 1 | 1 |
| Pipe Rounding Tool | |||||
| Manifold Ports | |||||
| Manifold Pump & Mixing Valve Unit |
| Kit Size (m2) | 20 | 22 | 24 | 30 | 40 |
|---|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | 2 | 2 | ||
| Edge Insulation | |||||
| Single Circuit Pump & Mixing Valve | |||||
| Pipe Length (m) | 100 | 110 | 120 | 150 | 200 |
| Pipe Cutters | |||||
| Pipe Staples | 1 | 1 | 1 | 1 | 1 |
| Pipe Rounding Tool | |||||
| Manifold Ports | 2 | 2 | |||
| Manifold Pump & Mixing Valve Unit |
| Kit Size (m2) | 50 | 60 | 70 | 80 |
|---|---|---|---|---|
| 16mm x 1/2" Male Iron | ||||
| Edge Insulation | ||||
| Single Circuit Pump & Mixing Valve | ||||
| Pipe Length (m) | 250 | 300 | 350 | 400 |
| Pipe Cutters | ||||
| Pipe Staples | 2 | 2 | 2 | 2 |
| Pipe Rounding Tool | ||||
| Manifold Ports | 3 | 3 | 4 | 4 |
| Manifold Pump & Mixing Valve Unit |
| Kit Size (m2) | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
|---|---|---|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Edge Insulation | |||||||
| Single Circuit Pump & Mixing Valve | |||||||
| Pipe Length (m) | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
| Pipe Cutters | |||||||
| Pipe Staples | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pipe Rounding Tool | |||||||
| Manifold Ports | |||||||
| Manifold Pump & Mixing Valve Unit |
| Kit Size (m2) | 24 | 30 | 40 | 50 | 60 | 70 | 80 |
|---|---|---|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | ||||||
| Edge Insulation | |||||||
| Single Circuit Pump & Mixing Valve | |||||||
| Pipe Length (m) | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Pipe Cutters | |||||||
| Pipe Staples | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Pipe Rounding Tool | |||||||
| Manifold Ports | 2 | 2 | 3 | 3 | 4 | 4 | |
| Manifold Pump & Mixing Valve Unit |
| Kit Size (m2) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 30 | 40 | 50 | 60 | 70 | 80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16mm x 1/2" Male Iron | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| Edge Insulation | ||||||||||||||
| Single Circuit Pump & Mixing Valve | ||||||||||||||
| Pipe Length (m) | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Pipe Cutters | ||||||||||||||
| Pipe Staples | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Pipe Rounding Tool | ||||||||||||||
| Manifold Ports | 2 | 2 | 3 | 3 | 4 | 4 | ||||||||
| Manifold Pump & Mixing Valve Unit |
- Select a suitable location for the pump & manifold unit and mount on the wall.
- Lay the pipe as planned, fixing every 0.5m onto PIR Insulation base and return to the manifold. Note on loops there will be a requirement for more fixing to hold pipe in place.
- To lay the circuit, cut the pipe end squarely using the plastic pipe cutter, re-round the pipe end with the tool provided, place the nut over the pipe, ensure the olive and insert is fully fitted over the end of the pipe and the assembly is attached to the manifold. Tighten the nut using an open end spanner. Do not over tighten.
- Prevent people from walking on the pipes, keep tools etc away from the pipes and use running boards. The pipe is very tough, but it is better to be safe than sorry.
- It is IMPORTANT that the underfloor heating system is properly filled with water (use a garden hose) and purged completely of air to ensure correct operation, .
- IT IS NOT ADEQUATE TO FILL THE SYSTEM USING THE BOILER FILLING LOOP!
Fastwarm™ water Systems provide the following:
- Grundfos Pump with Reputable ESBE Mixing Valves link datasheet
- High Specification 16mm x 2mm PERT AL PERT pipe - Perfect for Underfloor Heating. link datasheet
- Highly Engineered Fastwarm™ Stainless steel manifolds available from 2-12 ports.
- Fastwarm™ Manifold accessories including 16mm Eurocone, Ball Valve Pair, Fill and Drain valves with Pressure Gauge and AAV as standard.
- 60mm pipe staples for easy application onto PIR insulation.
- Perimeter Insulation to reduce thermal bridging.
- Cutting tool and Pipe re rounding tool supplied with all kits
- Multiple Thermostat choice and wiring centres offering Lifetime Warranty on Fastwarm range
- Ideal solution for low temperature systems such as Heat Pumps

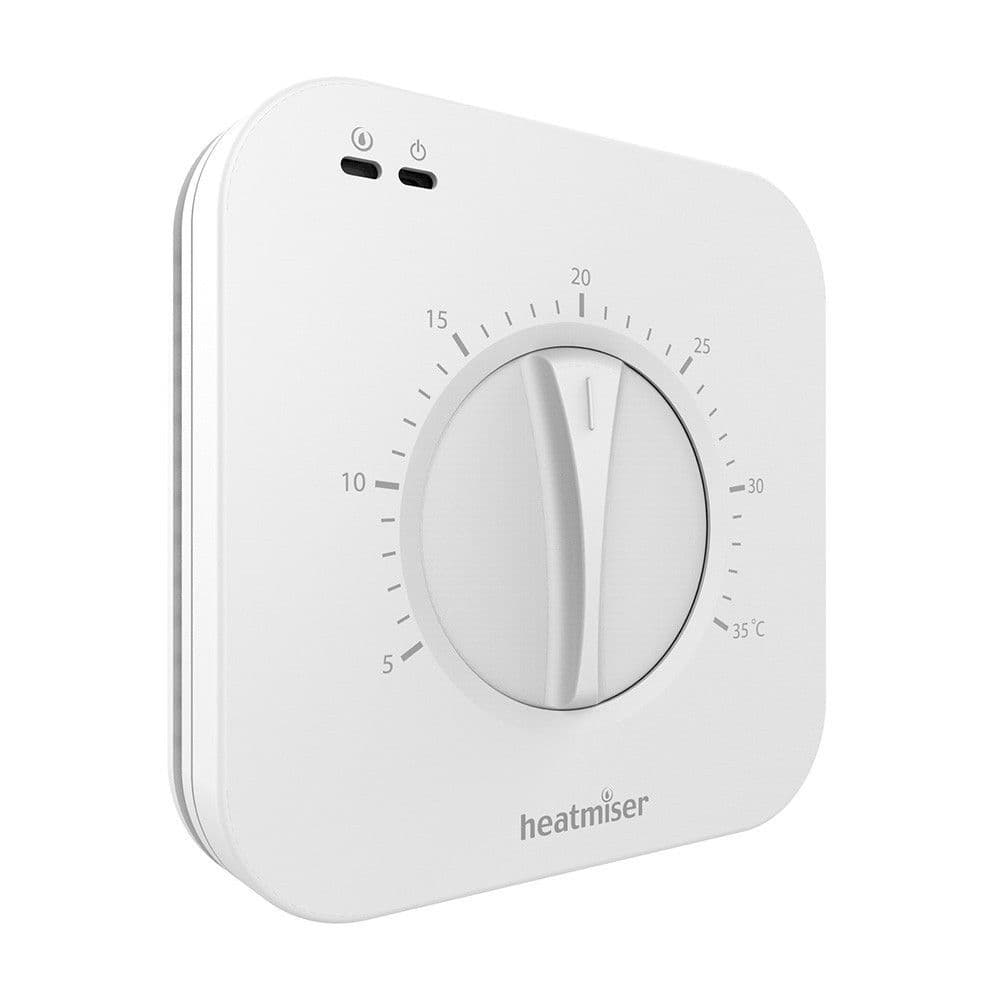

Heatmiser DS1 Manual Thermostat
- Power On & Heat On Indication
- Modern Apperance
- Easily increase or decrease the required temperature
- Variable Switching Differential
- Outputs: Volt free 3A Max
| Dimensions | 92mm x 92mm x 34mm |
|---|---|
| Mounting | Surface mounting |
| Load | 230v |
Heatmiser Slimline Thermostat
- Large Display
- 5/2 Day or 7 Day Programming
- Self Learning Optimum Start
- 4 Comfort Levels per Day
- Temperature Hold Facility
- Holiday Facility
- Automatic Blue Back-Lit Display (Turns off after 30 seconds)
- Flush Mounting
- °C/°F Selectable
- Key Locking
- Frost Protection
- Remote Control Option
| Dimensions | 98mm x 85mm x 13mm |
|---|---|
| Mounting | Flush mounted |
| Load | 12v - volt free 3A Max |
Heatmiser NeoStat Thermostat
- Stunning design incorporating soft touch keys
- Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
- Air, Air & Floor & Floor only sensing modes
- 5 minute program intervals
- Self learning optimum start
- 4 comfort level/ Times per day
- Holiday facility
- Automatic blue back light (turns off after 30 secs)
- Flush mounting
- °C/°F selectable
- Key Code facility
- Frost protection
Fastwarm Wifi
The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.
This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.
Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.
- WIFI Control
- Programmable
- Professional design
- Hold function
- Floor Temperature Limitation
- Power Consumption Monitor (APP)
- Large Screen
| IP rating | IP21 |
|---|---|
| Max Load | 3A |
| Supply voltage | 230v |
