Fastwarm - High Output Clip Track Water Kit
Fastwarm - High Output Clip Track Water Kit
10% off
Wras Approved Product

Fastwarm - High Output Clip Track Water Kit

Fastwarm High Output Clip Track Water Underfloor Heating Kits are designed for installation in high heat loss areas such as conservatories or rooms with many external walls and lots of glass.

Supplied with Fastwarm Clip Track for easy installation within a screed.

Supplied with 1 thermostat to control an individual zone.

Kit sizes range from 10m2 to 80m2

£456.99
Save
£45.00
Our Price
£411.99
each
inc vat
50 Year Pipe Warranty
Thermostat Choice
Made in Europe
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description
Fastwarm 50 Year Pipe Guarantee

Fastwarm® High Output Clip Track Water Underfloor Heating Kits are designed for installation in areas such as conservatories or rooms with multiple external walls and lots of glass etc as pipe centres are @ 200mm spacings. When heating rooms with lower heat loss, our Standard Output systems are more suitable (250mm spacing)

Fastwarm® High Output Clip Track Single Zone systems are designed for use in one Zone (area) and come with only one thermostatic controller - meaning, regardless of how big the area/how many rooms, the system will act as a single unit and be controlled as one zone. For multiple room or zone control we offer the Fastwarm® Multi Zone systems

Utilising Fastwarm 1m Clip Track this option provides an easy to install fixing track where insulation may be at less of a depth. Each clip in which pipe is inserted is spaced at 50mm interval making this and ideal solution for in screed applications.

Fastwarm® Water Underfloor Heating systems are the homeowner and installers perfect choice as each kit comes complete with everything you need for installation. With several choices for thermostat control, the system offers great options for all. Systems come with easy-to-follow installation guides and all pipework carries our lifetime warranty (50yr). We have a fully qualified technical support team on stand by ready to take you're call to assist with any installation queries or technical questions.

Fastwarm® High Output Clip Track Water Underfloor Heating Kits are designed to cover the m2 in pipework when spaced at 200mm spacings.

Fastwarm® Water Kits include FastWarm® branded products including pipework, pump, thermostats, and manifolds guaranteeing our seal of quality. This component brand control ensures the lifetime guarantee that comes with Fastwarm® systems. Many similar systems available on the market are simply unbranded or compiled from OEM parts and therefore cannot offer this same quality control.

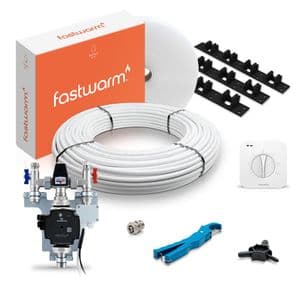

FastWarm® High Output Clip Track kits include the following: -

Fastwarm® Clip Track

Fastwarm® Clip Track

For quickly installing 16mm pipe in any configuration.

Fastwarm® Pert Al Pert 5 Layer Pipework

Fastwarm® Pert Al Pert 5 Layer Pipework

Includes 50 year lifetime guarantee

Fastwarm® Manifold

Fastwarm® Manifold

if 30m2 and above

Grundfos A Rated Pump & Mixing Valve Unit

Grundfos A Rated Pump & Mixing Valve Unit

The compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.

Choice of Thermostat

Choice of Thermostat

We have several thermostats available to fit your budget and lifestyle.

Fastwarm® Pipe Cutter

Fastwarm® Pipe Cutter

Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2) 10 12 14 16
16mm x 1/2" Male Iron 2 2 2 2
Isolation/Ball Valve
Clip Track 15 18 21 24
Eurocones (12mm)
Fill & Drain Valves
Single Circuit Pump & Mixing Valve
Manifold Pump & Mixing Valve Unit
Manifold Ports
Pipe Length (m) 50 60 70 80
Pipe Cutters
Pipe Rounding Tool
Thermostats 1 1 1 1
Kit Size (m2) 18 20 22 24 30
16mm x 1/2" Male Iron 2 2 2 2
Isolation/Ball Valve
Clip Track 27 30 33 36 45
Eurocones (12mm) 4
Fill & Drain Valves
Single Circuit Pump & Mixing Valve
Manifold Pump & Mixing Valve Unit
Manifold Ports 2
Pipe Length (m) 90 100 110 120 150
Pipe Cutters
Pipe Rounding Tool
Thermostats 1 1 1 1 1
Kit Size (m2) 40 50 60 70 80
16mm x 1/2" Male Iron
Isolation/Ball Valve
Clip Track 60 75 90 105 120
Eurocones (12mm) 4 6 6 8 8
Fill & Drain Valves
Single Circuit Pump & Mixing Valve
Manifold Pump & Mixing Valve Unit
Manifold Ports 2 3 3 4 4
Pipe Length (m) 200 250 300 350 400
Pipe Cutters
Pipe Rounding Tool
Thermostats 1 1 1 1 1
Kit Size (m2) 10 12 14 16 18 20 22
16mm x 1/2" Male Iron 2 2 2 2 2 2 2
Isolation/Ball Valve
Clip Track 15 18 21 24 27 30 33
Eurocones (12mm)
Fill & Drain Valves
Single Circuit Pump & Mixing Valve
Manifold Pump & Mixing Valve Unit
Manifold Ports
Pipe Length (m) 50 60 70 80 90 100 110
Pipe Cutters
Pipe Rounding Tool
Thermostats 1 1 1 1 1 1 1
Kit Size (m2) 24 30 40 50 60 70 80
16mm x 1/2" Male Iron 2
Isolation/Ball Valve
Clip Track 36 45 60 75 90 105 120
Eurocones (12mm) 4 4 6 6 8 8
Fill & Drain Valves
Single Circuit Pump & Mixing Valve
Manifold Pump & Mixing Valve Unit
Manifold Ports 2 2 3 3 4 4
Pipe Length (m) 120 150 200 250 300 350 400
Pipe Cutters
Pipe Rounding Tool
Thermostats 1 1 1 1 1 1 1
Kit Size (m2) 10 12 14 16 18 20 22 24 30 40 50 60 70 80
16mm x 1/2" Male Iron 2 2 2 2 2 2 2 2
Isolation/Ball Valve
Clip Track 15 18 21 24 27 30 33 36 45 60 75 90 105 120
Eurocones (12mm) 4 4 6 6 8 8
Fill & Drain Valves
Single Circuit Pump & Mixing Valve
Manifold Pump & Mixing Valve Unit
Manifold Ports 2 2 3 3 4 4
Pipe Length (m) 50 60 70 80 90 100 110 120 150 200 250 300 350 400
Pipe Cutters
Pipe Rounding Tool
Thermostats 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Installation Guide
  1. Select a suitable location for the pump & manifold unit and mount on the wall.
  2. Clipping the 1m sections together to create one continous length space runs at 750mm spacing apart using the self adhesive backing to adhere to the floor.
  3. Lay the pipe as planned, fixing every 150mm or 200mm spacing depending on the system purchase, compressing pipe into the manufactured grippers.
  4. To lay the circuit, cut the pipe end squarely using the plastic pipe cutter, re-round the pipe end with the tool provided, place the nut over the pipe, ensure the olive and insert is fully fitted over the end of the pipe and the assembly is attached to the manifold. Tighten the nut using an open end spanner. Do not over tighten.
  5. Prevent people from walking on the pipes, keep tools etc away from the pipes and use running boards. The pipe is very tough, but it is better to be safe than sorry.
  6. It is IMPORTANT that the underfloor heating system is properly filled with water (use a garden hose) and purged completely of air to ensure correct operation. IT IS NOT ADEQUATE TO FILL THE SYSTEM USING THE BOILER FILLING LOOP!

Product Specification

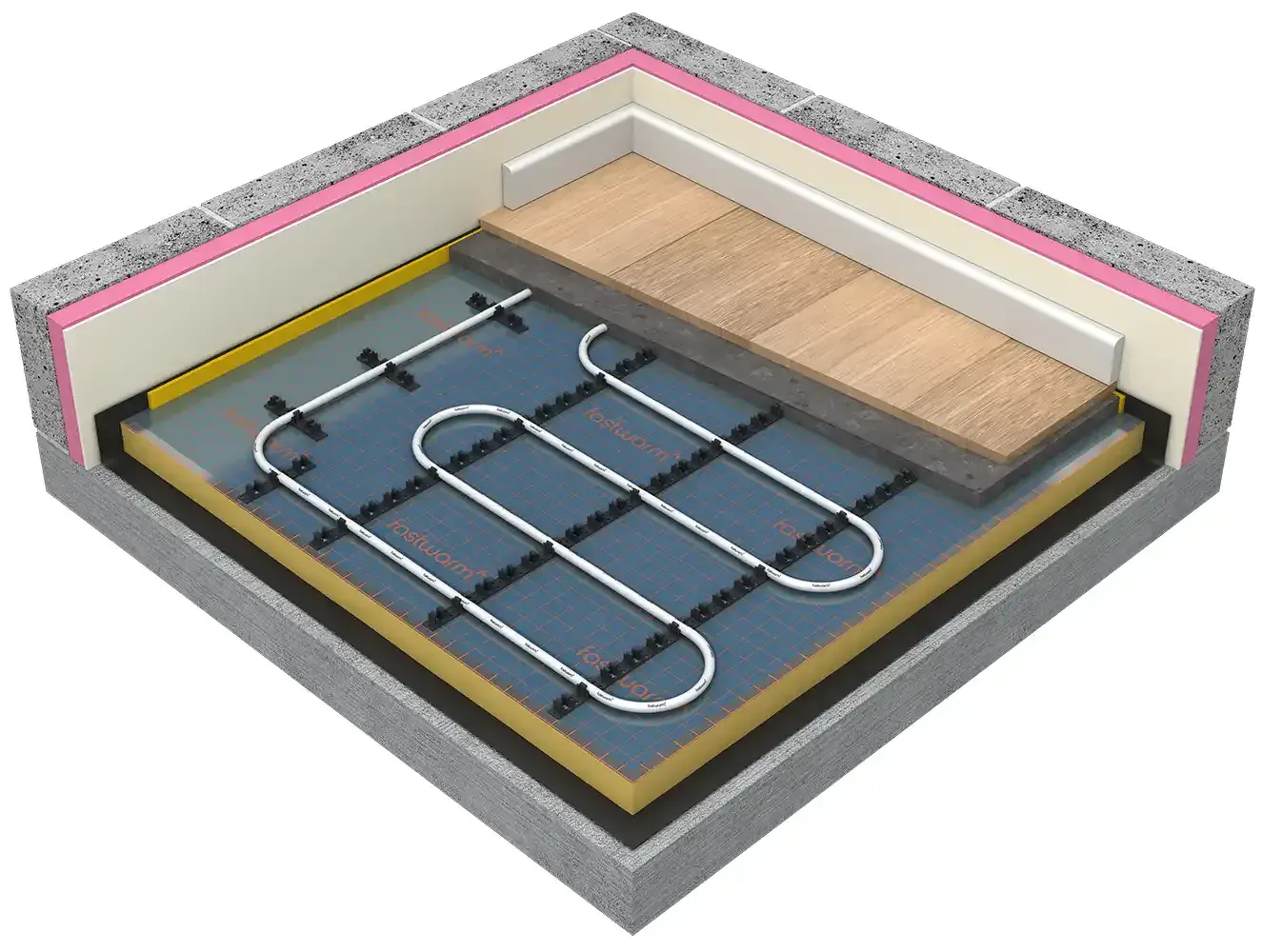

Fastwarm underfloor heating pipe diagram
UFH Pipe Composition
Easy Installation:
The clip rail track features a self-adhesive backing, allowing for quick and hassle-free installation. It can be securely mounted to the subfloor, providing a stable base for the pipework.
Secure Pipework Fixing:
Once the clip rail track is in place, the (15mm/16mm) pipework can be easily clipped into position, ensuring a secure and reliable fixing. This helps to prevent any movement or displacement of the pipework during and after installation.
Optimal Heat Distribution:
By securely holding the pipework in place, the clip rail track ensures that the warm water flows evenly throughout the underfloor heating system. This results in efficient and consistent heat distribution across the entire floor surface.
Quantity Calculation:
The required quantity of clip rail track can be easily determined by multiplying the area in square meters (m2) by 1.5. For example, if you have a floor area of 30m2, you would need 45 clip rail lengths to cover the entire space.

Thermostat Options
Heatmiser DS1 Manual Thermostat

Heatmiser DS1 Manual Thermostat

  • Power On & Heat On Indication
  • Modern Apperance
  • Easily increase or decrease the required temperature
  • Variable Switching Differential
  • Outputs: Volt free 3A Max
Dimensions 92mm x 92mm x 34mm
Mounting Surface mounting
Load 230v
Heatmiser Slimline Thermostat

Heatmiser Slimline Thermostat

  • Large Display
  • 5/2 Day or 7 Day Programming
  • Self Learning Optimum Start
  • 4 Comfort Levels per Day
  • Temperature Hold Facility
  • Holiday Facility
  • Automatic Blue Back-Lit Display (Turns off after 30 seconds)
  • Flush Mounting
  • °C/°F Selectable
  • Key Locking
  • Frost Protection
  • Remote Control Option
Dimensions 98mm x 85mm x 13mm
Mounting Flush mounted
Load 12v - volt free 3A Max
Heatmiser NeoStat

Heatmiser NeoStat Thermostat

  • Stunning design incorporating soft touch keys
  • Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
  • Air, Air & Floor & Floor only sensing modes
  • 5 minute program intervals
  • Self learning optimum start
  • 4 comfort level/ Times per day
  • Holiday facility
  • Automatic blue back light (turns off after 30 secs)
  • Flush mounting
  • °C/°F selectable
  • Key Code facility
  • Frost protection
Fastwarm® Wifi Thermostat

Fastwarm Wifi

The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.

This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.

Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.

  • WIFI Control
  • Programmable
  • Professional design
  • Hold function
  • Floor Temperature Limitation
  • Power Consumption Monitor (APP)
  • Large Screen
IP rating IP21
Max Load 3A
Supply voltage 230v
