Fastwarm 16mm DUO Single Zone Water Underfloor Heating Kits are designed for ultra low profile retro fit installations in 1 Zone (area) and come with only 1 thermostatic controller. Meaning regardless of how big the area/how many rooms, the system will act as 1 and be controlled as one zone.

Fastwarm 16mm DUO are designed for use with 12mm Pipework and can be tiled over directly. Allowing for fast and efficient installation.

Kit sizes range from 20m2 to 120m2

£1,218.99
Save
£121.00
Our Price
£1,097.99
each
inc vat
50 Year Pipe Warranty
Thermostat Choice
Made in Europe
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description
Fastwarm 50 Year Pipe Guarantee

Fastwarm™ 16mm DUO Single Zone Water Underfloor Heating Kits are designed for ultra low profile retro fit installations in one Zone (area) and come with only one thermostatic controller. Meaning regardless of how big the area/how many rooms, the system will act as one and be controlled as one zone. For multiple room or zone control, please refer to the Fastwarm™ Multi Zone systems.

The 16MM FastWarm™ DUO System is an EPS 400 kpA which is a super dense extruded polystyrene which then has a 200micron aluminium diffuser plate fixed using heat resistive glue. Making FastWarm™ DUO the most popular choice for installers and home-owners due to their versatility and multi-purpose application.

The DUO Panel is approved by ULTRA Tile for use with S2 tile adhesive and MSP Primer, meaning tiles can be applied DIRECTLY to the panel. So, no need for levelling compounds or additional fixings prior to installing tiles.

The DUO Panel is also perfect for use in floating floor applications such as laminates or engineered wooden finishes.

FastWarm™ 16mm DUO Water Underfloor heating systems are the homeowner and installers perfect choice as each kits comes complete with everything you need in a box with a multiple of different choice of thermostat control. Systems come with an easy-to-follow installation guide and all pipework comes with lifetime (50yr) guarantee. FastWarm™ also has a fully qualified technical support team available for on-site queries.

These Single zone water underfloor heating kits are designed to cover the m2 in pipework when fitted into the grooves provided NB. Pipe is not provided to get to and from from the heat source.

FastWarm™ Water Kits include FastWarm™ branded products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with FastWarm™ systems. There are many similar systems on the market that are simply unbranded or OEM parts.

Fastwarm™ 16mm DUO Single Zone kits include the following: -

FastWarm™ 16MM DUO EPS400 Boardsk

FastWarm™ 16MM DUO EPS400 Boards

For use with 12mm Pipe

Fastwarm™ PEX AL PEX 12mm Pipework

Fastwarm™ PEX AL PEX 12mm Pipework

Includes 50 year lifetime guarantee

Fastwarm™ Manifold

Fastwarm™ Manifold

Size varies depending on m2 coverage

Grundfos A Rated Pump & Mixing Valve Unit

Grundfos A Rated Pump & Mixing Valve Unit

The ESBE compact T4 thermostatic 4-port pump set is suitable for a maximum output of 18kW.

Choice of Thermostat

Choice of Thermostat

We have several thermostats available to fit your budget and lifestyle.

Fastwarm™ Pipe Cutter

Fastwarm™ Pipe Cutter

Suitable for PVC, PP, PPR and PE pipe. Ideal for fitting MDPE and PEX pipes. Cutting capacity 36mm.

Kit Content Comparison Table

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2)20304050
Pipe Length (m)160240320400
Isolation/Ball Valve
DUO 16mm28425670
Eurocones (12mm)46810
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Cutters
Pipe Rounding Tool
Manifold Ports2345
Kit Size (m2)60708090
Pipe Length (m)480560640720
Isolation/Ball Valve
DUO 16mm8498112125
Eurocones (12mm)12141618
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Cutters
Pipe Rounding Tool
Manifold Ports6789
Kit Size (m2)100110120
Pipe Length (m)800880960
Isolation/Ball Valve
DUO 16mm139153167
Eurocones (12mm)202224
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Cutters
Pipe Rounding Tool
Manifold Ports101112
Kit Size (m2)203040506070
Pipe Length (m)160240320400480560
Isolation/Ball Valve
DUO 16mm284256708498
Eurocones (12mm)468101214
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Cutters
Pipe Rounding Tool
Manifold Ports234567
Kit Size (m2)8090100110120
Pipe Length (m)640720800880960
Isolation/Ball Valve
DUO 16mm112125139153167
Eurocones (12mm)1618202224
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Cutters
Pipe Rounding Tool
Manifold Ports89101112
Kit Size (m2)2030405060708090100110120
Pipe Length (m)160240320400480560640720800880960
Isolation/Ball Valve
DUO 16mm284256708498112125139153167
Eurocones (12mm)4681012141618202224
Fill & Drain Valves
Manifold Pump & Mixing Valve Unit
Pipe Cutters
Pipe Rounding Tool
Manifold Ports23456789101112

Installation Guide

Thermostat Options

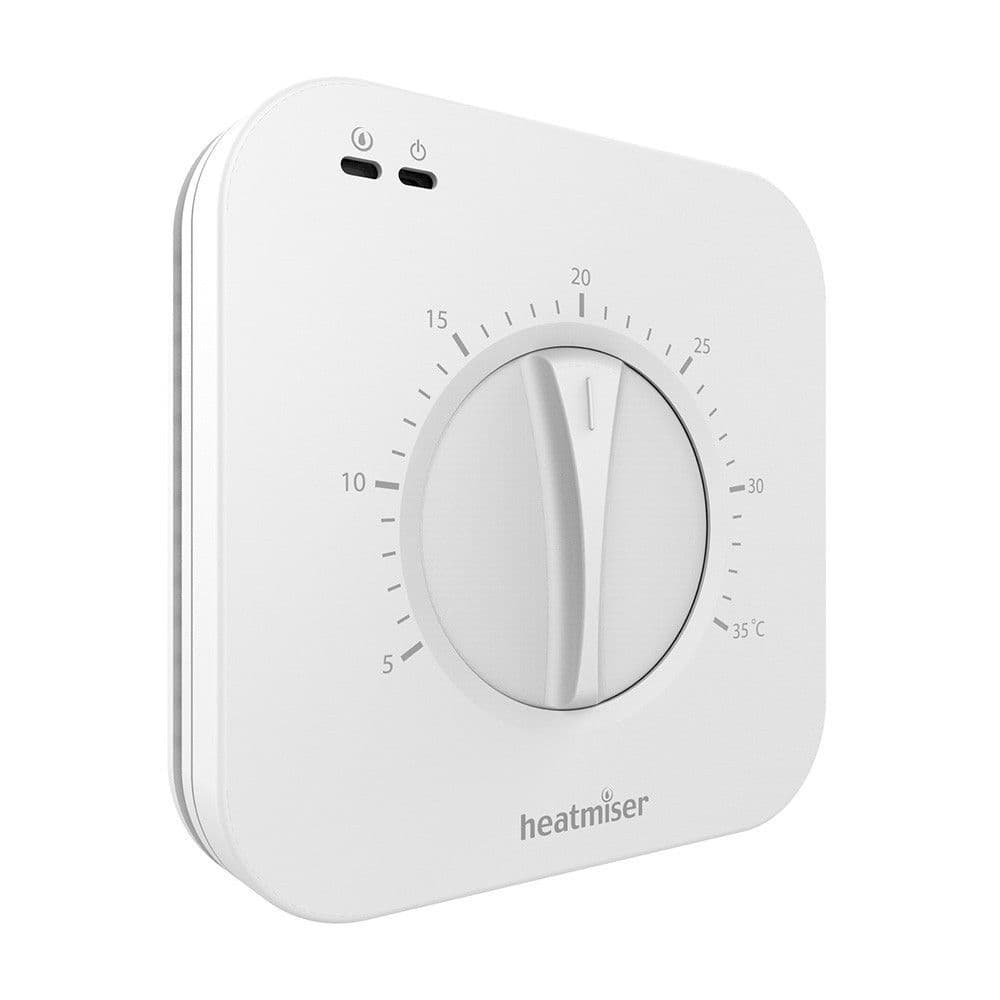

Heatmiser DS1 Manual Thermostat

Heatmiser DS1 Manual Thermostat

  • Power On & Heat On Indication
  • Modern Apperance
  • Easily increase or decrease the required temperature
  • Variable Switching Differential
  • Outputs: Volt free 3A Max
Dimensions 92mm x 92mm x 34mm
Mounting Surface mounting
Load 230v
Heatmiser Slimline Thermostat

Heatmiser Slimline Thermostat

  • Large Display
  • 5/2 Day or 7 Day Programming
  • Self Learning Optimum Start
  • 4 Comfort Levels per Day
  • Temperature Hold Facility
  • Holiday Facility
  • Automatic Blue Back-Lit Display (Turns off after 30 seconds)
  • Flush Mounting
  • °C/°F Selectable
  • Key Locking
  • Frost Protection
  • Remote Control Option
Dimensions 98mm x 85mm x 13mm
Mounting Flush mounted
Load 12v - volt free 3A Max
Heatmiser NeoStat

Heatmiser NeoStat Thermostat

  • Stunning design incorporating soft touch keys
  • Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
  • Air, Air & Floor & Floor only sensing modes
  • 5 minute program intervals
  • Self learning optimum start
  • 4 comfort level/ Times per day
  • Holiday facility
  • Automatic blue back light (turns off after 30 secs)
  • Flush mounting
  • °C/°F selectable
  • Key Code facility
  • Frost protection
Fastwarm® Wifi Thermostat

Fastwarm Wifi

The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.

This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.

Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.

  • WIFI Control
  • Programmable
  • Professional design
  • Hold function
  • Floor Temperature Limitation
  • Power Consumption Monitor (APP)
  • Large Screen
IP rating IP21
Max Load 3A
Supply voltage 230v
