UH10
Fastwarm - 10 Zone Wiring Centre
Fastwarm - 10 Zone Wiring Centre
30% off

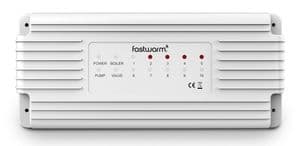

Fastwarm - 10 Zone Wiring Centre

Introducing the Fastwarm 10-Port Underfloor Heating Wiring Centre: Your Solution for Effortless Control and Connectivity!

£69.99
Save
£21.00
Our Price
£48.99
each
inc vat
For delivery by order within...
0 DAYS
:
0 HOURS
:
0 MINS
:
0 SECS

Product Description

Introducing the Fastwarm 10-Port Underfloor Heating Wiring Centre: Your Solution for Effortless Control and Connectivity!

Elevate your underfloor heating system with our cutting-edge 10-port wiring centre. Designed to streamline and simplify the management of your heating setup, this wiring centre revolutionizes the way you control and monitor your underfloor heating system.

Key Features:

Centralized Control Hub:
Our 10-port wiring centre serves as the command center for your underfloor heating system. With a single, organized location for all your wiring connections, troubleshooting and adjustments become a breeze.
Intuitive Wiring Layout:
Enjoy easy installation with a clearly labeled and well-organized wiring layout. Our user-friendly design ensures hassle-free setup.
Enhanced Connectivity:
The wiring centre accommodates up to 10 zones, enabling you to efficiently manage multiple areas or rooms independently. Achieve tailored comfort levels for each space with individual temperature controls.
Compatibility with Thermostat Systems:
Seamlessly integrate with various thermostat systems for seamless control. Whether you prefer traditional thermostats or advanced smart controls, our wiring centre supports your preferences.
Reliable Circuit Protection:
Safeguard your underfloor heating system with built-in circuit protection mechanisms. Rest easy knowing that your system is shielded from electrical surges and potential damage.
Durable Build Quality:
Crafted from high-quality materials, our wiring centre ensures long-term durability and reliability. Enjoy years of worry-free operation in any environment.
Space-Saving Design:
The compact form factor of our wiring centre maximizes space efficiency, making it suitable for installations in various settings, from residential homes to commercial spaces.
Central Heating Control:
Zone 10 can be opted for use to control you radiator valve simplifying wiring for you entire homes heating system

Upgrade your underfloor heating system's control and management capabilities with our 10-port wiring centre. Whether you're looking to enhance energy efficiency, achieve personalized comfort, or simply simplify the management of your system, our advanced solution caters to your needs. Embrace the future of underfloor heating control – order now and experience a new level of convenience and connectivity!

Installation Guide

Fastwarm Wiring Centres can be mounted directly to a wall using four screws or alternatively, the unit can be DIN rail mounted.

  1. Remove cover screws to expose wiring terminals.
  2. Fix wiring centre to wall using screws and raw plugs at each fixing point.
  3. Refer to install manual for wiring configuration of you underfloor heating pump, valve, actuators and thermostats.
  4. Apply cover and screws to finalise you system.

Should you require any assistance please contact our highly experience Technical team on 01268 744 479

Product Specification
Number of Heating Zones 10 ( Zone 10 can be used for Radiators)
Number of Hot Water Zones 0
LED Indication Yes
Fixing Method Wall Mounting or DIN Rail Mounted
Supply 230v AC 1 Phase
Total Load 5A
IP Rating IP20
Product Dimension ( L,H,D ) 320mm x 140mm x 55mm

Fastwarm 10 Zone Wiring Centre are for use with 230v thermostats, to control any 230v normal closed thermal actuator for multi zone control. Fastwarm 10 Zone Wiring Centre offers a volt free terminal to operate the heat source such as boilers and heat pumps. Additional outputs designed for use with underfloor heating systems are also included such as 230v terminals for the underfloor pump and underfloor heating motorized valve.

Zone 10 can be used as an isolated radiator zone, by using the UFH/RAD switch. If the switch is set to RAD; When Zone10 calls for heat this will provide an output to a radiator zone valve and the boiler, but WILL NOT enable the under-floor heating pump/valve output. If the switch is set to UFH; When Zone 10 calls for heat, this will act as an underfloor heating zone, by enabling the actuator, boiler and pump/valve outputs. Any output which is not needed can be ignored.
